Price:
Negotiable
Model:
XY-NGU-21C
Power:
6.5KW
Application:
Handkerchief paper folding machine
Weight:
1 ton
Output:
Handkerchief paper
Packaging Dimension:
3851×650×1380mm(L×W×H)
Machine Size:
Place of Origin:
CHINA.
Certification:
CE, ISO

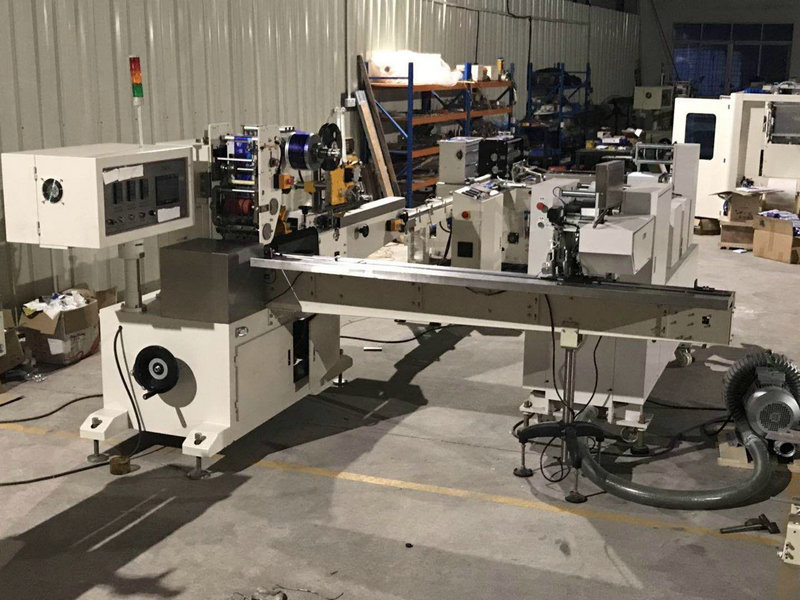

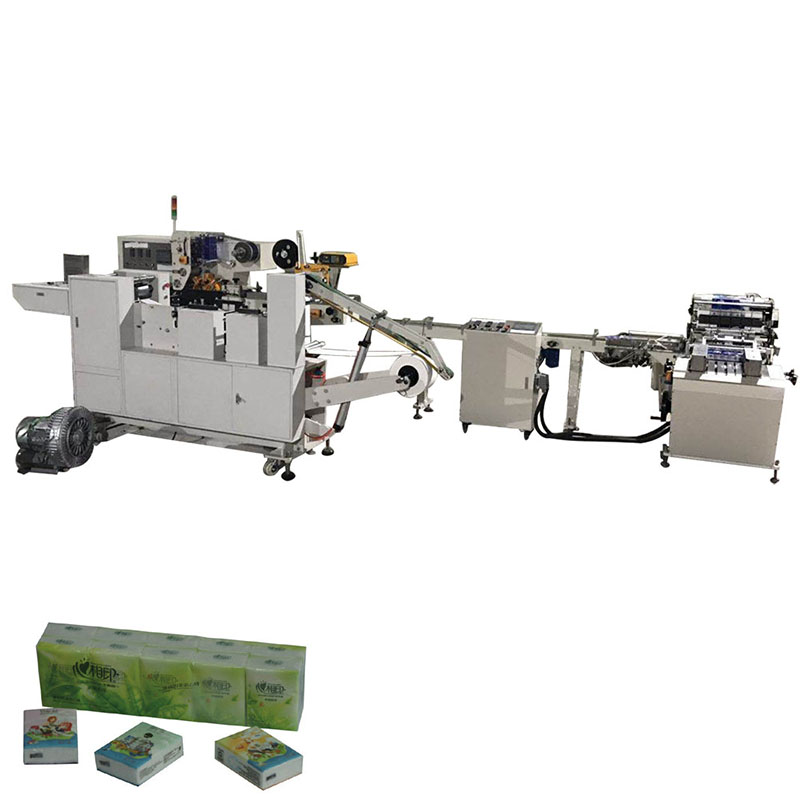

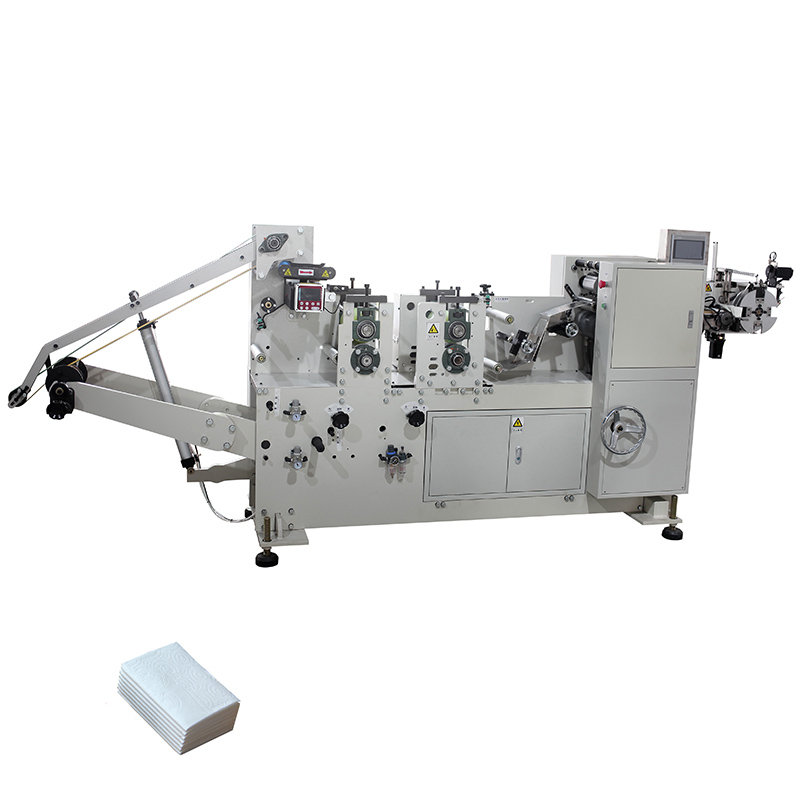

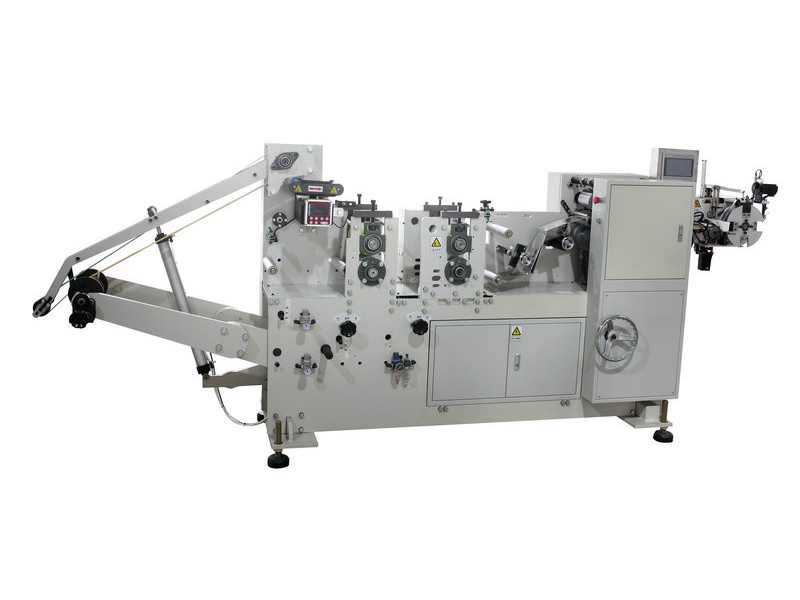

This pocket tissue folding machine is designed for converters who need a compact, reliable line to produce portable miniature handkerchief tissue. It combines vacuum adsorption, embossing, cutting, and automatic folding in one unit, delivering finished products that are easy to carry and ready for individual packing.
If you are producing small-format facial tissue for on-the-go use, this machine addresses the core converting steps from jumbo roll to folded product. It is suited for buyers who want a straightforward, space-efficient solution without sacrificing fold consistency or embossing clarity.
The rewind tension system adapts to variations in paper material tension, helping maintain stable unwinding and consistent converting even when parent roll quality fluctuates.
The folding device is designed for reliable positioning, producing uniform finished product sizes batch after batch.
Embossing produces clear, defined patterns on the tissue. Embossed designs are selected by the client, allowing you to customize the final product appearance.
The machine can be adapted to manufacture various product models according to user requirements, offering configuration flexibility for different market needs.
| Parameter | Value |
|---|---|
| Unfold size of finished products | 210X210±2mm |
| Folded size of finished products | (75-105)X53±2mm |
| Diameter of raw paper | 1100 mm |
| Width of raw paper | 150-210 mm |
| Production speed | 400-600 piece/min |
| Machine power | 1.5KW |
| Vacuum system | 3KW |
| Overall Dimension | 3500X1000X1300 mm |
| Weight | 1000kg |
Final configuration, including embossing pattern selection and specific product model adaptations, should be confirmed with our engineering team based on your target finished tissue specifications.
The machine accepts jumbo roll widths from 150 to 210 mm, with a maximum roll diameter of 1100 mm.
Yes, embossed designs are selected by the client. The machine uses a single embossing unit (steel to rubber) and the embossing design is supplied by the user.
The production speed ranges from 400 to 600 pieces per minute, depending on material and configuration.
Contact our sales team to confirm the machine configuration for your target pocket tissue size, embossing pattern, and line integration requirements. We can provide detailed specifications and packing information.
| Parameter | Specification |
|---|---|
| Separator Speed | 600 PCS/min |
| Programming Control | PLC |
| Parameter Setting | Touch screen |
| Speed Control | Frequency converter |
| Raw Material | 13–25 gsm, 1–3 plies |
| Jumbo Roll Width | 210 mm |
| Jumbo Roll Outer Diameter | 1100 mm |
| Jumbo Roll Core Inner Diameter | 76.2 mm |
| Braking | Pneumatic |
| Embossing Unit | Single embossing (steel to rubber, stamp designed by user) |
| Vacuum Pump | 5.5 kW, 380 V, 50 Hz |
| Finished Product Unfolded Size | 210 × 210 mm |
| Finished Product Folded Size | 102 × 52 mm and 72 × 52 mm |
| Main Transmission | Chain and chain wheel transmission |
| Power | 0.75 kW, 380 V, 50 Hz |
| Pneumatic System Pressure | 6 kg/cm² (user supplied) |
| Counter | Electronic counter |
| Overall Dimensions (L × W × H) | 3851 × 650 × 1380 mm |
| Approximate Weight | 1 ton |
The raw material from jumbo roll undergoes the following processing steps:
1. Color Printing (Optional): The material is first fed into the color printing unit, where multi-layered color patterns (e.g., batik or overlay designs) can be applied.
2. Embossing & Folding: The printed material is then embossed with textures and folded into handkerchief paper format.
3. Separation & Packaging: A separating unit divides the finished handkerchiefs into distinct sets for packaging.
