Price:
Negotiable
Model:
XY-GU-20A
Power:
25.5KW
Application:
High speed facial tissue paper making machine
Weight:
2.5 tons
Output:
soft facial tissue paper
Packaging Dimension:
6500*2000*2100mm
Machine Size:
Certification:
CE, ISO

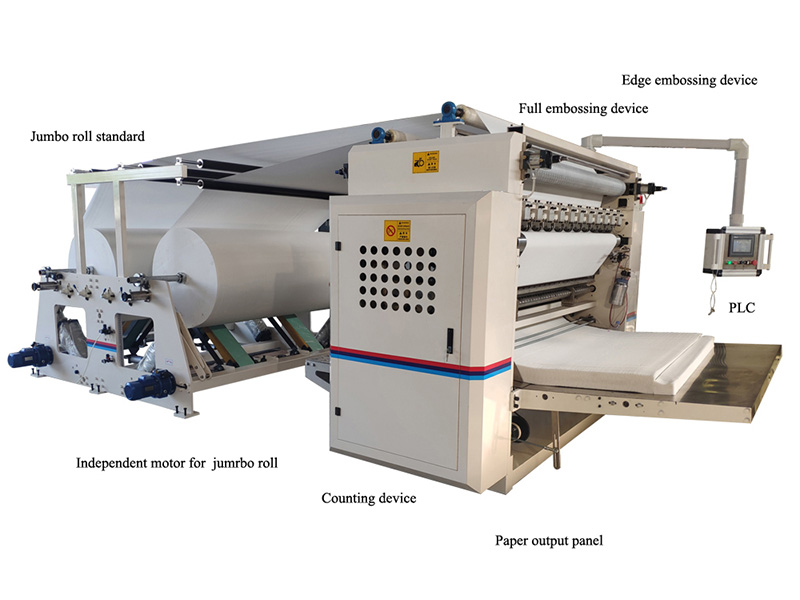

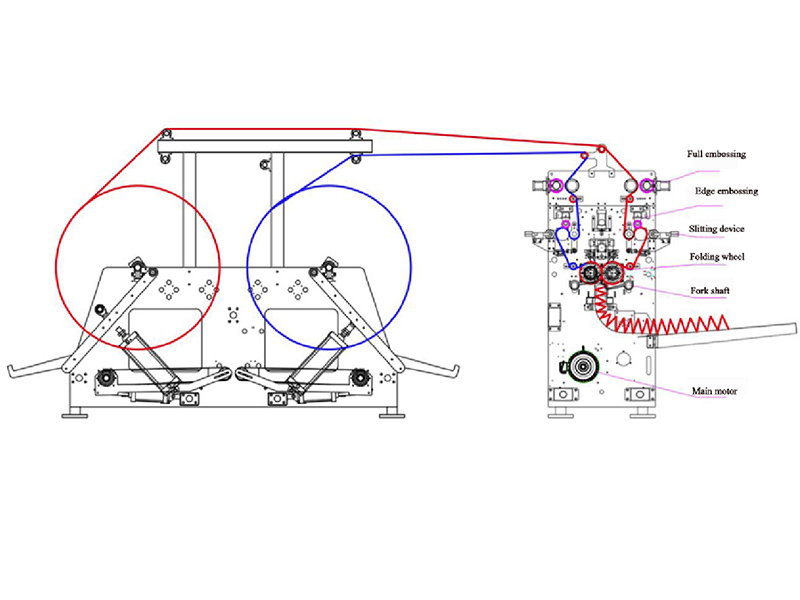

Facial Tissue Folding Machine Overview

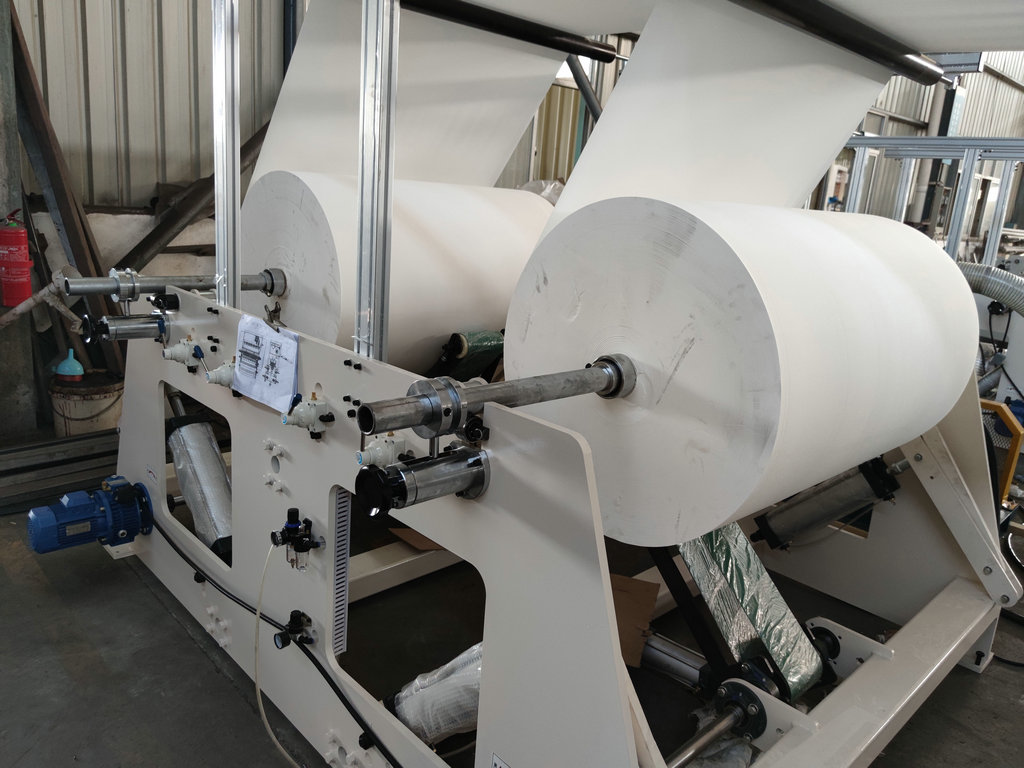

1. Jumbo Roll stander with 2 units
2. Paper Tension Control system

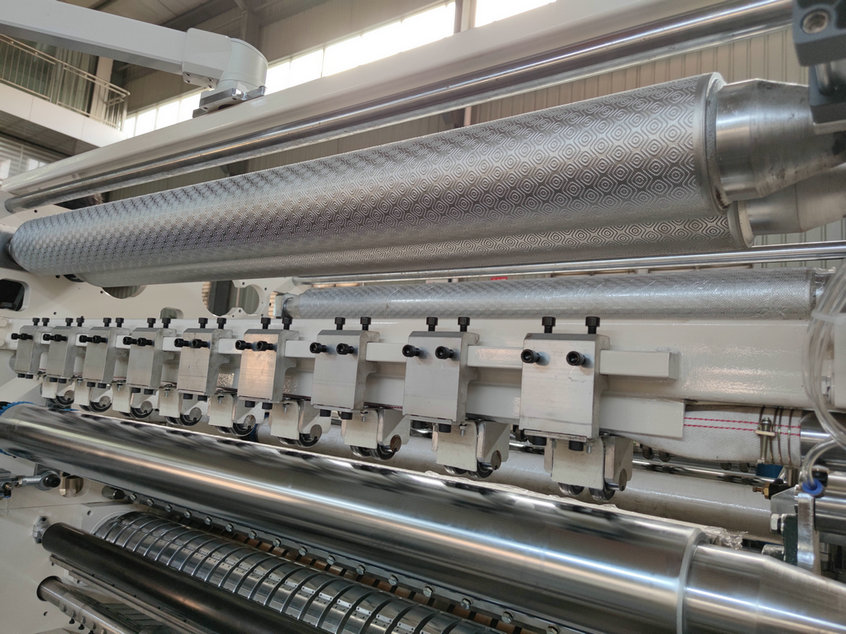

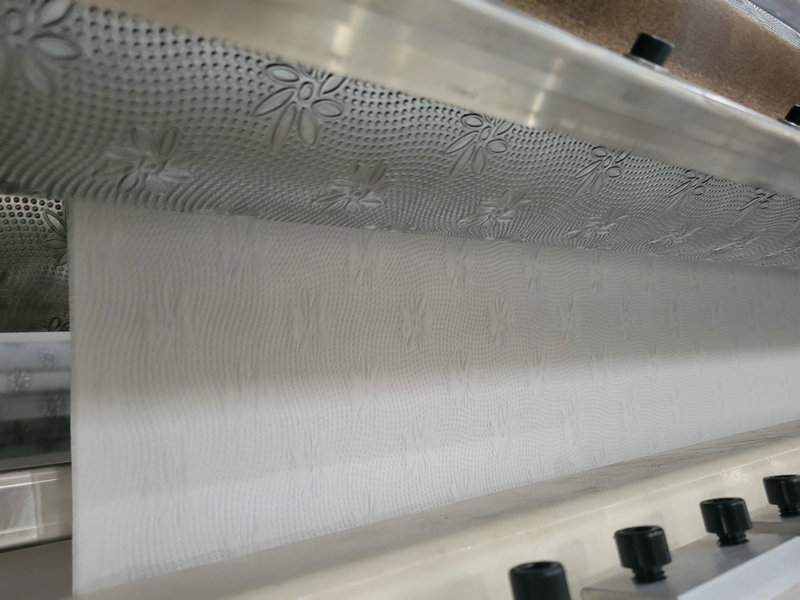

3. Embossing roll pattern design customize

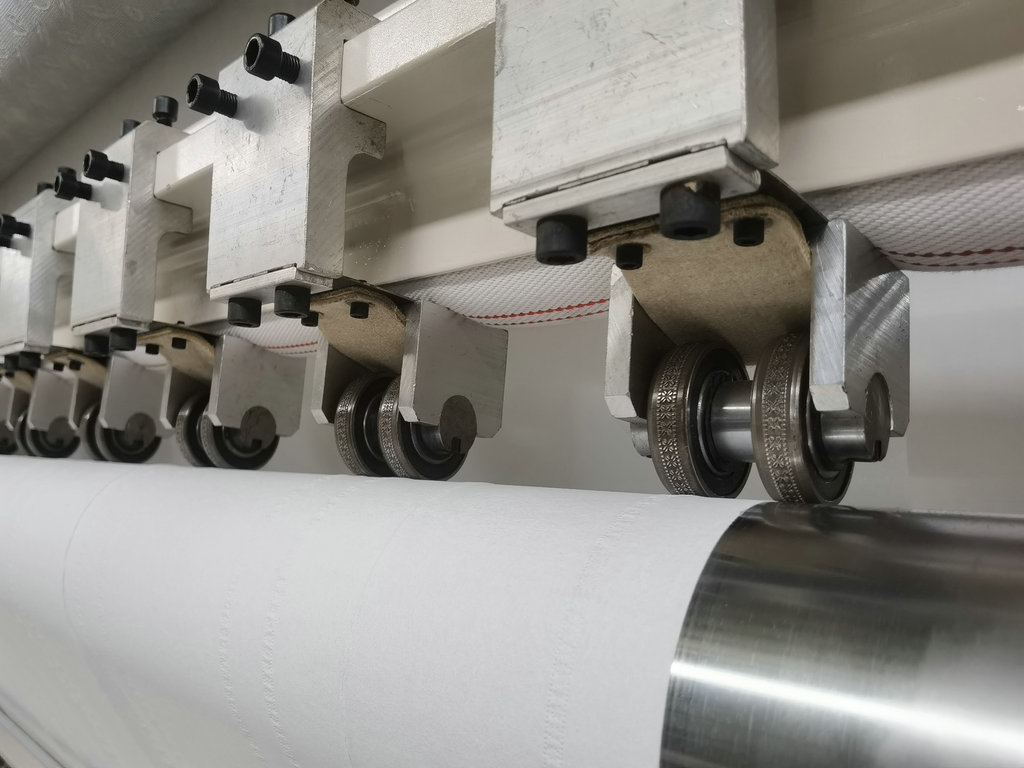

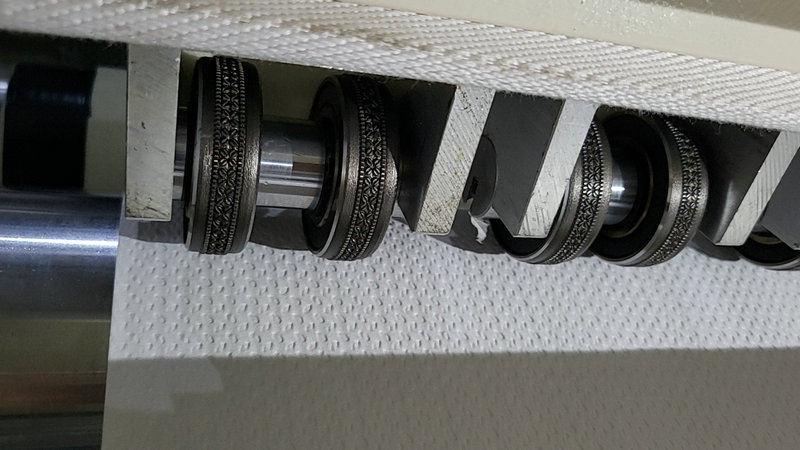

4. Edge Embossing roll assistance
5. Digital Counting sensors readout
6. Product Output panel

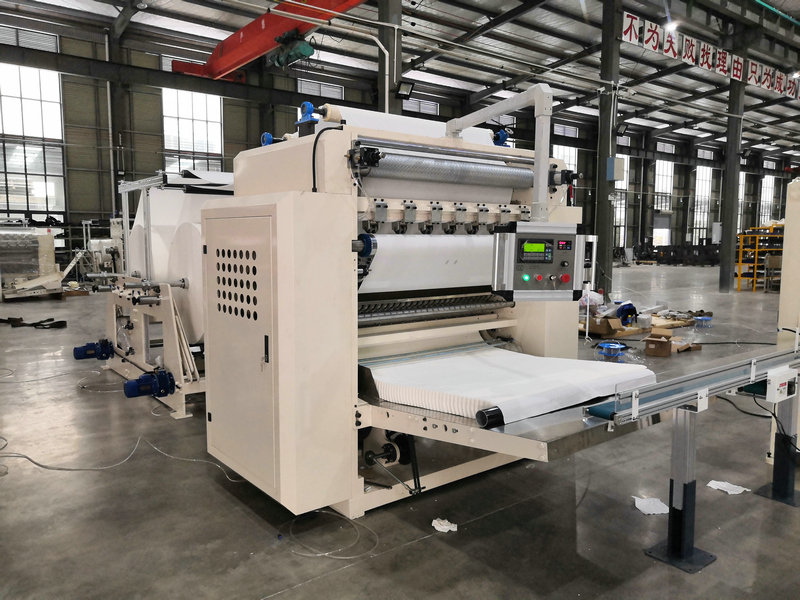

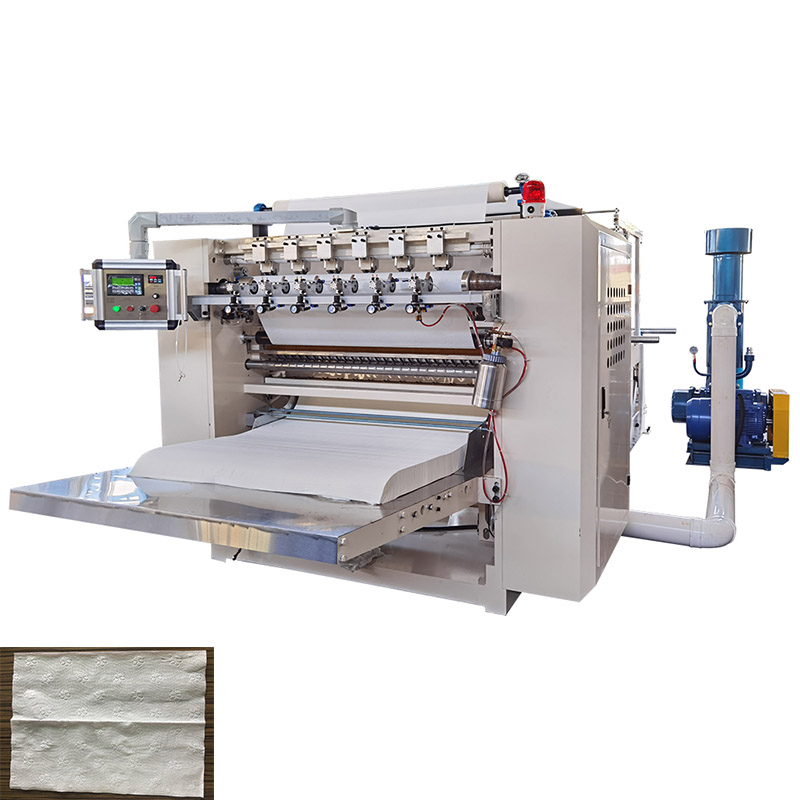

This fully automatic facial tissue processing equipment is designed to transform jumbo rolls of tissue paper into neatly folded "V"-type products.
It integrates advanced vacuum adsorption technology with precise folding, ensuring high efficiency and consistency in production.

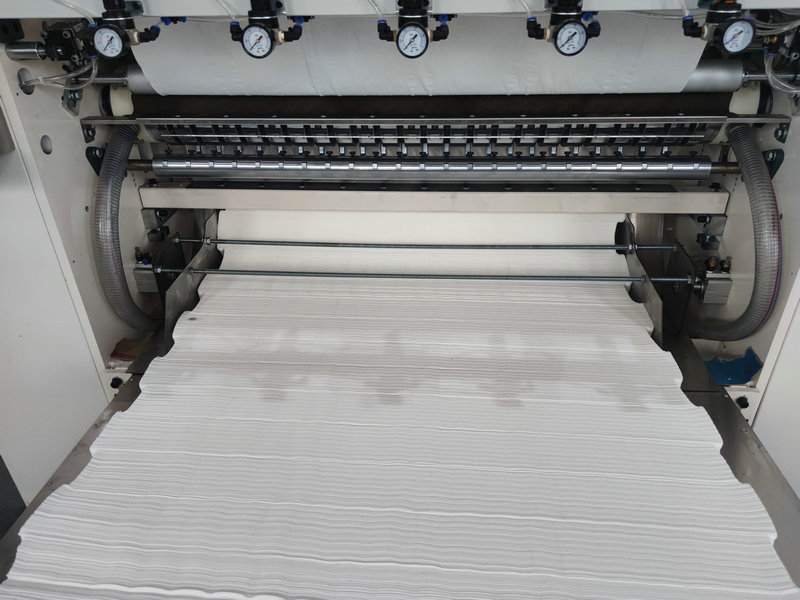

1. Vacuum-Assisted Folding System
Utilizes vacuum adsorption to stabilize and align tissue sheets before folding, minimizing wrinkles and misalignment.
Robotic manipulators assist in the folding process, enhancing accuracy and speed.

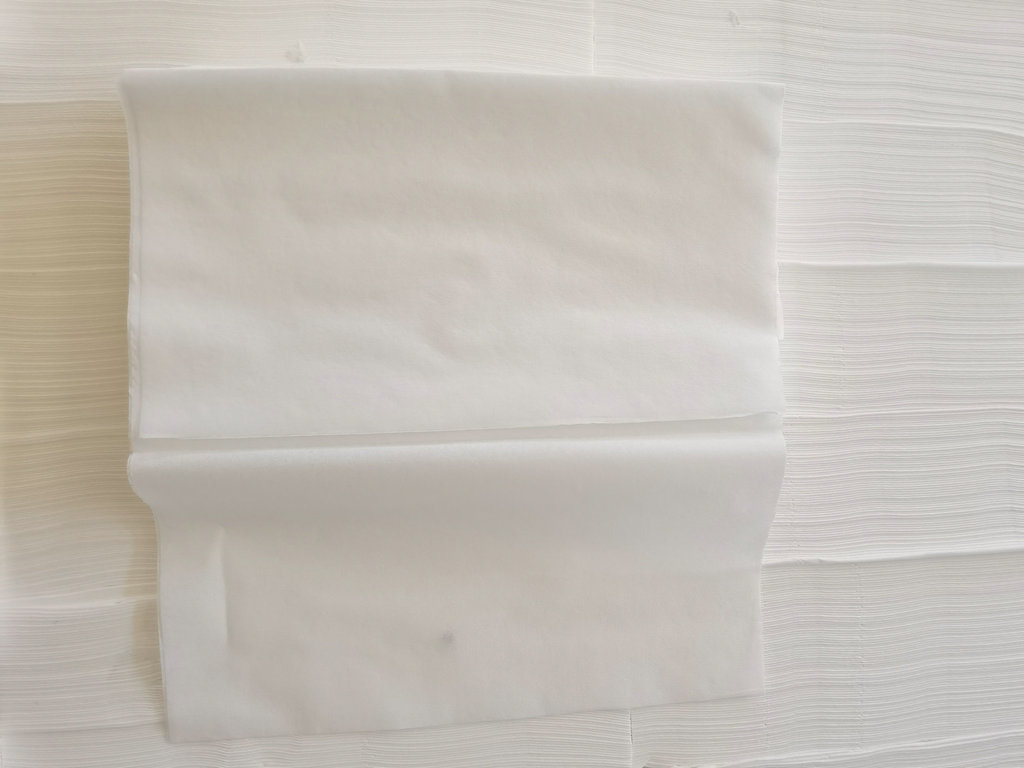

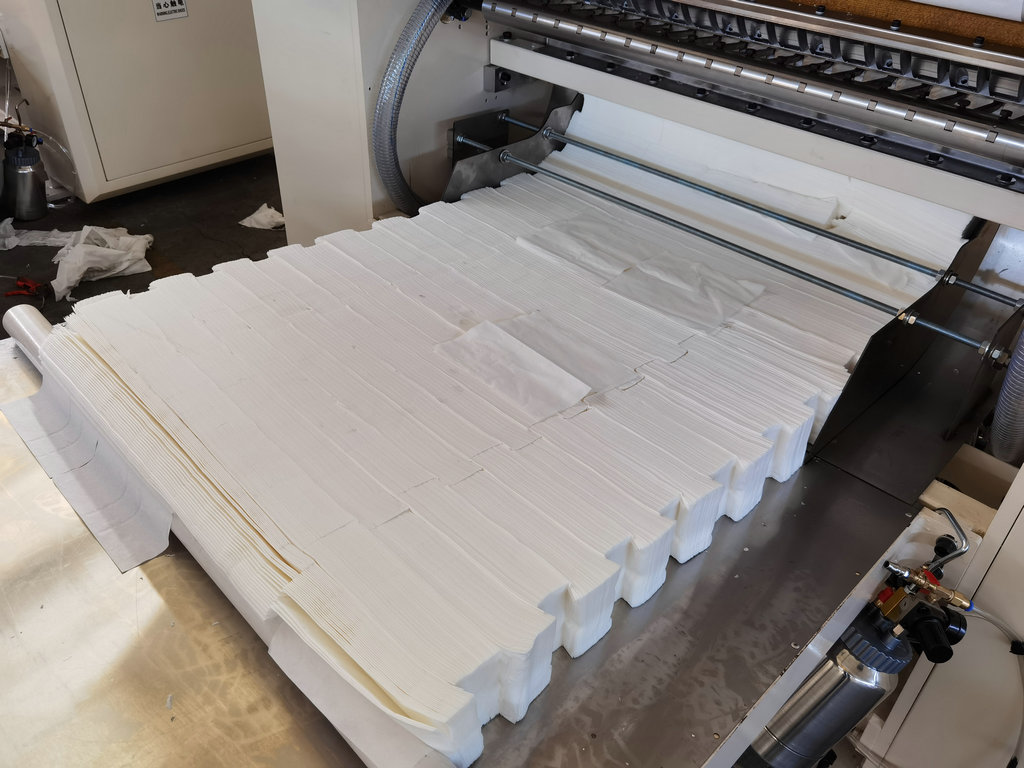

2. "V"-Type Folding Capability
Processes tissue into single-layer or multi-ply "V"-folds, ideal for dispensers or packaged towels.
Optional two-layer glue lamination for reinforced products (e.g., industrial wipes).
3. Automated Control & Safety
PLC programming ensures seamless operation with pneumatic paper feeding.
Equipped with safety guards, emergency stops, and CE/UL-certified electrical components for compliance.
|
Machine Model |
XY-GU-20A |
|
Design Product Capacity |
800-1000 sheets/line/minute |
|
Jumbo Roll Size |
400-1600mm(W) 1200mm(Ø) |
|
Jumbo Roll Material Qualify |
Paper Basic Weight: 14~16 gsm x 2ply Paper Material:100% pure paper Jumbo Roll Paper Core: 3 inches |
|
Interfold Style |
V Fold |
|
Unfold Dimension |
200mm(L)x200mm(W) |
|
Interfold Dimension |
100mm(L)x200mm(W) |
|
Controlling System |
Frequency drive |
|
Air compressor |
Prepared by buyer |
|
Power |
25.5 KW (380V 50Hz 3 Phase) |
This production line consists of : XY-GU-20A Automatic transfer Facial Tissue Paper Folding Machine, XY-GU-281 High Speed Facial Tissue Cutting Machine XY-GU-388 Automatic...
Main functions This advanced production line processes jumbo rolls by first slitting them to the required width using precision cylinders, then converting them into perfectly interfo...
1. XY-GU-20A Automatic Transfer Facial Tissue Folding Machine 2. XY-GU-281 High Speed Facial Tissue Cutting Machine 3. XY-BT-298 Automatic Facial Tissue Bag Packing Machine 4.XY-GU-388...
Napkin Tissue Paper Folding Machine is to cut through the paper tray after embossing and automatically folded into a square or rectangular-shaped napkin open. Clear and bright overlay a...

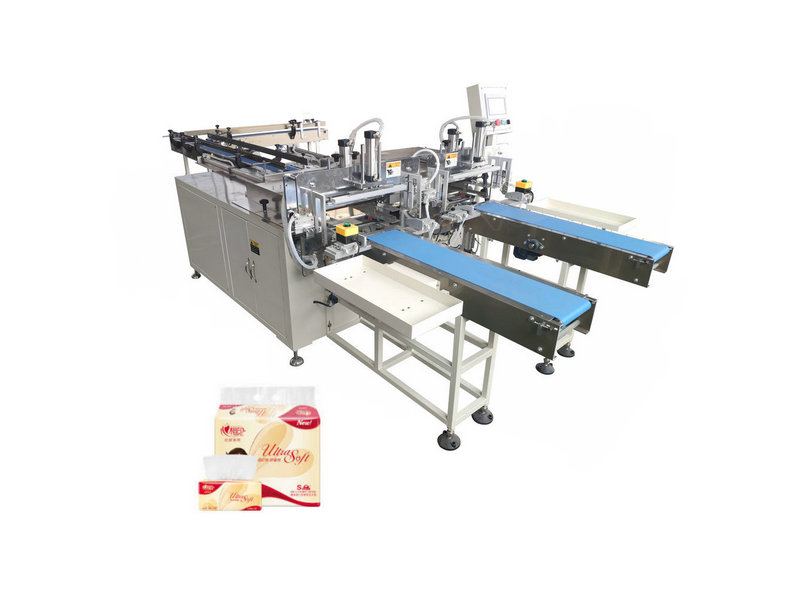

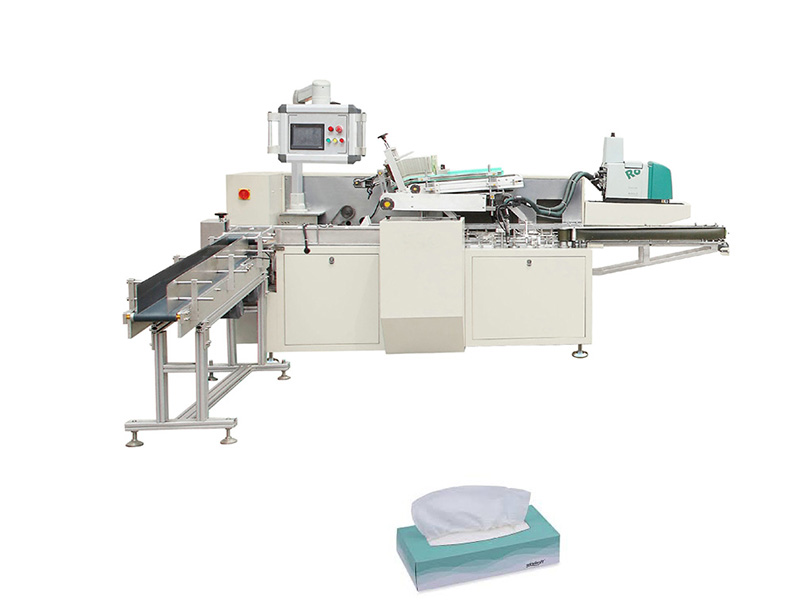

XY-BT-298 120mm height serviette paper three dimensional packaging machine High speed fully automatic facial tissue single wrapping machine is suitable for automatically packi...
XY-OQ-7000A 240mm tissue paper napkin making machine Embossing Napkin Folding Machine is to cut through the paper tray after embossing and automatically folded into a square or rect...
