Hanging Type Automatic Bottom Drawing Facial Tissue Paper Making Machine

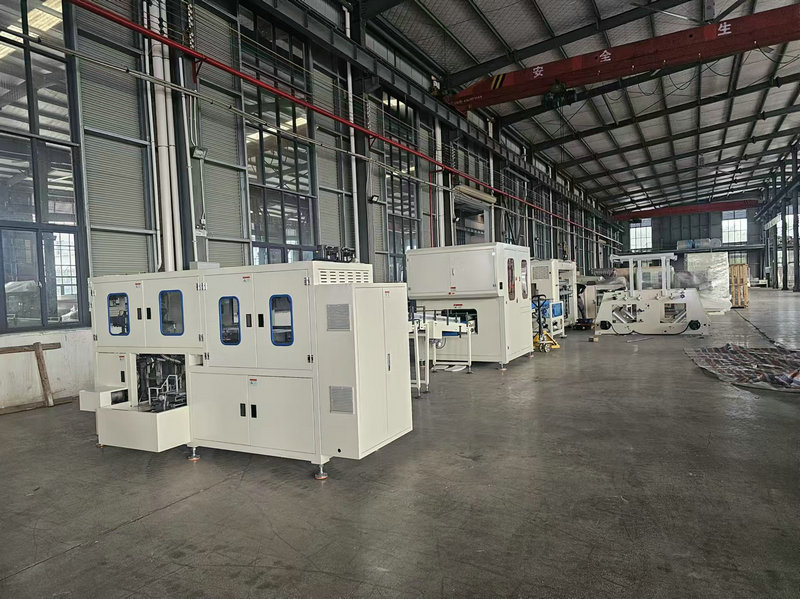

Hanging Type Facial Tissue Production Line Overview

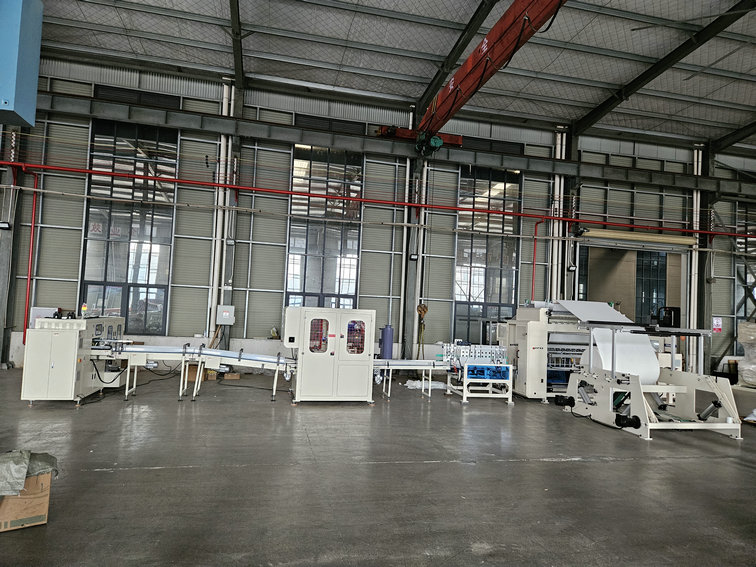

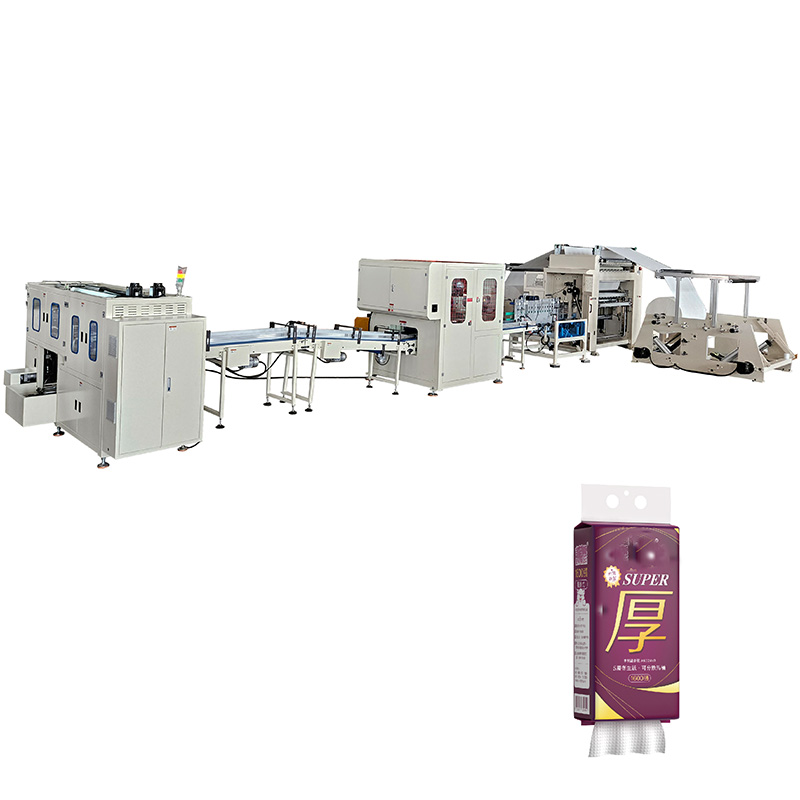

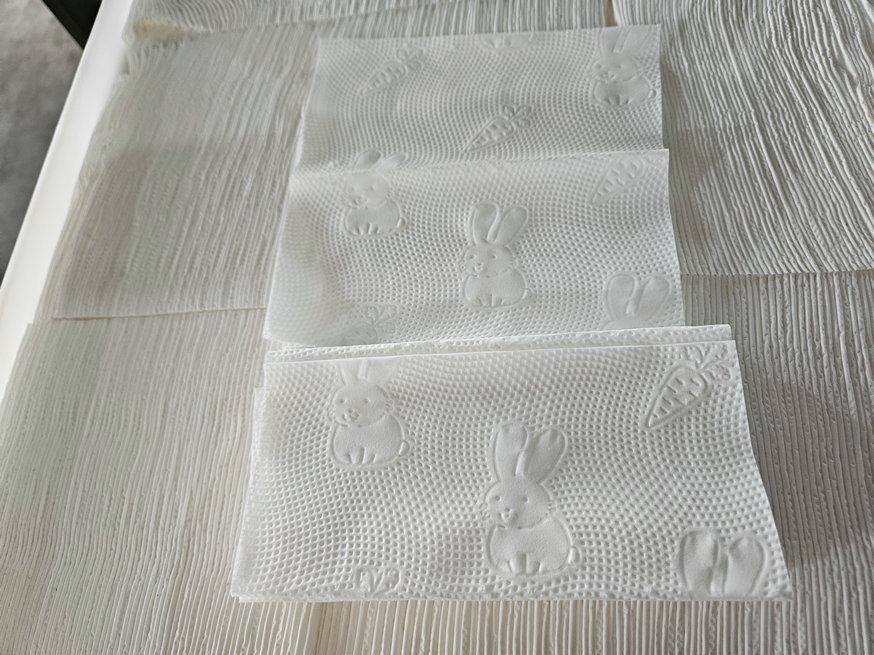

This production line is designed for manufacturers producing facial tissue in a hanging or bottom-drawing format, commonly used for boxed and bagged facial tissues. The line integrates three core machines: a folding machine, a log saw cutting machine, and a packing machine. Each unit is engineered to work in sequence, supporting a continuous converting process from parent jumbo rolls to finished, packed facial tissue products.

Below is a breakdown of each machine's role, key features, and how they connect to form a complete production solution.

1. XY-GU-20A Automatic Transfer Hang Style Facial Tissue Folding Machine

This is the first stage of the line, where parent rolls are converted into folded facial tissue stacks. The machine uses a vacuum adsorption folding mechanism to create the distinctive hanging or interfolded format.

Key Features and Functions

• Main Structure: Wallboard-type structure for stability and reduced vibration during high-speed operation.
• Counting Method: Employs a high-resolution encoder for accurate sheet counting and consistent stack sizes.
• Folding Mechanism: Utilizes vacuum adsorption folding to handle thin facial tissue paper gently and precisely.
• Paper Break Detection: Equipped with a detection system that automatically stops the machine upon a paper break, minimizing raw material waste.
• Jumbo Roll Transfer: Each jumbo roll stand is controlled by an independent motor, allowing for precise tension control and easier roll changes.
• Safety Protection: Main transmission components are enclosed with protective covers for operator safety.

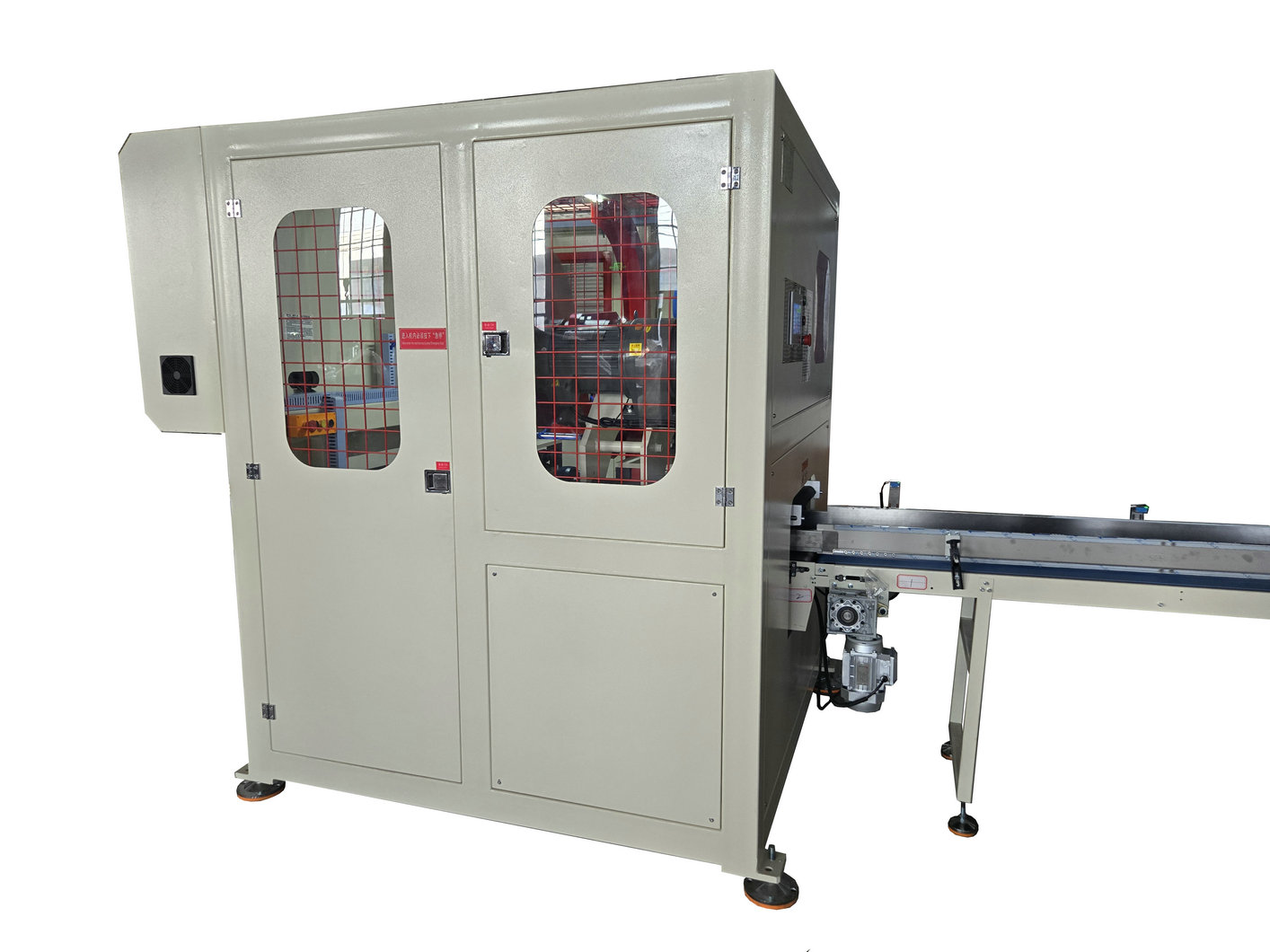

2. XY-GU-281 Automatic Hang Style Facial Tissue Log Saw Cutting Machine

This machine receives the continuous log produced by the folding machine and cuts it into precise, individual facial tissue stacks. It is a critical step for ensuring uniform product dimensions.

Key Features and Functions

• Cutting Speed: Operates at a speed of 150-180 cuts per minute, depending on the length of the paper log.
• Control System: Features a PLC program control with servo drives and a touch screen interface for easy operation and parameter setting.
• Feeding Mechanism: Uses a servo drive with synchronous belt positioning for accurate and stable log feeding.
• Cutting Method: Employs a 360° rotational motion for continuous cutting, ensuring high efficiency.
• Head & Tail Removal: Includes an automatic system to cut off and remove paper head and tail waste (typically 10-20mm), controlled via the PLC.
• Cutting Accuracy: Maintains a cut-off error range of less than 1mm for consistent product quality.
• Knife Grinding: Features an automatic knife grinding system with parameters set via the touch screen, reducing maintenance downtime.

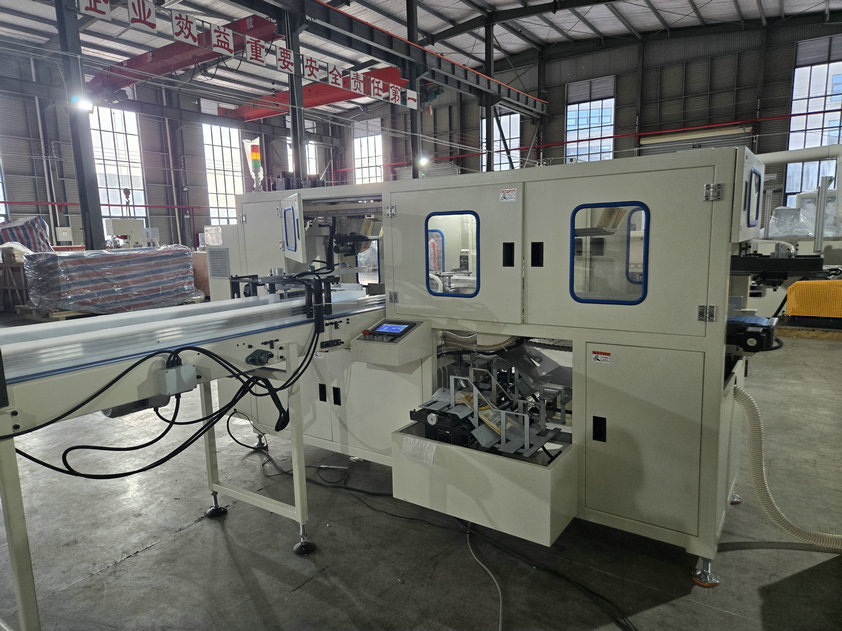

3. XY-BT-299 Automatic Hang Style Facial Tissue Packing Machine

This final machine in the line automatically packs the cut facial tissue stacks into bags . It is designed to connect directly with the log saw cutting machine for a seamless, automated process.

Key Features and Functions

• Line Integration: Designed to be directly connected with the automatic log saw cutting machine for continuous operation.
• Control System: Utilizes a servo system with PLC control for precise and reliable packing actions.
• Automation: Features automatic feeding and adjustment, using high-quality sensors to ensure accurate product handling.
• User Interface: Operated via a touch screen display for easy monitoring and control.
• Safety Systems: Includes emergency stop/pause functions, a safety alarm system, and air/electric power protection systems.
• Sealing System: Employs a constant temperature sealing and cutting system for secure, consistent package seals.

Production Line Configuration and Support

This three-machine configuration provides a complete solution for producing hanging-style facial tissues. The line is designed for factories looking to automate their converting process from parent roll to finished pack.

For detailed technical specifications, including production speed, power requirements, and dimensions for the complete line, please refer to the Technical Specifications section on this page or contact our sales team. We can provide a line layout and configuration based on your specific factory space and production targets.

To discuss your project requirements, request a quotation, or get more information about the complete hanging type facial tissue production line, please contact our sales team.
