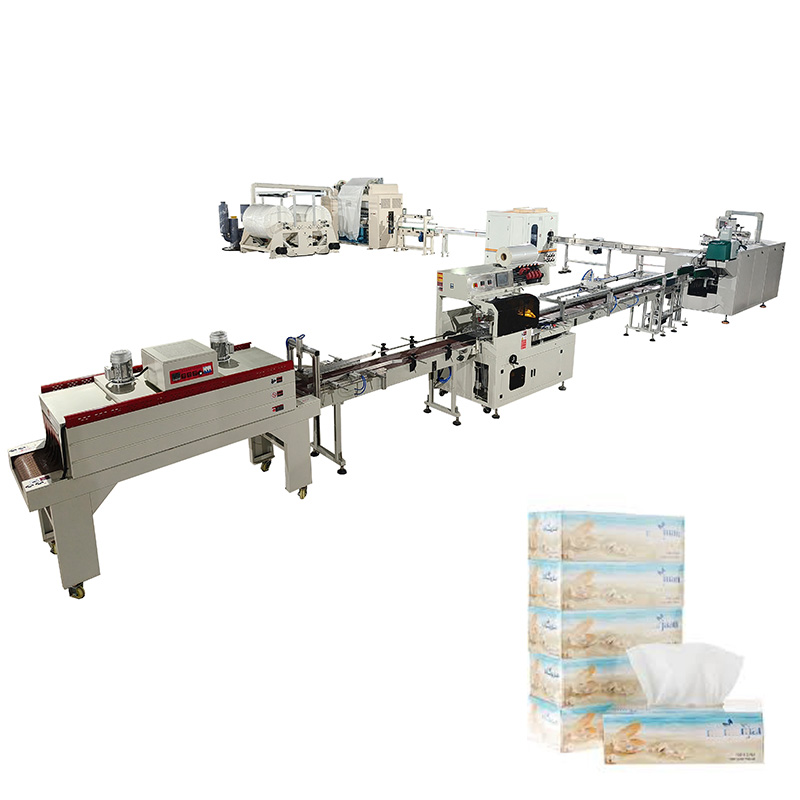

Automatic heat shrinking bundle box facial tissue paper making machine production line

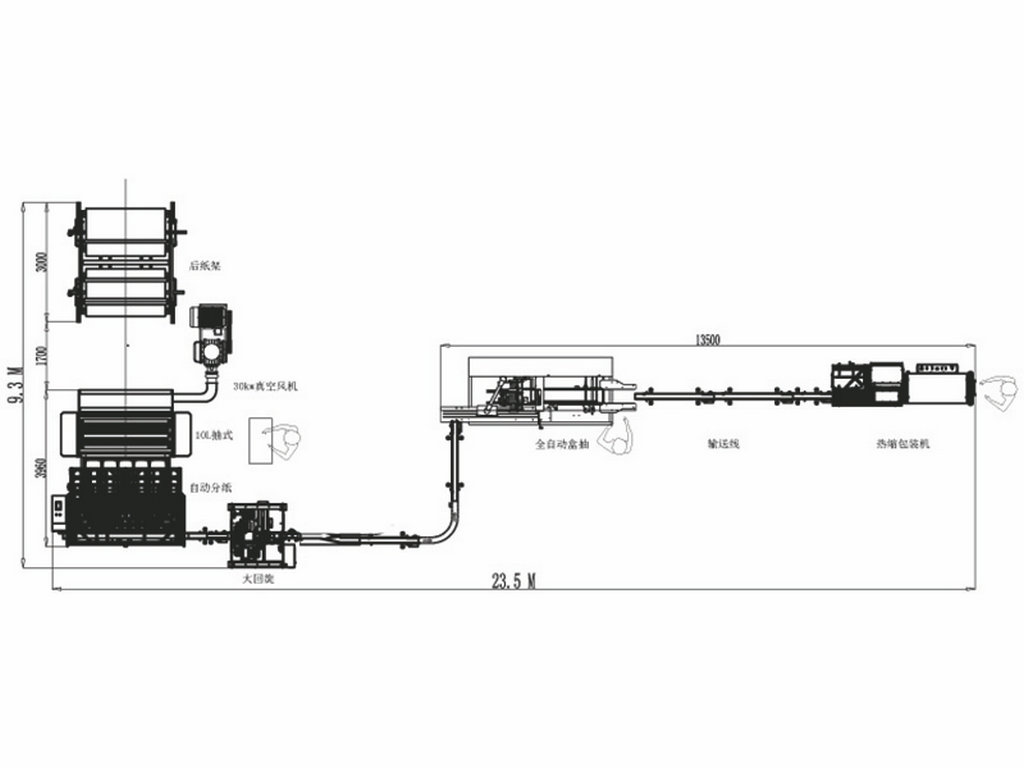

This production line consists of :

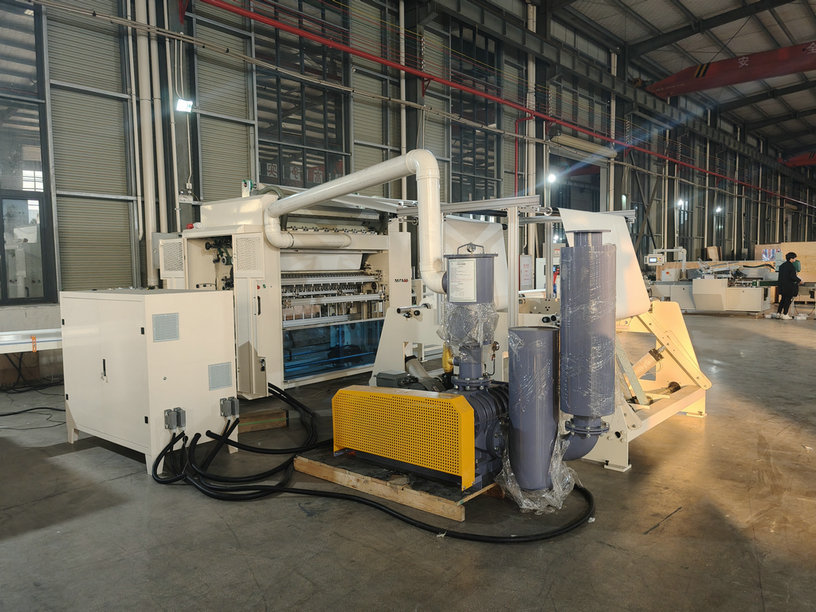

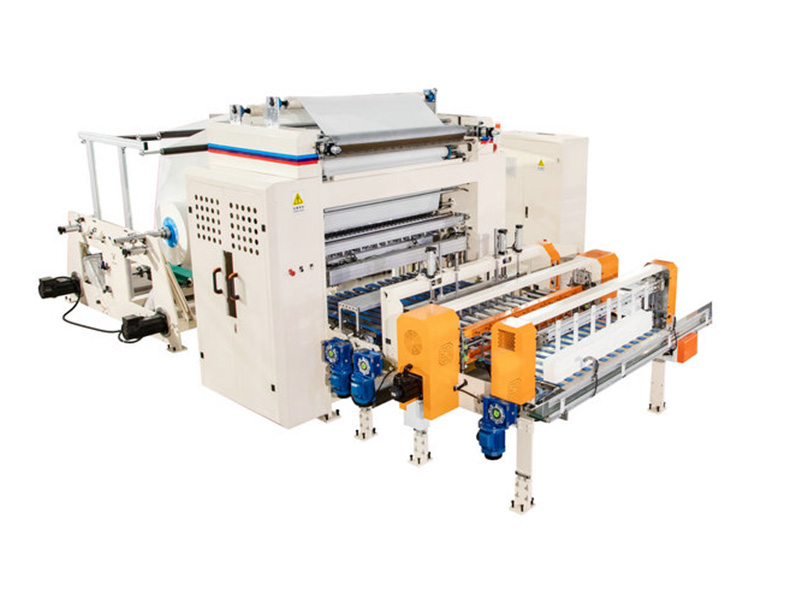

XY-GU-20A  Automatic transfer Facial Tissue Paper Folding Machine

Feature and Functions:

1. The paper-breaking knife roller is designed with a ‌spiral blade structure‌, effectively addressing two critical challenges: ‌stable paper breaking‌ and ‌extended blade lifespan‌.

2. Compared to the traditional straight-knife design, which often led to inconsistent paper cutting and premature blade wear, the spiral configuration ensures ‌point-cutting precision‌.

3. This innovation not only enhances operational stability but also significantly prolongs the durability of the blades, making it a superior solution for high-efficiency paper processing.

The ‌high-speed facial tissue cutting machine‌ is a ‌critical component‌ of box-drawing and bag-drawing facial tissue production lines, significantly enhancing ‌automation levels‌ and overall ‌production efficiency‌.

Engineered for ‌precision and durability‌, the machine features:

• A ‌robust construction‌ with a sleek, ergonomic design
• ‌Ultra-precise cutting motion‌, ensuring clean and consistent paper edges
• ‌Flawless roll alignment‌, guaranteeing smooth and flat sectioning

By integrating advanced cutting technology, this machine not only ‌minimizes material waste‌ but also ‌optimizes workflow speed‌, making it an ‌indispensable asset‌ for high-volume tissue manufacturing.

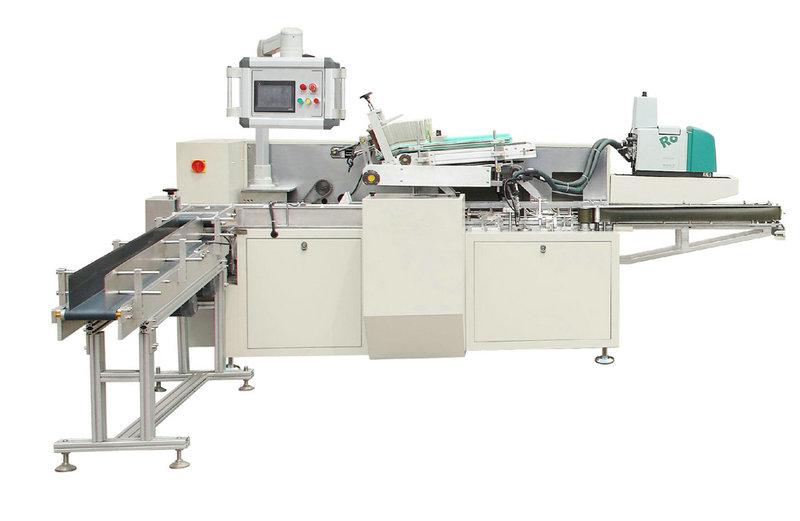

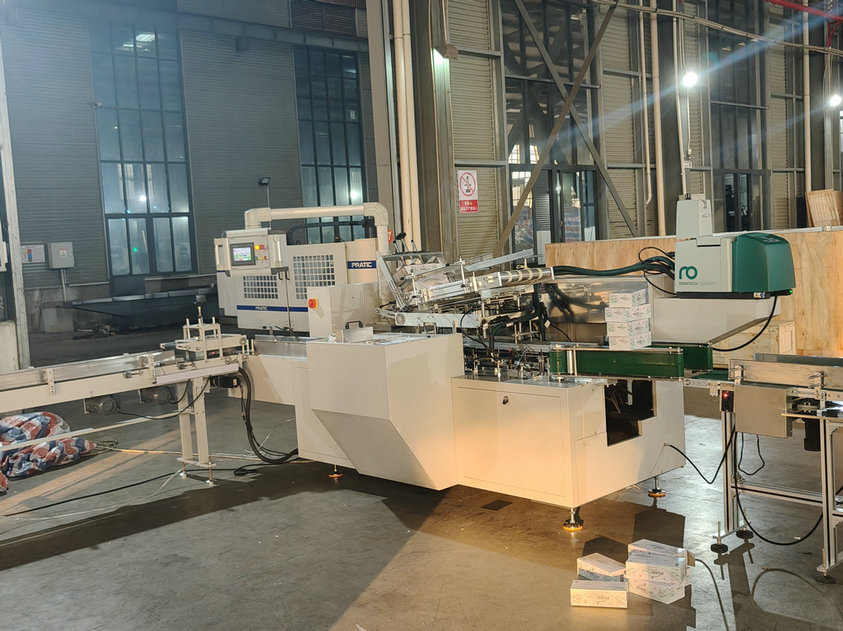

XY-GU-388 Automatic Box Facial Tissue Paper Packing Machine

Key Features:

1. ‌Automatic Rejection System‌ - Detects and rejects products that are missing, have non-standard height, or lack required leaflets.

2. ‌Carton Positioning Protection‌ - Automatically stops operation when products are improperly positioned in cartons.

3. ‌Material Monitoring System‌ - Halts production when cartons are missing or leaflets run out continuously.

4. ‌Quick Changeover Design‌ - Easily adaptable for different product specifications with minimal setup time.

5. ‌Overload Protection‌ - Built-in safety mechanism to prevent equipment damage during peak loads.

6. ‌Production Monitoring Display‌ - Shows real-time production speed and finished product count for operational tracking.

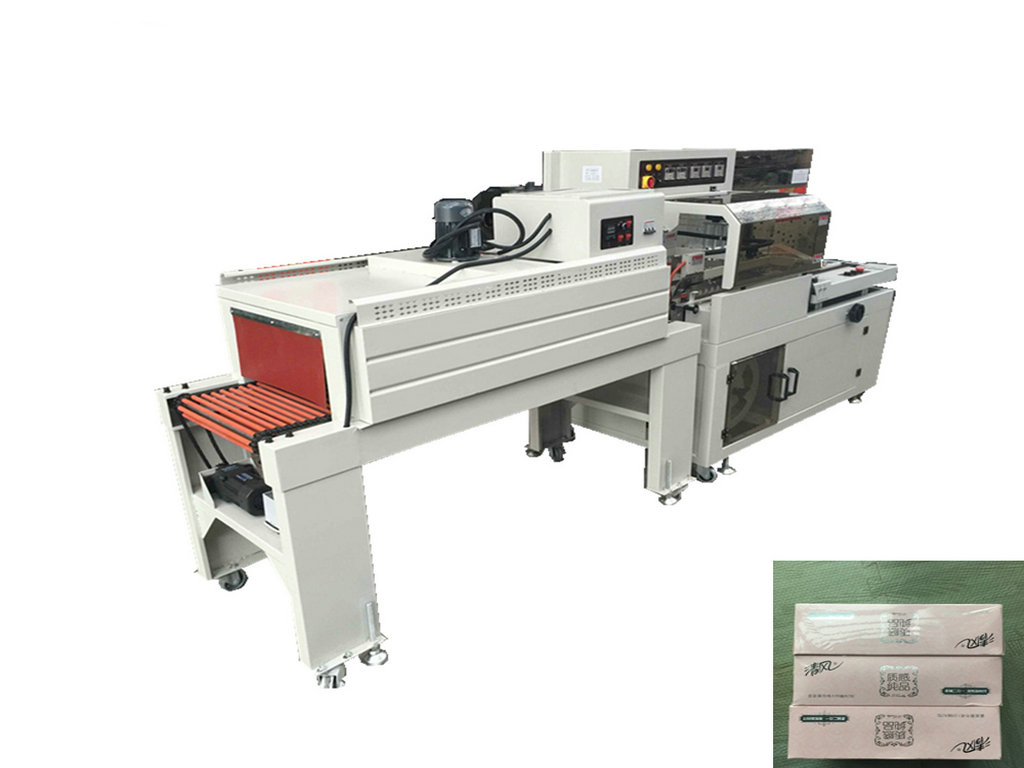

XY-TN-269 Automatic Bundle Facial Tissue Box Heat Shrinking Wrapping Machine

Automatic Cutting Sealing and Temperature Shrink Machine‌
This advanced packaging system utilizes heat-shrinkable film to encase products with precision efficiency. The automated process begins with the machine wrapping the item in a specially formulated polymeric film, which is then sealed at high speed to create a secure envelope.
Core Functionality‌
Thermal Activation‌: Upon exposure to controlled heat (typically 120-180°C), the film undergoes molecular contraction, conforming tightly to the product's contours.
Triple Protection‌: The shrink-wrap provides:
Barrier against dust/moisture
Impact resistance during transit
Tamper-evident security
Aesthetic Enhancement‌: The glossy finish and wrinkle-free presentation elevate perceived product value by 30-40% according to retail studies.
Industrial Applications‌
Ideal for electronics, cosmetics, and pharmaceutical packaging, this system ensures consistent presentation while reducing material waste by 15% compared to traditional methods. The integrated temperature control module prevents product heat damage, making it suitable for temperature-sensitive items.

XY-GU-20A  Automatic transfer Facial Tissue Paper Folding Machine

Technical parameter:

1.Production speed:800-1000 sheets/lines/min

2.Product unfold size(L*W):200*200mm (the folding side need fixed)

3.Product folded size(L*W):100*200mm

4.Power: 35.3KW (380V 50Hz 3Phase)

5.Overall size(L*W*H):8500*2250*2000mm

6.Weight:about 5T

7.Size of jumbo roll: width:1440mm, diameter:1200mm

8.Weight of raw paper: Pure wood pulp (14-18)*2gsm

9. Roots blower

10. Individual motor to control jumbo roll

11. Steel to flat edge embossing device

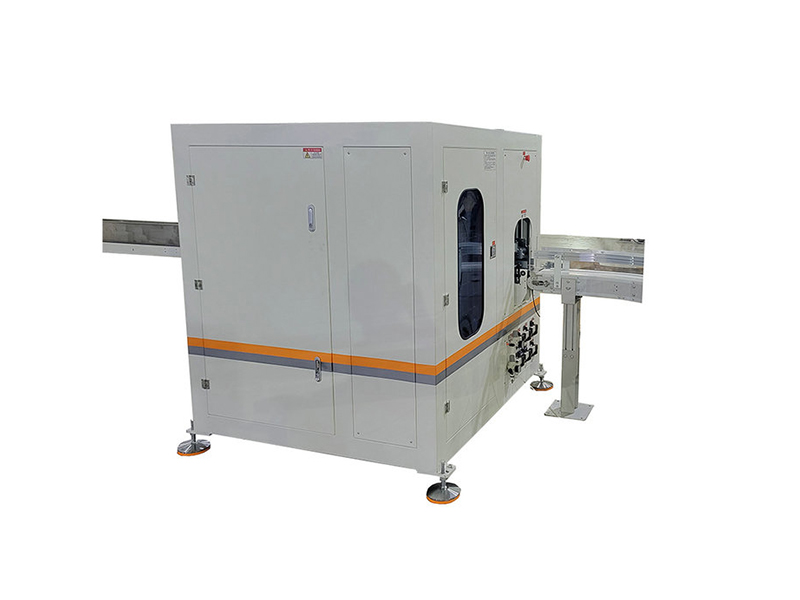

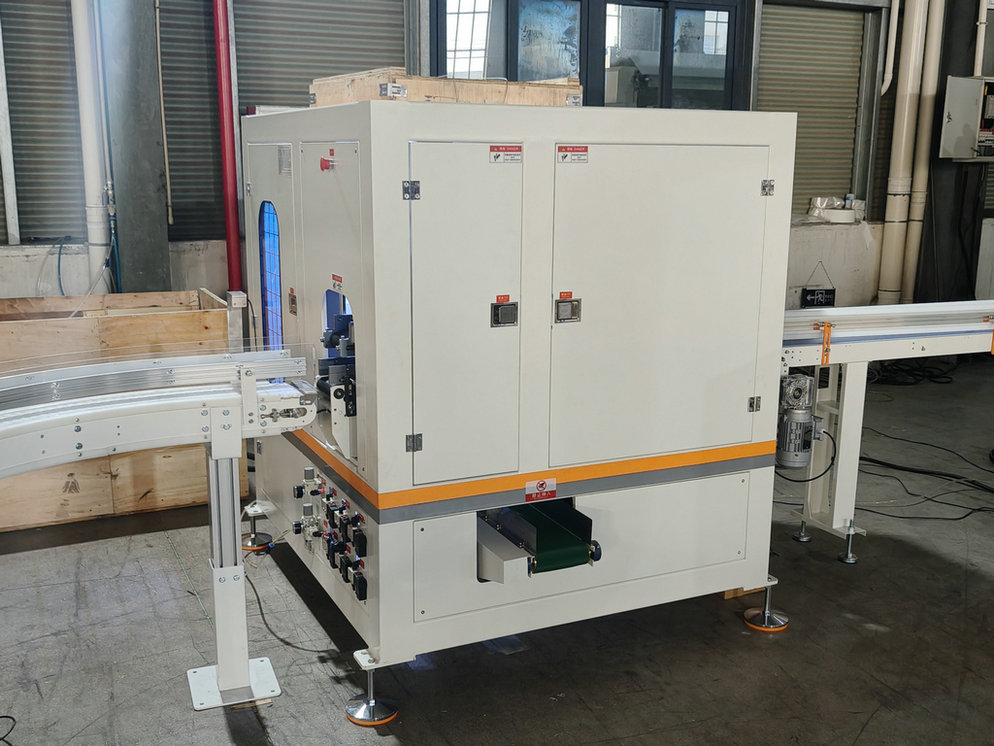

XY-GU-281 High Speed Facial Tissue Cutting Machine

Technician parameter:

1. Production speed: 80-100 cuts/min

2. Cutting size:  height:  20-120mm

                          width:  80-120mm

                          Length: setting freely

3. Power: 13.5Kw 380V 50 Hz 3 phase

4. Overall size: 1700*1500*2000mm(L*W*H)

5. Weight: 2.8T

6. HS code: 8441100000

XY-GU-388 Automatic Box Facial Tissue Paper Packing Machine

Technology Parameter:

1. Packing speed: 50-80boxes/min

2. Package size(L*W*H): 200*100*100mm

3. Power: 15KW (380V 50HZ 3Phase)

4. Overall dimension(L*W*H): 3400*1400*1700mm

5. Weight: 2000KG

XY-TN-269 Automatic Bundle Facial Tissue Box Heat Shrinking Wrapping Machine

Technical Parameters：

1. Power supply：13.5 KW 380V 50Hz 3 phase

2. Packing speed：20-40 Packs /min

3. Maxi Packaging Size：  L800*W400*H200 mm

4. Machine size ：L3450×W735×H1455mm

5. Weight： 550KG

6. Conveying speed: 0-10m/min

7. Applicable film : 0.019mm POF folded film

1. ‌Facial Tissue Folding Machine‌ – Precision-folds sheets into compact layers, ensuring uniform texture and softness.
2. ‌Facial Tissue Cutting Machine‌ – Laser-guided cutting guarantees consistent size and clean edges.
3. ‌Box Facial Tissue Packing Machine‌ – Automated carton loading and sealing eliminate manual handling.
4. ‌Bundle Box Facial Tissue Wrapping Machine‌ – High-speed bundling with shrink-wrap technology enhances product presentation.

‌Key Advantages:‌

• ‌Stable Performance‌: Minimal downtime with real-time fault detection.
• ‌Cost Efficiency‌: Reduces labor costs by 60% compared to manual processes.
• ‌Ergonomic Design‌: Low-noise operation and safety sensors protect workers.
