Hot Keyword:
Price:
Negotiable
Model:
XY-BT-298
Power:
7.26KW 380V 50HZ 3Phase
Application:
Facial tissue packing machine
Weight:
3 tons
Output:
facial tissue
Packaging Dimension:
3560*5885*1925mm
Machine Size:
Certification:
CE, ISO
Automatic Facial Tissue Bag Packing Machine
Application: This machine is mainly used for Facial Tissue or Napkin Paper Three Dimensional Packing.
Main performance and structure features:
1. The machine features a simple structure, with both the power system and packaging system featuring a brand-new open design for easy adjustment and maintenance. The machine's compact size and small footprint facilitate layout, operation, and maintenance. Its robust construction minimizes vibration during operation and ensures stable packaging results.
2. The film slitting and dotted line cutters utilize spring-loaded rotating blades powered by a servo motor. They deactivate when no material is present, extending the life of the cutters.
3. The rear-flipping package pressing mechanism simplifies adjustment and ensures stable, aesthetically pleasing packaging results.
4. The box-type combined structure ensures high vibration and stability.
5. The user-friendly human-machine interface automatically calculates the initial position after entering packaging parameters, and the settings can be saved, facilitating format changes and reducing changeover time. 6. The three-dimensional packaging system, which combines wrapping, folding, and sealing, offers a compact and aesthetically pleasing structure, with excellent end-sealing and side-iron effects.
7. The anti-empty packaging function, with increased material handling unit levels and auxiliary photoelectric tracking before feeding, prevents continuous and multiple packs, as well as oversized or undersized paper, improving product packaging quality. The feed conveyor mechanism prevents unqualified tissues from passing through and prevents film from being applied to empty packs, maximizing packaging material savings.
8. An electronic handwheel replaces a mechanical one, providing convenient and precise control.
9. An alarm function for over-length and under-short feed paper prevents mechanical damage caused by paper over-length and under-short errors, preventing unqualified products from being packaged and wasting film due to uneven paper lengths. This also reduces product scrap rates.
10. Optional ribbon printer (standard).
11. Equipped with an automatic film tension adjustment device.
12. Automatic film application stop function (no paper, no film applied);
13. Optional custom-shaped tearing device (optional).
|
Model |
XY-BT-298 |
|

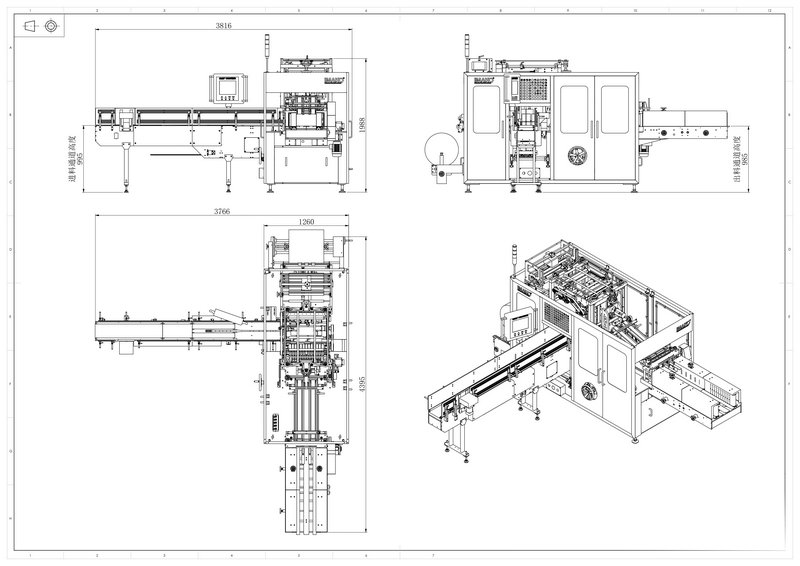

Outline Dimension (mm) |
3560*5885*1925 |
|
Speed (bags / min) |
50-70 |
|
Packing size (mm)After folding size |
100-230*90-150*40-120 |
|
Machine's Weight (KG) |
3000 |
|
Motor Consumption (KW) |
3.66 |
|
Heating Consumption (KW) |
3.6 |
|
Power |
380V 50Hz |
|
Power Consumption (KW) |
7.26 |
|
Packing film |
CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides |
Q: Are you trading company or manufacturer
A: We are factory.
|
Technical Specifications |
Description |
Remark |
|
Scope of application |
Facial tissue, hand towel, napkin tissue |
|
|
Equipment feeding mode |
ASF Full automatic |
Five sections of intelligent flexible feeding mode |
|
Max. design mechanical speed |
Max. 100 bags/min |
Related to specification of packing |
|
Max. stable operation speed |
70 bags/min |
Related to specification of packing |
|
Tissue length range (finished product) |
120 mm- 210 mm |
Over this size can be customized |
|
Tissue height range(finished product) |
40 mm- 100 mm |
|
|
Tissue width range(finished product) |
90 mm- 105 mm |
|
|
Spare parts for change size |
3 sets |
Standard configuration quantity, the accurate specifications drawn up by the user |
|
Machine size(L*W*H) |
4600*3620*1770mm |
Standard size |
|
Machine weight |
About 3000KG |
|
|
Packaging materials |
CPP film |
|
|
Film Thickness |
0.04mm-0.055mm |
|
|
Max film diameter |
400 mm |
Over this size can be customized |
|
Diameter of film core |
76mm |
In accordance with international standards |
|
Max film width |
340mm |
Over this size can be customized |
|
Air compressor |
Minimum air pressure 5MPA |
Equipped by user |
|
Total drive power |
4.8 KW |
The sum of main motor, servo motor, Sum of speed regulating motor power |
|
Total heating power |
4.6 KW |
Side seal, side sealing part of heating power combined |
|
Voltage variation |
+/-10% |
In accordance with international standards |
|
I/O Input/ I/O |
24VDC |
Electrical control system control circuit input |
|
I/O Output/ I/O |
24VDC |
Electrical control system control circuit output |
|
Equipment motion control mode |
Three axle servo and axle location control |
The electronic CAM motion curve |
|
Equipment main transmission mode |
20crmnti mechanical-cam+The electronic CAM drive |
|
|
Machine standard colour |
Gray, International color RAL 7032 |
The international color card color number RAL7032 |
|
Packaging style |
Three-dimensional wrapping |
vertical sealing first and then two side sealing |
This machine adopts:
1. PLC controlling system
2. Servo drives
3. Frequency converter
4. Yudian temperature module
5. up-to-dated touch screen integrated to control and driving center,with faster calculating speed,to greatly improve the control precision and reliability.
The new kind of material sorting structure solves multiple packs and empty packs problem so as to make sure the productively is increase greatly,which can reflect more for automation and intelligent.
