Price:
Negotiable
Model:
XY=GU-A-B
Power:
55KW 380V 50HZ 3Phase (depends on the jumbo roll width)
Application:
24 bags facial tissue paper production line
Weight:
8 tons (depends on the jumbo roll width)
Output:
24 bags facial tissue paper
Packaging Dimension:
17000*7000*2100mm
Machine Size:
Certification:
CE, ISO
This page presents a coordinated production line for bag-packed interfold facial tissue. The line is built from four machines that work as a sequence: folding, cutting, single-bag packing, and bundle packing. Each machine is described below with its verified function and control features so you can evaluate how it fits your existing converting floor.

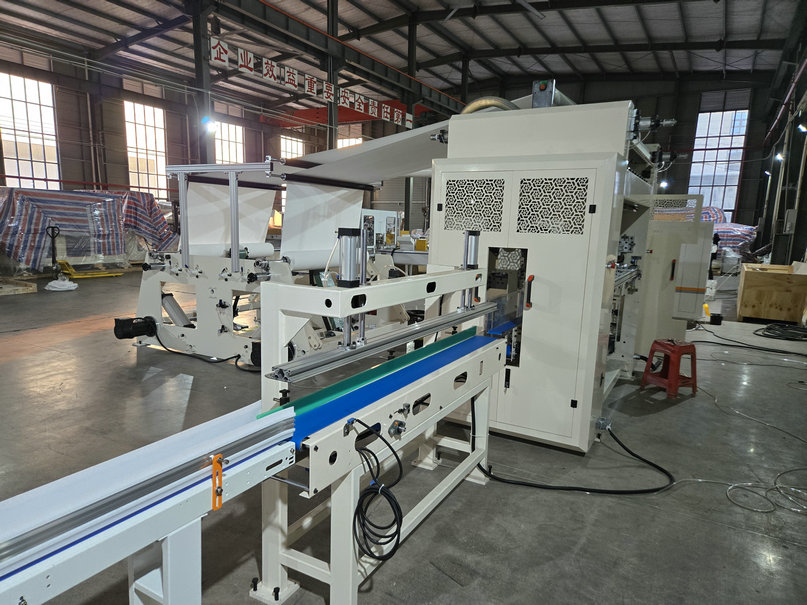

The XY-GU-20A is the first stage of the line. It converts parent rolls into V-fold facial tissue using vacuum adsorption folding. The machine is designed for continuous operation with automatic feeding and adjustment, supported by high-quality sensors.
An integrated detection system stops the whole machine when a paper break occurs, reducing raw paper waste during production.
Counting is performed by a high-resolution encoder operation, providing accurate sheet counts for downstream packing.
The folding method uses vacuum adsorption to handle tissue consistently, supporting V-fold output formats.
Operation is managed through a touchscreen interface with emergency stop/pause, safety alarms, and air/electric power protection.

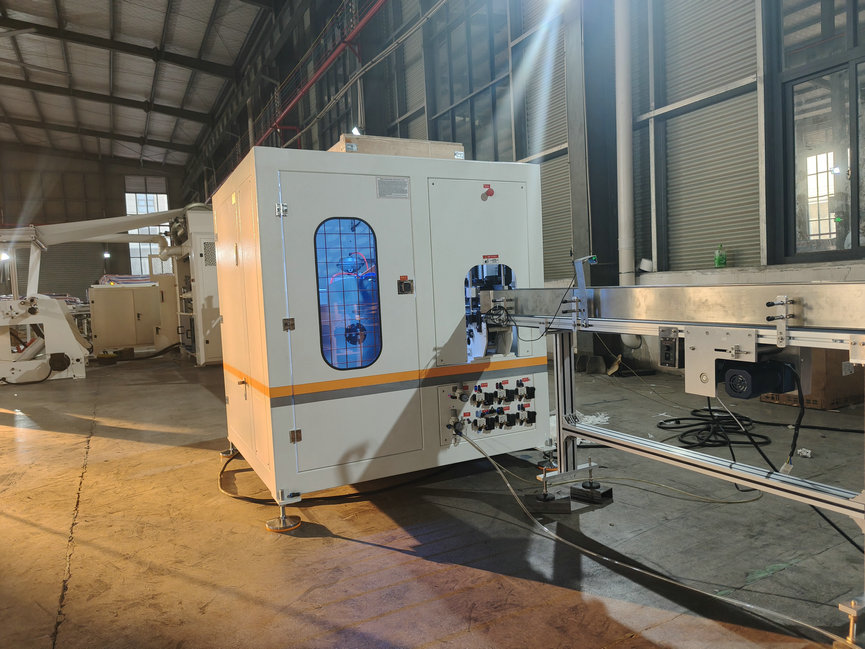

After folding, the XY-GU-281 cuts the continuous tissue log into individual packs. This machine uses a 360° rotation continuous cutting method and is built for integration with downstream packaging equipment.
The paper output electric eye detection system monitors the packaging machine and conveyor. If a malfunction occurs and products pile up, the cutting machine stops automatically.
Feeding uses a servo drive with synchronous belt positioning transmission for accurate cutting registration.
Programmable logic control, servo drive, and touch screen operation provide centralized machine management.
An automatic knife sharpening system is included, with parameters set via the touch screen to maintain cutting quality.

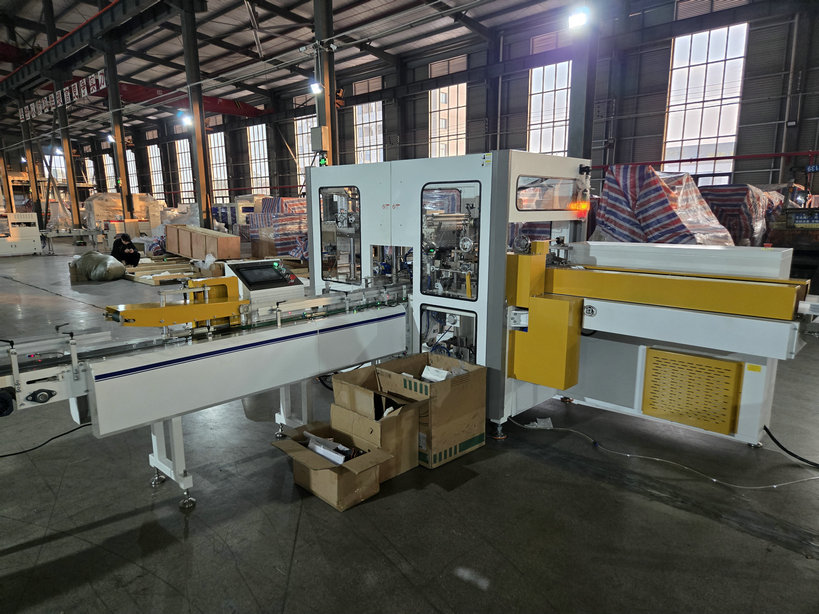

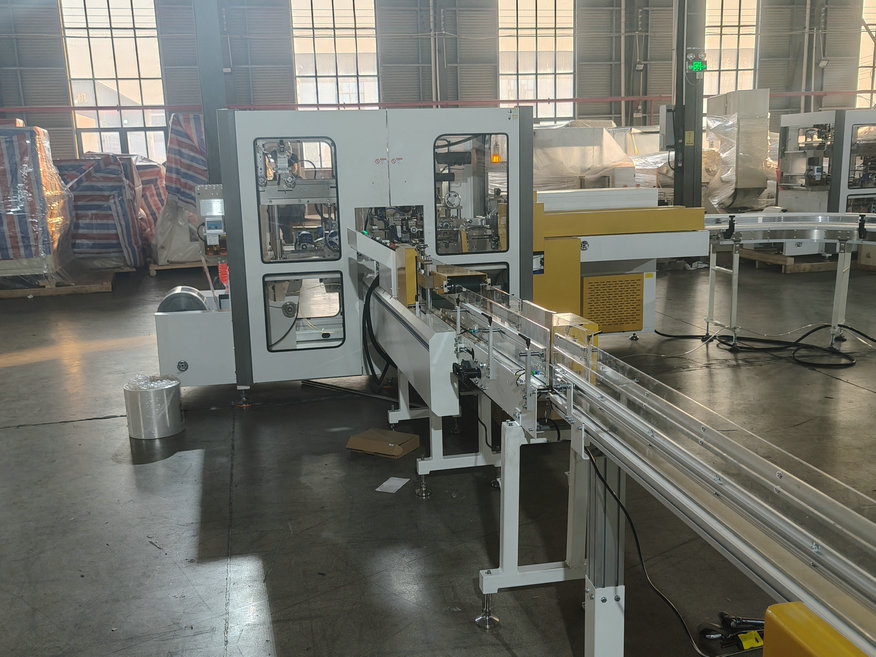

The XY-BT-298 automatically packs V-fold facial tissue, napkin, and flat tissue formats into bags. It is the primary single-bag packing stage of the line.
A fully automatic shaping function prepares the tissue stack for consistent bag filling.
Automatic detection and speed reduction respond to changes in the tissue incoming material flow, preventing jams.
Step-less frequency conversion, touch screen, and PLC control provide clear display and easy maintenance.
Photocell checking, servo tracking, and non-material feeding without tissue reduce packing material consumption.

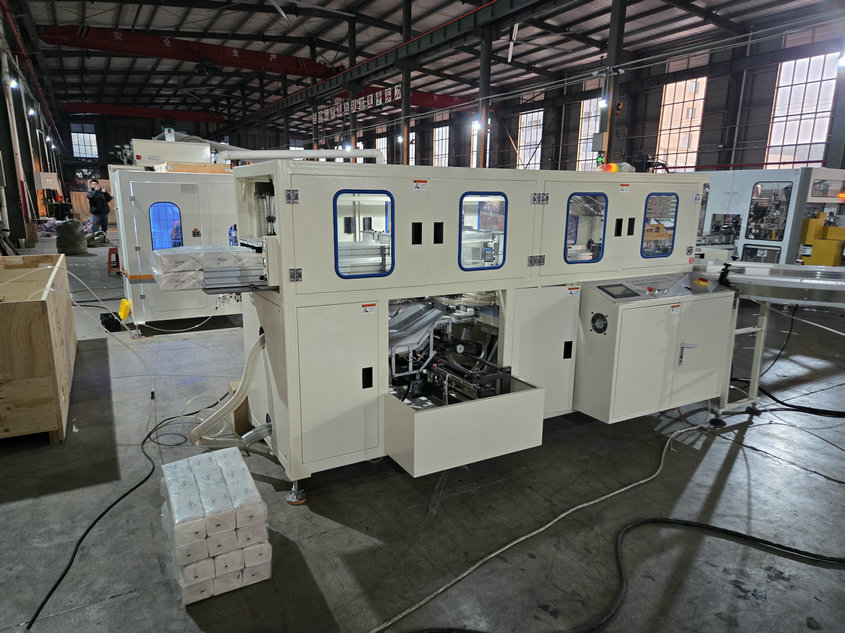

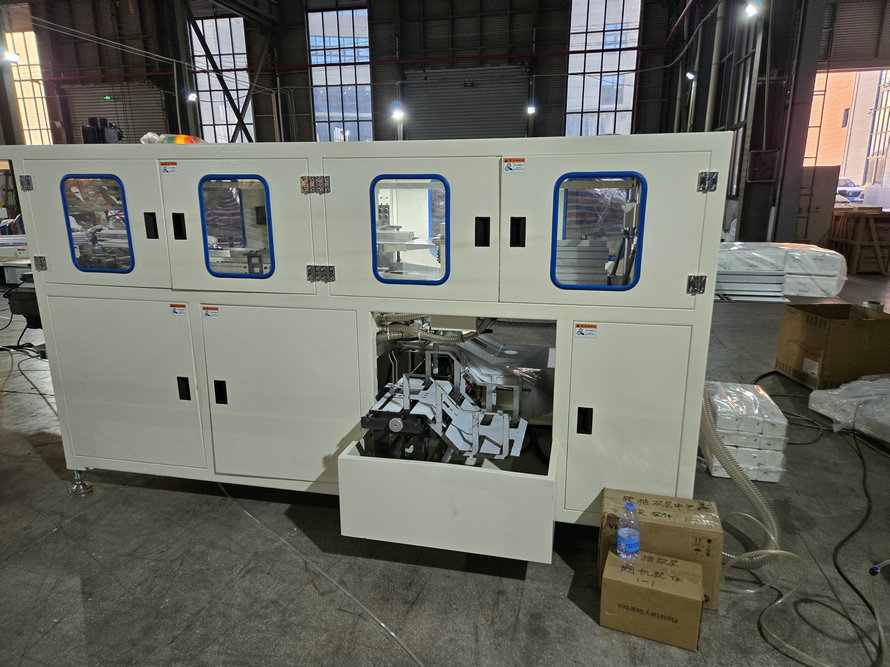

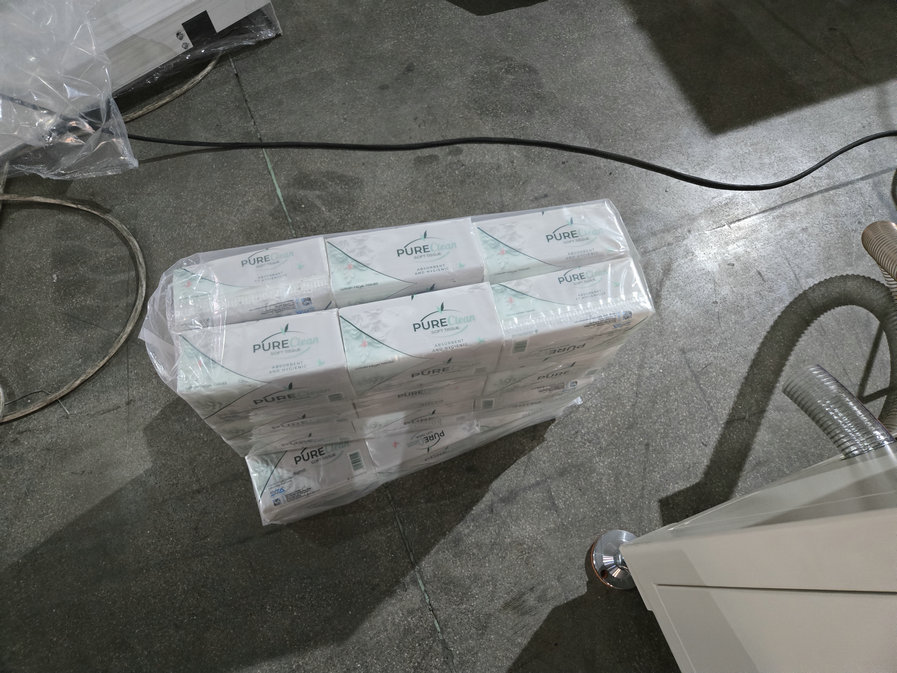

The final stage, XY-BT-299, bundles multiple single bags into a 24-bag pack. It is designed to operate after the XY-BT-298 single-bag packing machine.
Fully automatic operation with high speed is ideal for bundling facial tissue paper into multi-pack formats.
Compatible with facial tissue single bag packing machines, enabling a continuous production flow.
Equipped with a servo system and PLC control for precise, repeatable bundling cycles.
Incorporates a constant-temperature sealing and cutting system for secure bundle closure.

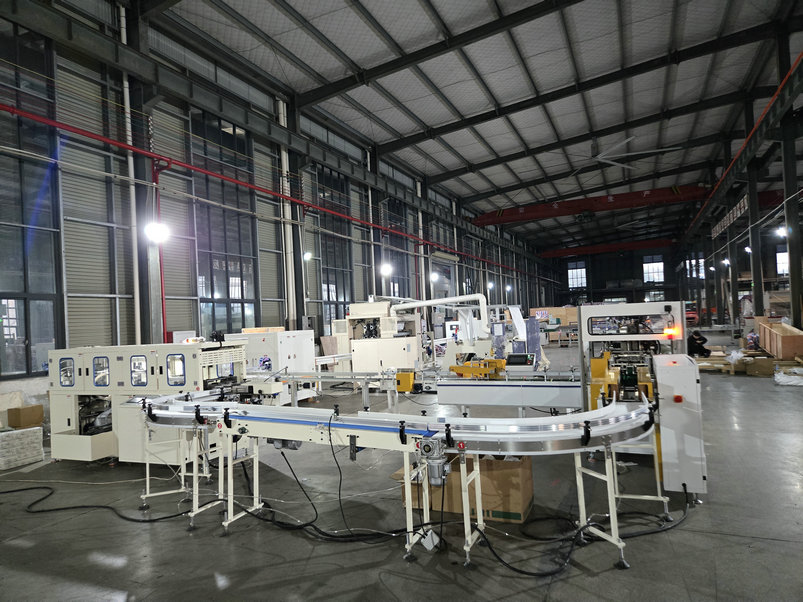

These four machines are designed to work as a sequence. The folding machine (XY-GU-20A) produces the V-fold tissue, the cutting machine (XY-GU-281) divides it into packs, the packing machine (XY-BT-298) bags each pack, and the bundling machine (XY-BT-299) groups the bags into 24-bag bundles. Each unit includes its own control interface and safety features, allowing operators to manage individual stages while maintaining line coordination.
| Line Stage | Machine Model | Primary Function | Key Control Feature |
|---|---|---|---|
| Folding | XY-GU-20A | V-fold facial tissue production | Vacuum adsorption, encoder counting |
| Cutting | XY-GU-281 | Log cutting into packs | Servo drive, PLC control |
| Single-bag packing | XY-BT-298 | Bag packing of tissue stacks | Frequency conversion, touch screen |
| Bundle packing | XY-BT-299 | 24-bag bundle formation | Servo system, constant-temperature sealing |
Each machine in this line includes features aimed at reducing waste and improving operator safety. The folding machine stops on paper break, the cutting machine halts when product piles up downstream, and the packing machines include automatic feeding adjustments and safety alarms. These functions help maintain consistent output quality while protecting the equipment and operators.
The line is configured for V-fold facial tissue, and the packing machine (XY-BT-298) also handles napkin and flat tissue formats. Final folded size and pack configuration depend on the specific machine setup.
Each machine has its own control system. The folding, cutting, and packing machines use touchscreen interfaces with PLC control. The bundling machine uses a servo system with PLC control.
All machines include emergency stop/pause functions, safety alarms, and air/electric power protection. The cutting machine also has an automatic stop function when product pile-up is detected downstream.
The XY-BT-299 bundling machine is specifically designed to be compatible with facial tissue single bag packing machines. For other integration questions, please contact our sales team with your current line configuration.

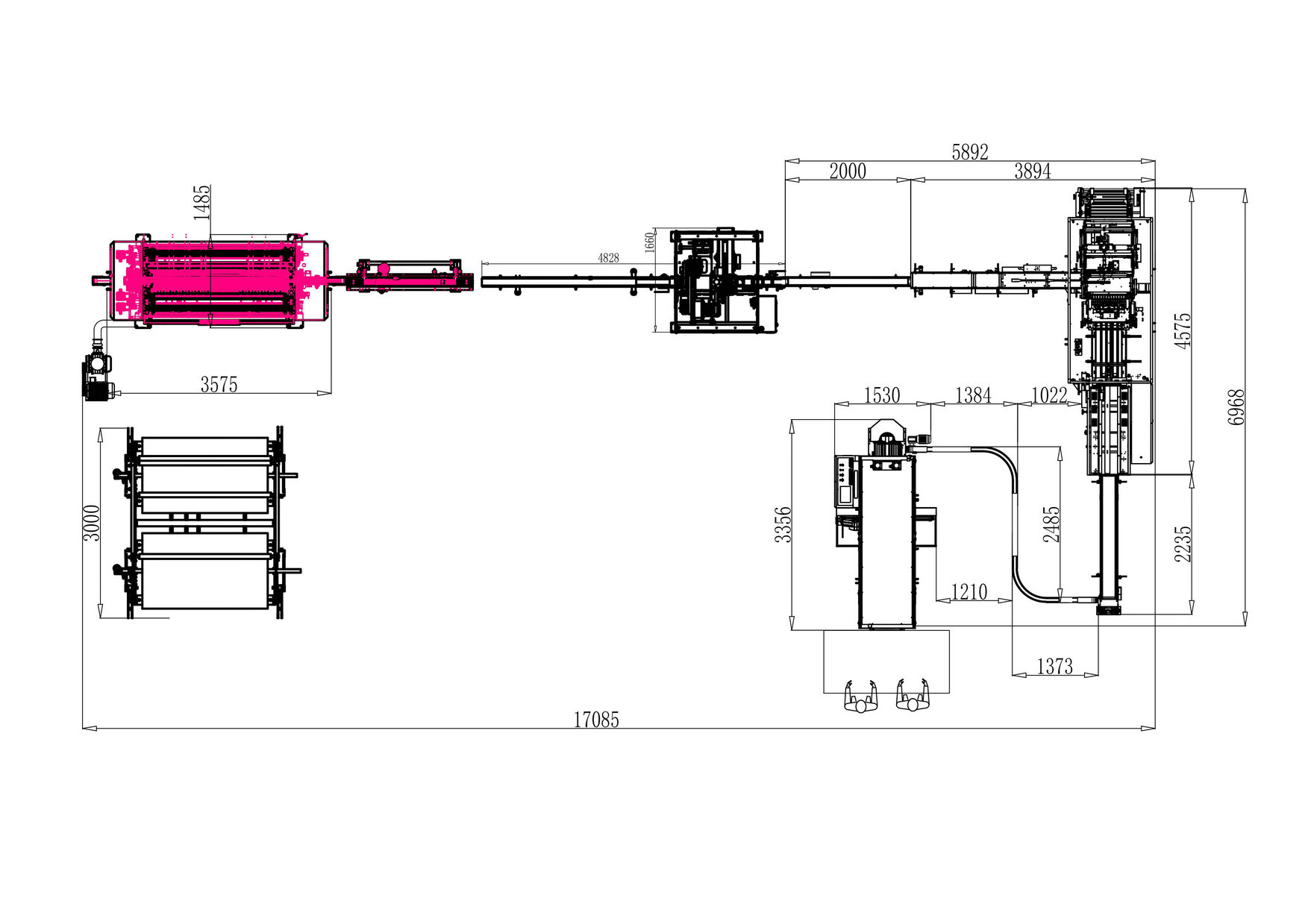

To receive detailed specifications, floor plan requirements, and utility connection data for this facial tissue line, please contact our sales engineers. Provide your target bag size, bundle count, and daily production volume to receive a line configuration recommendation.
Contact us for a line layout proposal and machine specifications.
| Parameter | Specification |
|---|---|
| Production speed | 800–1000 sheets/line/min |
| Product unfolded size (L×W) | 200 × 200 mm |
| Product folded size (L×W) | 100 × 100 mm |
| Power | 30 kW (380V, 50Hz, 3-phase) |
| Overall dimensions (L×W×H) | 8500 × 2250 × 2000 mm |
| Machine weight | Approx. 5 T |
| Jumbo roll size | Width: 1240 mm; Diameter: 1200 mm |
| Raw paper weight | (14–18) × 2 gsm |
| Included equipment | Roots blower; individual motor for jumbo roll control; steel-to-flat-edge embossing device |
| Parameter | Specification |
|---|---|
| Production speed | 100–120 cuts/min |
| Cutting height | 20–120 mm |
| Cutting width | 80–120 mm |
| Cutting length | Freely settable |
| Power | 13.5 kW (380V, 50Hz, 3-phase) |
| Overall dimensions (L×W×H) | 1700 × 1500 × 2000 mm |
| Machine weight | 2.8 T |
| HS code | 8441100000 |
| Parameter | Specification |
|---|---|
| Speed | 60–80 bags/min |
| Packing size (L×W×H) | 200 × 100 × 120 mm |
| Shrink film type | CPP film |
| Power | 11 kW (380V, 50Hz, 3-phase) |
| Overall dimensions (L×W×H) | 4650 × 3650 × 1800 mm |
| Machine weight | 3 T |
| HS code | 8422309090 |
| Parameter | Specification |
|---|---|
| Capacity | 10–15 bags/min |
| Bundling bag mode | Prefabricated bag with air-bleed hole |
| Power | 11 kW (380V, 50Hz, 3-phase) |
| Packing size (L×W×H) | 750 × (130–400) × (80–300) mm |
| Machine weight | 3500 kg |
| Overall dimensions (L×W×H) | 6800 × 3700 × 1600 mm |
These four machines form a complete facial tissue converting line—from V-fold folding and cutting to bag and bundle packing. Contact Xinyun to confirm the configuration that matches your target sheet size, pack count, and output requirements.
Good price bag V interfold facial tissue paper machine production line including 4 sets machine:
1. XY-GU-20A Automatic transfer V fold facial tissue folding machine
2. XY-GU-281 High speed facial tissue cutting machine
3. XY-BT-298 Good quality bag facial tissue packing machine
4. XY-BT-299 Automatic 24 bags facial tissue bundle packing machine
The entire production line runs smoothly and stably from jumbo roll paper loading to finished facial tissue paper cutting and packing. With a high level of automation, it significantly reduces labor costs and decreases worker workload, making it the ideal solution for V fold bag facial tissue production.
