Soft Bag Facial Tissue Paper Processing Machine Production Line

Soft Bag Facial Tissue Paper Production Line

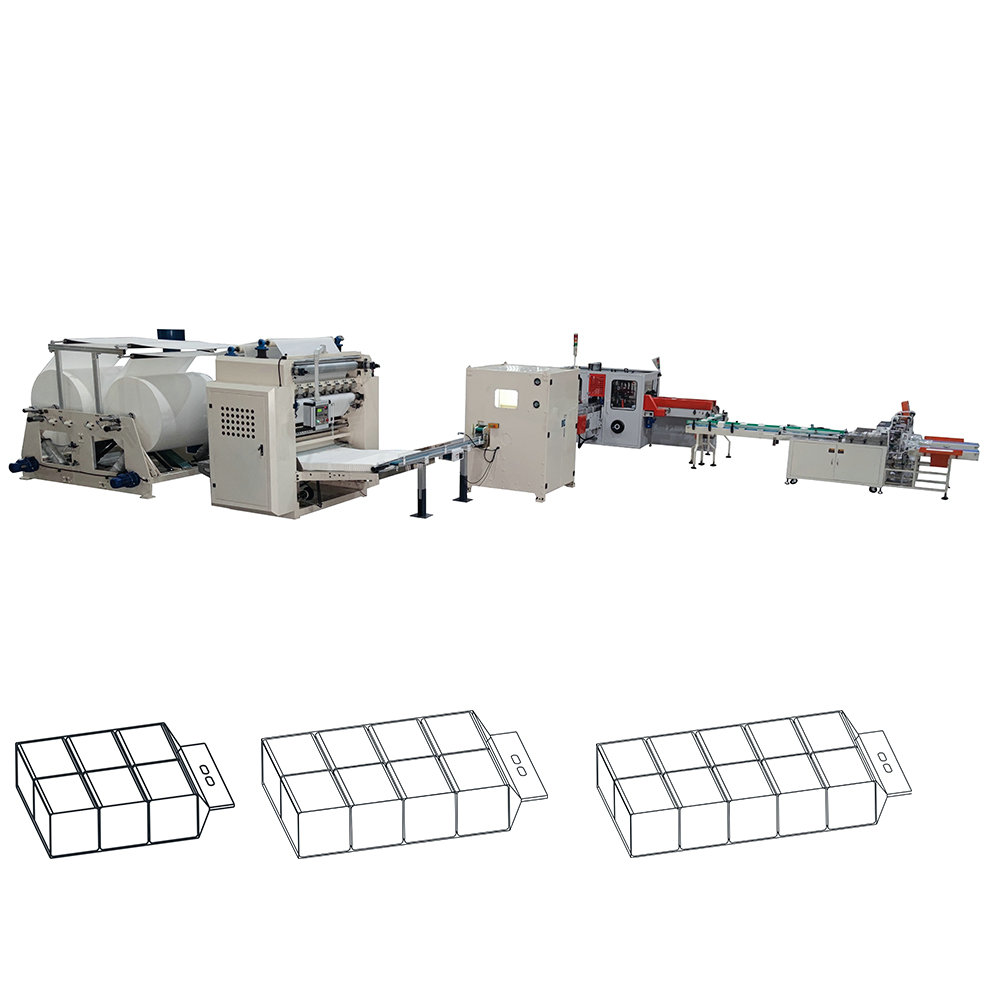

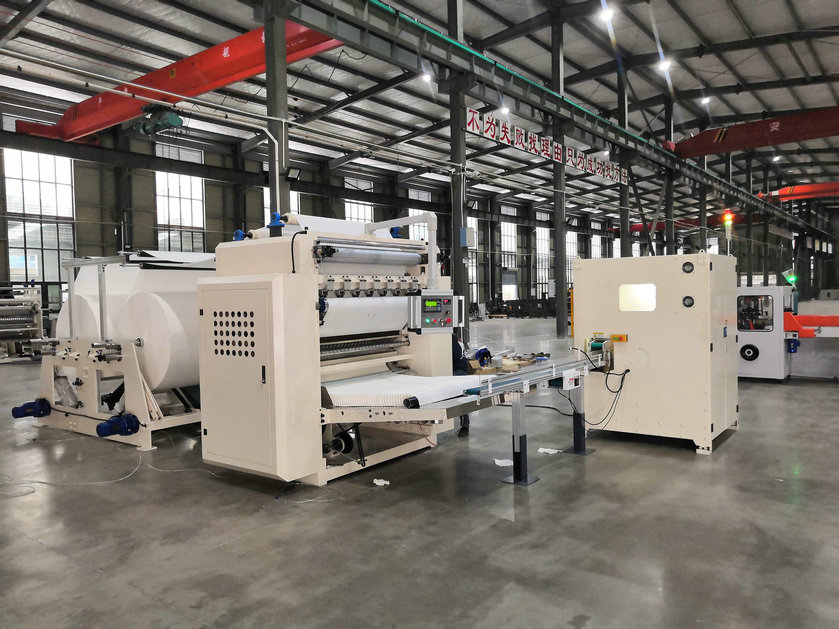

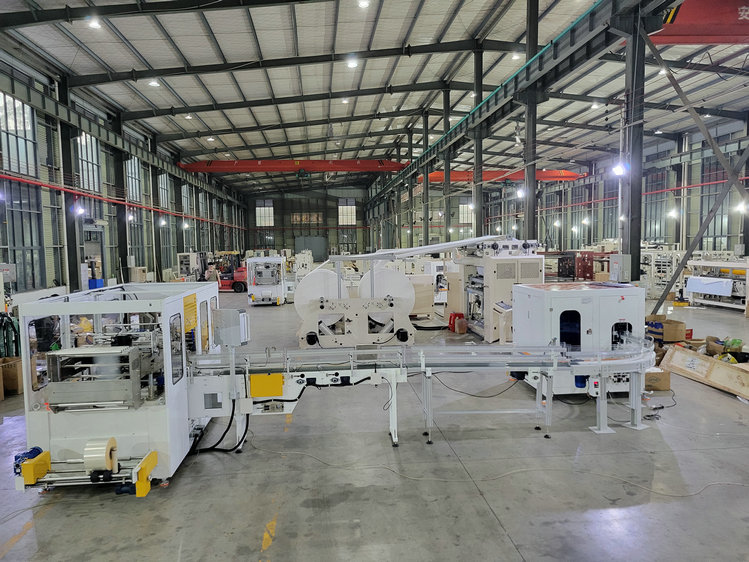

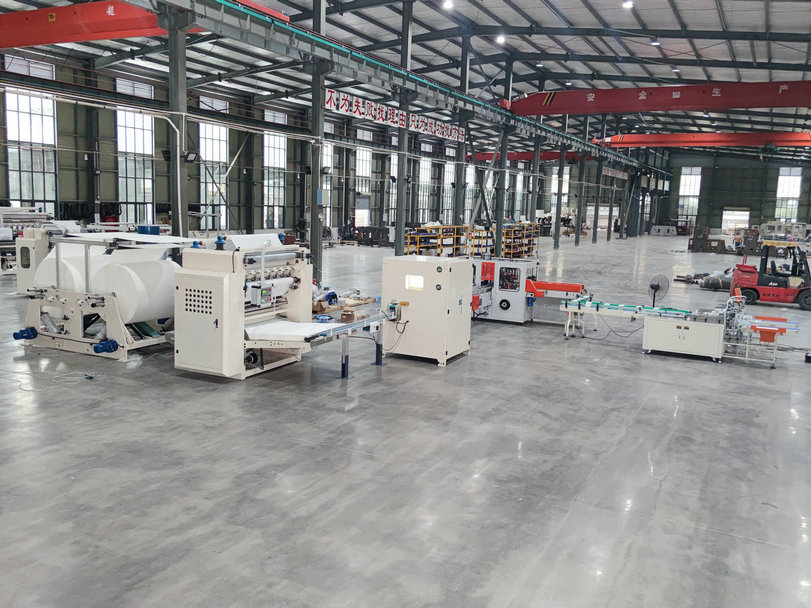

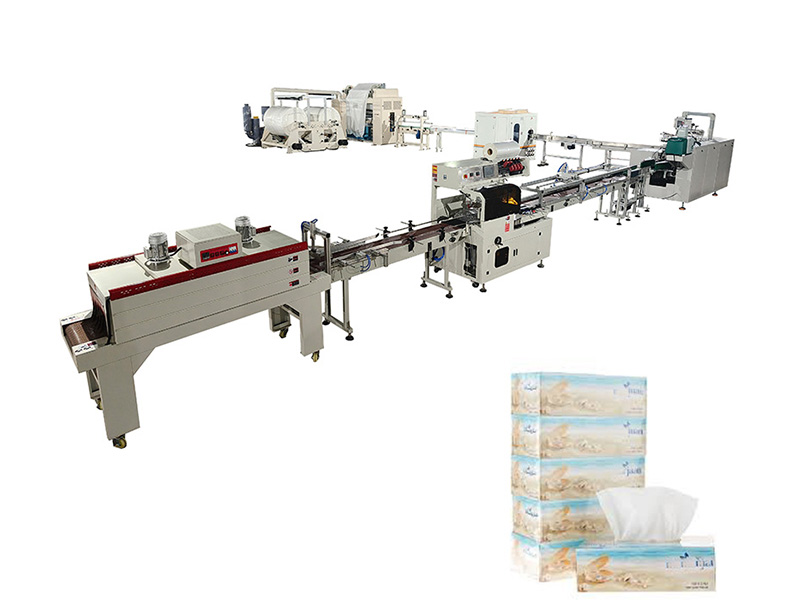

This production line combines four matched machines to convert jumbo tissue rolls into soft-pack facial tissue: a high-speed folding machine, a precision log saw, an automatic soft packing machine, and a semi-automatic bundle packing machine. Each unit is engineered for stable running, quick changeover, and consistent output for boxed or bagged facial tissue.

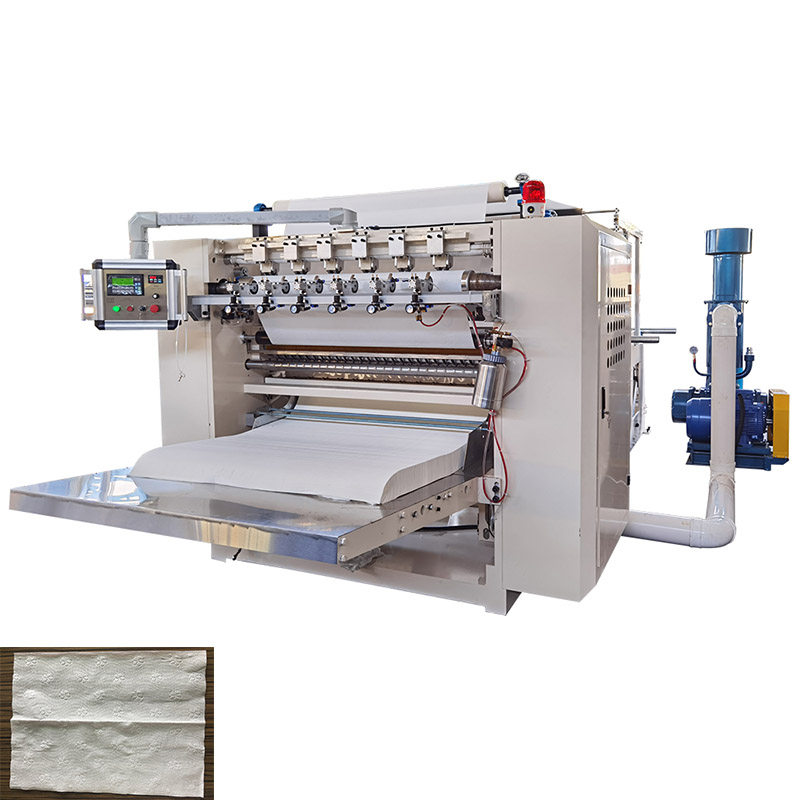

1. XY-GU-20A High Speed Facial Tissue Folding Machine

Jumbo rolls, pre-slit to the required width, are precisely cut by slitting cylinders and then reciprocally folded into rectangular or square facial tissue sheets. Independent servo motor drive with automatic paper tension control delivers high-speed operation, superior folding precision, and a user-friendly interface.

Main features

• Pneumatic embossing and pneumatic separation (embossing unit is customer-selected).
• Wallboard structure provides excellent running stability at high speed.
• Pneumatic jumbo roll loading, pneumatic paper driving, stepless speed ratio adjustment, and web tension control.
• Roots-type vacuum pump for stable machine running.
• Produces various facial tissue widths as required.
• Edge embossing unit keeps the two plies together.
• Automatic stop on paper break to avoid waste.
• Two jog buttons for safer, easier web threading.
•

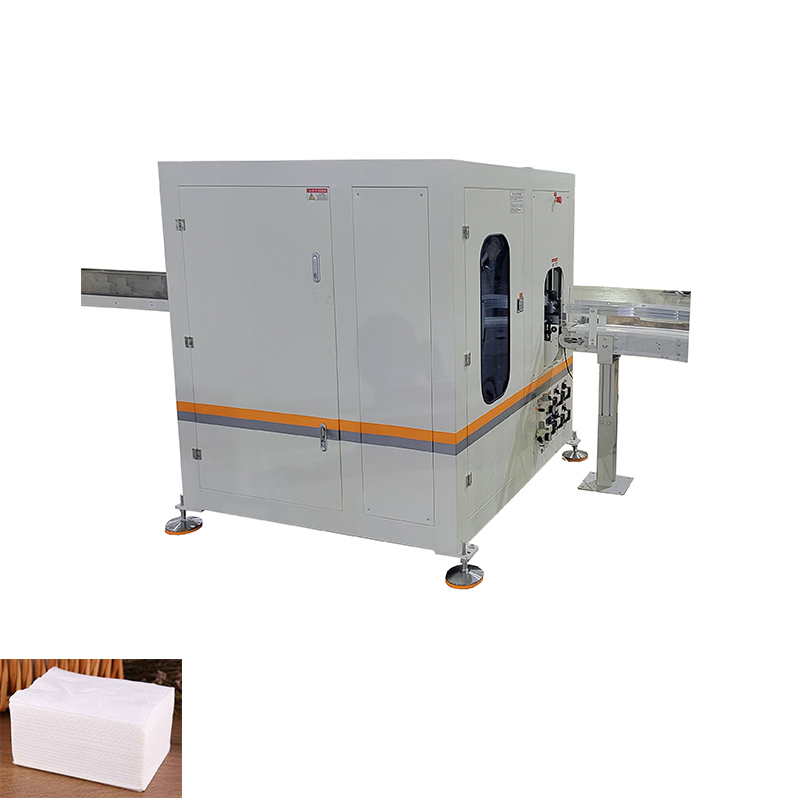

2. XY-GU-281 Automatic Facial Tissue Log Saw Cutting Machine

This automated cutting system is designed for precision cutting of folded and rolled tissue products, including removable facial tissue. Advanced servo drive technology with motor speed frequency control ensures stable operation and enhanced cutting accuracy, producing perfectly flat end faces.

Key features

• Variable cutting length: Adjustable cutting dimensions within the machine's operational range.
• Precision cutting: Servo-driven system guarantees consistent tissue cutting quality.
• Automatic knife maintenance: Fixed-angle automatic knife grinding wheel with compressed air cooling system and optional special cooling fluid integration for optimal blade sharpness and longevity.

Intelligent control systems maintain cutting precision while accommodating various paper product specifications. The integrated knife grinding mechanism with active cooling minimizes thermal deformation during prolonged operation.

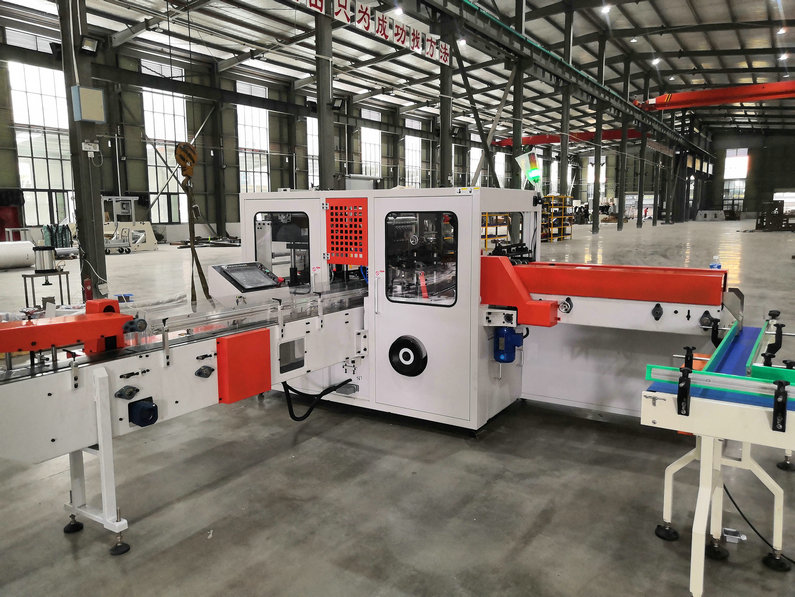

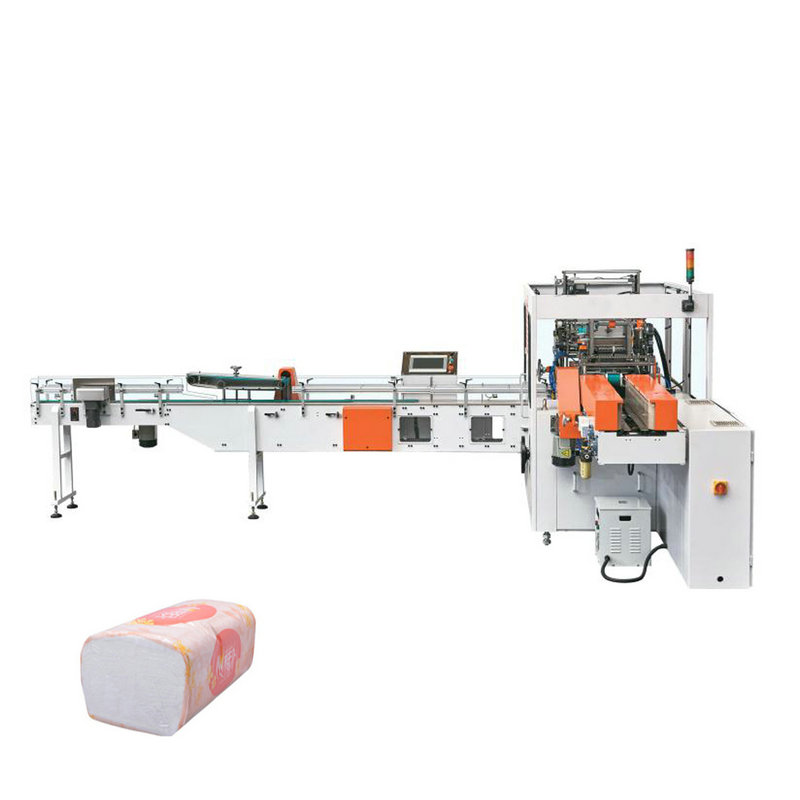

3. XY-BT-298 Automatic Facial Paper Soft Packing Machine

Main performance and structure features

• Wrapping, hemming, and sealing packing method with compact structure and high product appeal.
• Stepless frequency conversion control system with touch screen and PLC for clear display and easy maintenance.
• Auto-putting conveyor for easy connection with automatic production lines, saving labor cost.
• Stepless-speed regulation with double transducer, automatically adjusting packing film length.
• High automation, high specialization, high efficiency, and low trouble rate.
• Fast and simple changeover facility handles different sizes easily.
•

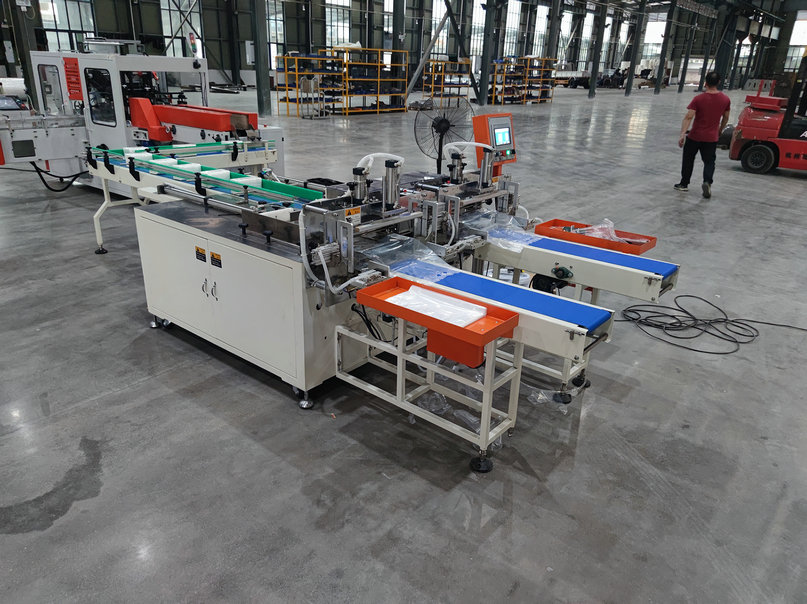

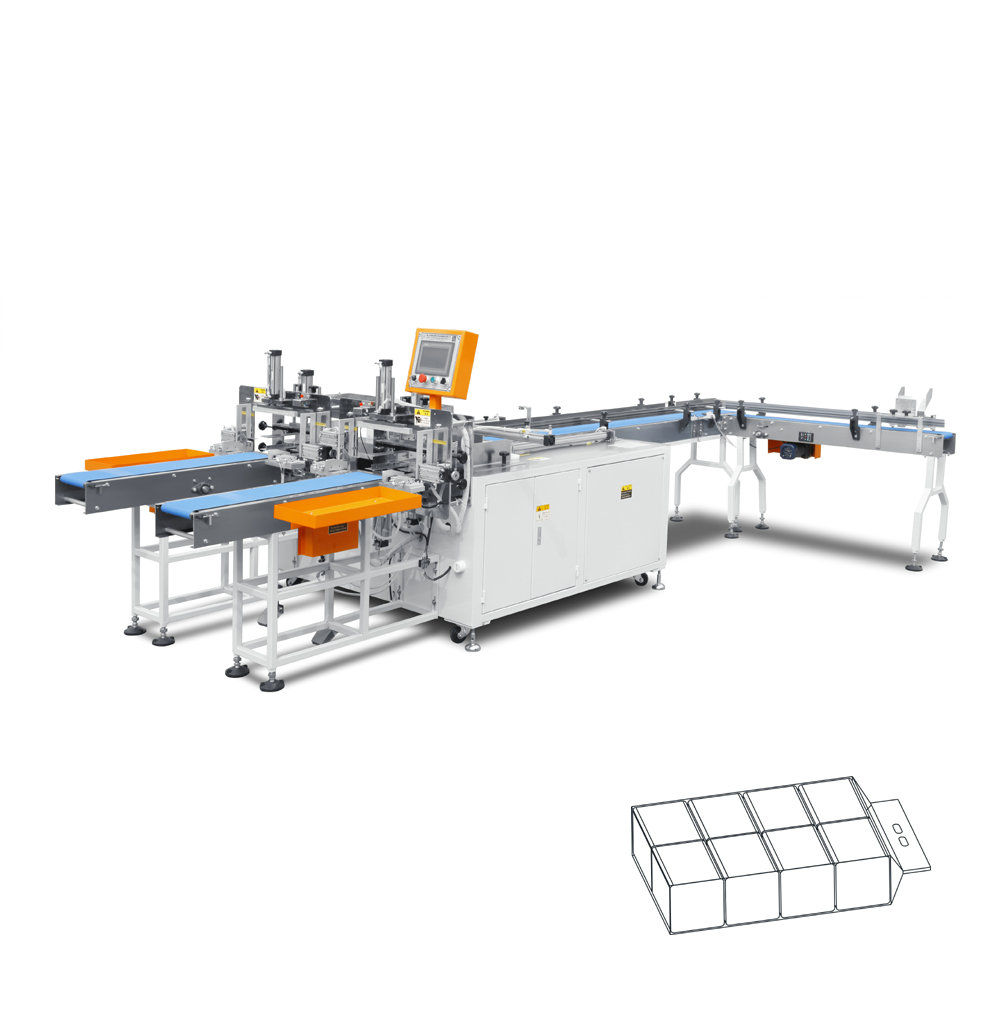

4. XY-GU-26B Semi-Automatic Facial Tissue Bundle Packing Machine

This machine is used for soft-drawing multi-piece middle bag packing, with automatic conveying by belt. It assembles paper-feeding, bagging, sealing, and cutting in one body. PLC control with liquid crystal text display makes parameters easy to set, and temperature control is accurate.

Package sealing is clean and well trimmed. As a semi-automatic machine, it requires only one worker for the bagging step.

For confirmed machine specifications including speed, power, dimensions, and packing details, please refer to the Technical Specifications section of each machine model. Final configuration is to be confirmed with our sales team based on your production requirements.

Frequently asked questions

What finished products can this line produce?

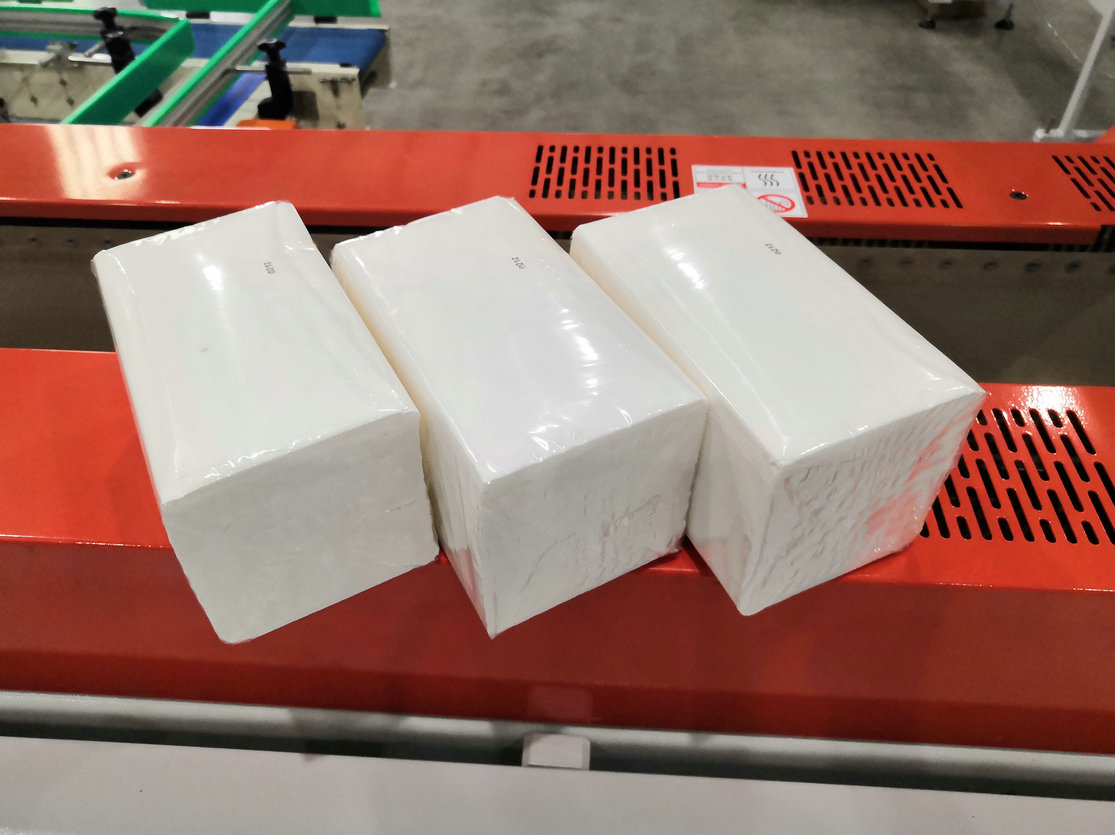

This line produces soft-pack facial tissue in rectangular or square sheet formats, with flexible width settings on the folding machine and adjustable cutting lengths on the log saw. The packing machines handle both single soft bags and multi-piece bundle packing.

How is the line controlled?

The folding machine uses independent servo motor drives with automatic tension control. The packing machines use PLC with touch screen or liquid crystal text display for parameter setting and monitoring.

What maintenance is required?

The log saw includes an automatic knife grinding system with fixed-angle grinding wheel and compressed air cooling to maintain blade sharpness. Routine checks on vacuum pump, pneumatic systems, and packing film alignment are recommended.

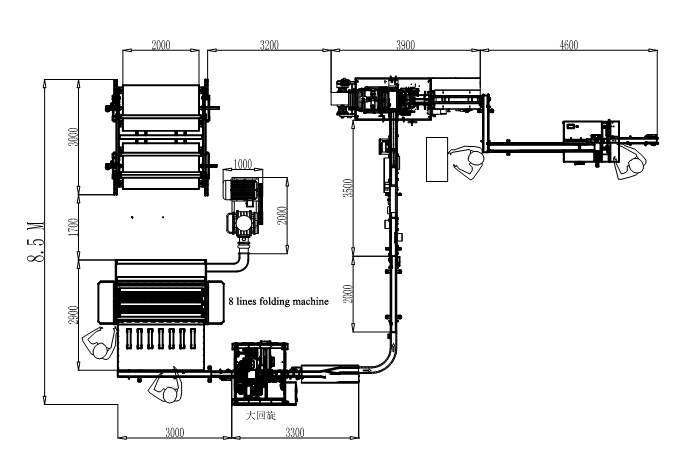

Contact our sales team to confirm the line configuration for your target tissue size, pack count, and factory layout. We can provide detailed specifications, layout drawings, and quotation information for the complete soft bag facial tissue production line.
