Price:
Negotiable
Model:
XY-OQ-7000K
Power:
7.5KW 380V 50HZ 3Phase
Application:
Napkin paper folding machine
Weight:
3 tons
Output:
napkin paper
Packaging Dimension:
6355*1800*1800mm
Machine Size:
Certification:
CE, ISO

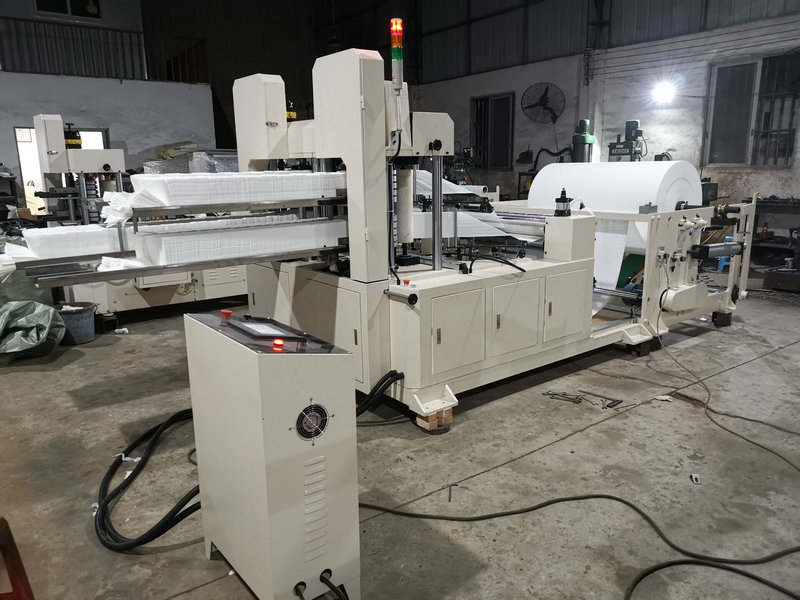

This napkin tissue converting line integrates flexographic printing, steel-to-steel embossing, electronic counting, and band-saw folding into one continuous process. It is designed for tissue converters who need printed, embossed napkins with consistent fold quality and reliable after-sales support.
This machine suits producers of single-use napkins who require 1–2 color flexographic printing, clear pattern definition, and precise stack counting. The configuration supports customization for different finished product sizes and line layouts.
The transmission belt drive configuration provides stable power delivery for continuous folding and converting operations.
The color printing unit uses professional anilox rollers and can be replaced flexibly according to your design needs, supporting 1–2 color applications.
The pattern-matching paper rolling device ensures printed patterns align correctly, delivering a clear and consistent visual result on each napkin.

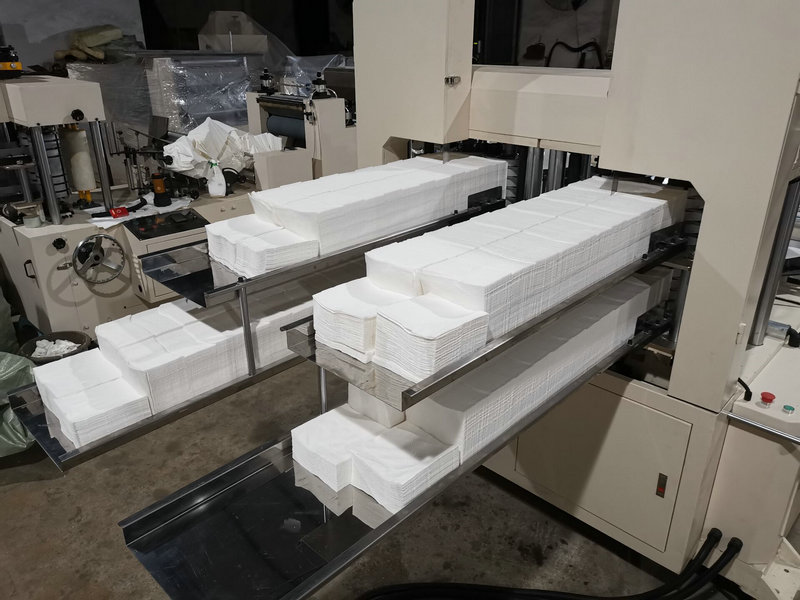

An electronic counting unit manages precise stack counts, with a dislocation row output for organized collection and packing.
The folding plate and manipulator use a band-saw cutting method to form each napkin, supporting consistent folded dimensions.
Other models and configurations can be customized to match your specific production requirements, including size and line integration.
For the complete list of confirmed parameters, please refer to the Technical Specifications section. Final configuration details are confirmed with our sales team based on your model selection.
| Selection Factor | What to Consider |
|---|---|
| Finished Product Size | Unfolded size of 300x300mm and folded size of 150x150mm are standard for this model; confirm your target napkin dimensions before ordering. |
| Jumbo Roll Compatibility | The machine accepts jumbo rolls up to 1200mm diameter with a 76.2mm inner core, which is a common standard for tissue converting lines. |
| Printing & Embossing Needs | Choose 1–2 color flexographic printing and steel-to-steel embossing if your product requires printed patterns and a defined texture. |
| Counting & Output Method | Electronic counting with dislocation row output is suitable for precise stack counts and smooth transfer to packing. |
| Factory Space & Power | Overall dimensions and power consumption depend on the machine model; verify your available floor space and electrical supply with our engineers. |
The jumbo roll (up to 1200mm diameter, 76.2mm core) is mounted on the unwind stand, ready for continuous feeding.
The paper passes through the printing unit, where 1–2 colors are applied using anilox rollers for precise ink transfer.

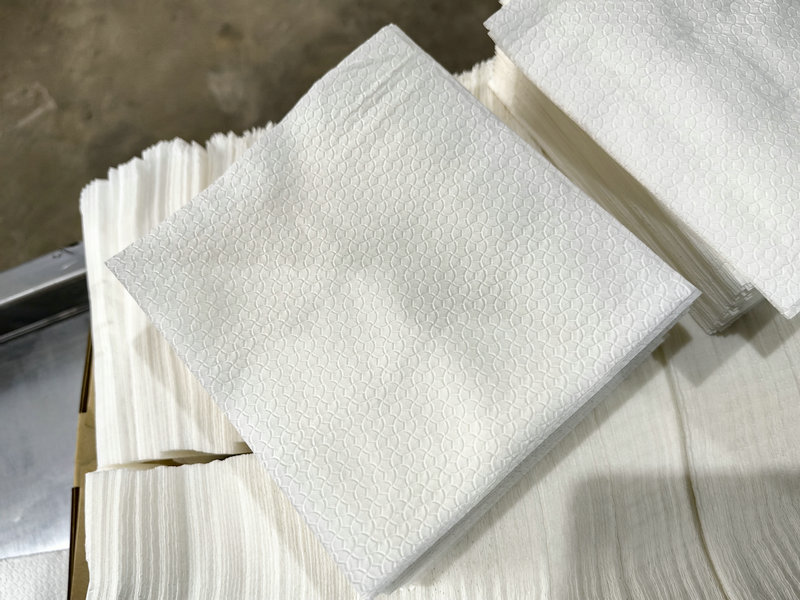

Steel-to-steel embossing creates a defined pattern on the tissue, adding texture and visual appeal.
The folding plate and manipulator form each napkin using a band-saw cutting method, ensuring clean edges and consistent folds.
An electronic counting unit counts each stack, and the dislocation row output organizes napkins for easy collection and packing.
Throughout the process, the machine maintains consistent print registration, embossing depth, and fold accuracy. The electronic counting system ensures each stack meets your specified count before output.
All Xinyun machines come with a one-year guarantee. Within this period, any damaged parts or accessories due to normal operation and non-artificial reasons will be replaced free of charge via DHL or FedEx.
What happens after the warranty expires?After the one-year warranty, spare parts and damaged parts are charged at cost price. Our team remains responsible for solving any machine issues promptly to help you restore production as soon as possible.
Do you provide installation support?Yes, after the machines arrive, we can send a technician to install the production line if needed. The buyer covers the technician's salary and round-trip air tickets, visa fees, food, transportation, and accommodation in the buyer's city.
Can the machine be customized for different napkin sizes?Yes, other models and configurations can be customized to match your specific production requirements. Please contact our sales team to discuss your target finished product dimensions and line layout.
Contact our sales team to confirm the exact machine model, power requirements, overall dimensions, and pricing for your production line. We can also provide a detailed layout proposal based on your factory space.
For more information on our full range of converting equipment, explore our Napkin Paper Machine catalog or review our Flexographic Printing Napkin Tissue Paper Making Machine with Embossing for additional configuration insights.
|
Unfold size of finished products |
300*300mm |
|
Folded size of finished products |
150*150mm |
|
Diameter of jumbo roll paper |
1200 mm |
|
Diameter of jumbo roll inner core |
76.2 mm |
|
Production speed |
2500 pieces/min |
|
Embossing unit |
Steel to steel |
|
Counting unit |
Electronic counting |
|
Machine power |
7.5KW |
|

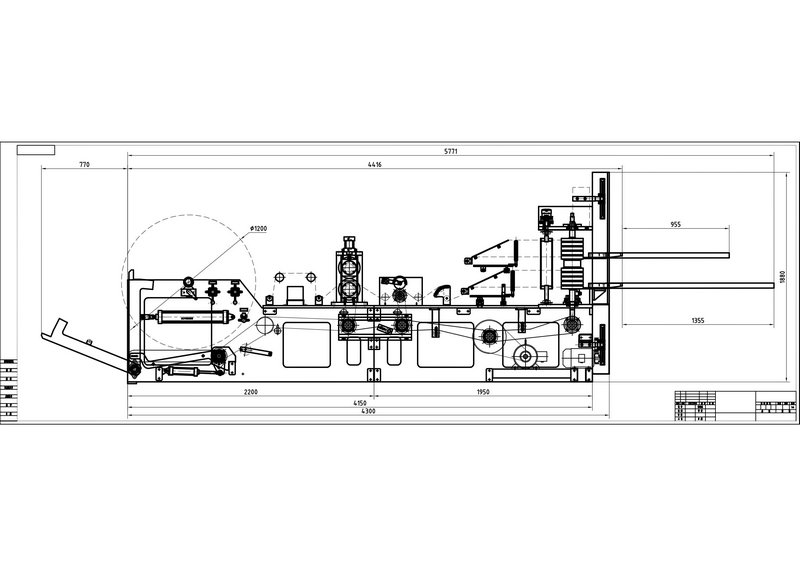

Overall dimension |
6355*1800*1800mm |
|
Weight |
About 2000kg |
This specification sheet defines the core converting parameters for a napkin folding line. Review the finished product dimensions, parent roll compatibility, and utility requirements against your planned tissue grade and packaging setup before ordering.
Selection guidance: The 300 x 300 mm unfolded size with a 150 x 150 mm folded size suits standard single-fold napkin applications. The 1200 mm jumbo roll diameter and 76.2 mm core are common in tissue converting; confirm your parent roll supplier matches these values. The 2500 pieces/min rated speed assumes stable parent roll quality and correct embossing setup.
The specified inner core diameter is 76.2 mm. Confirm your paper supplier can provide cores to this dimension.
The machine is specified for a maximum jumbo roll diameter of 1200 mm.
No. The specification covers the converting line (folding, embossing, counting). Finished napkins are transferred to a separate packing solution.
Request a detailed quotation with your target napkin size, ply, and packing requirements to confirm configuration compatibility.
Color Printing Embossing Napkin Folding Machine is to cut through the paper tray after printing, embossing and automatically folded into a square or rectangular-shaped napkin open. Clear and bright with printing, overlay accuracy, high speed stationary, is the processing of special equipment for high-grade napkins.
This semi automatic napkin tissue packing machine packs facial tissue and napkins at 12-20 bags per minute with PLC control and precise sealing....
Discover a napkin tissue paper making machine with flexographic printing, embossing, and electronic counting. It handles jumbo rolls up to 1200 mm and produces...
1. XY- OQ-7000A Good quality color printing napkin paper folding machine 2. XY-GU-27 Semi automatic napkin paper packing machine...
