Price:
Negotiable
Model:
XY-TQ-A-D
Power:
70KW 380V 50HZ 3Phase (depends on the jumbo roll width)
Application:
small toilet paper kitchen towel maxi roll paper making machine production line
Weight:
15 tons (depends on the jumbo roll width)
Output:
small toilet paper / kitchen towel / maxi paper towel roll
Packaging Dimension:
20000*25000*2100mm
Machine Size:
Certification:
CE, ISO

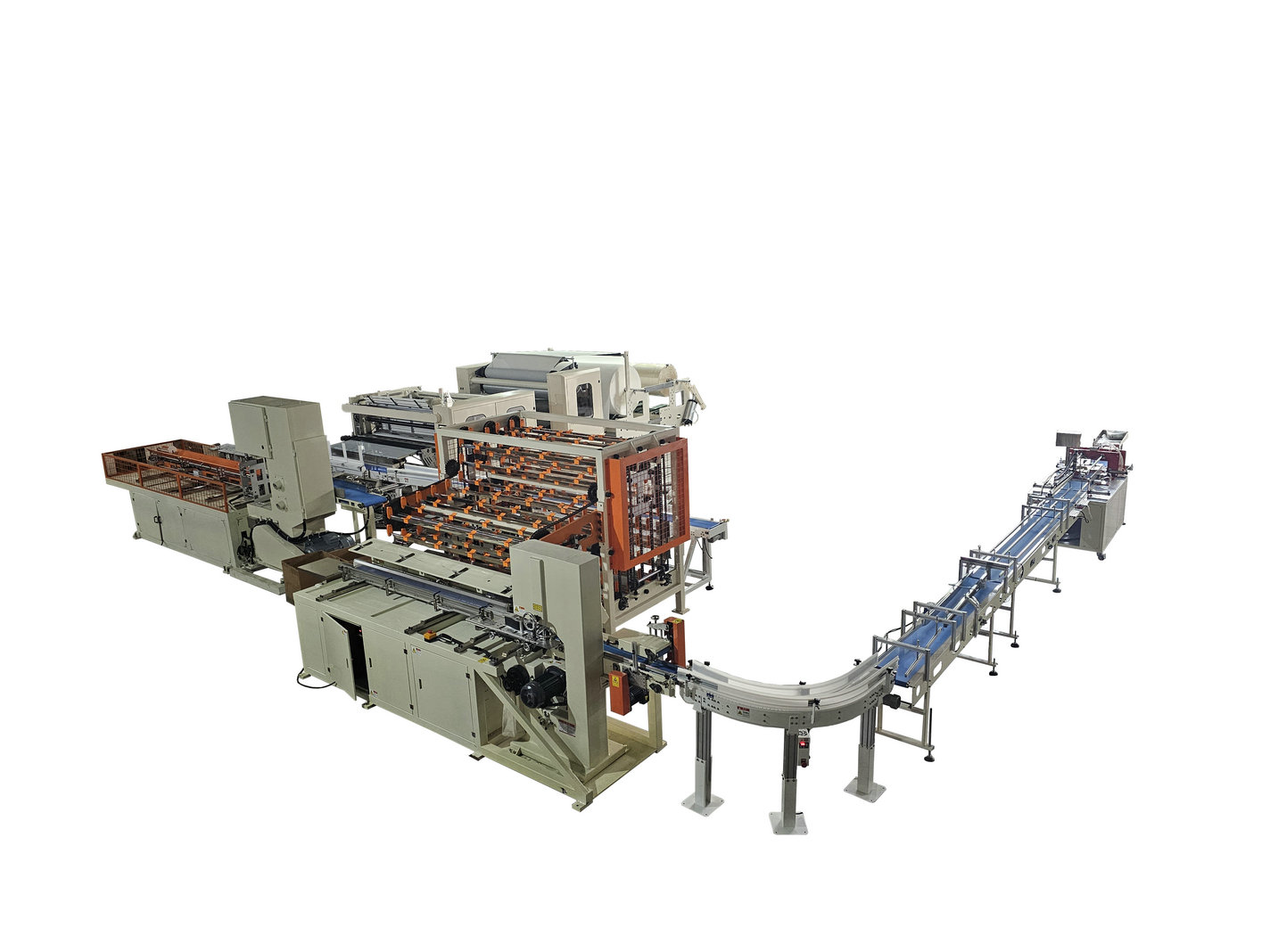

This page presents the Xinyun integrated converting line for kitchen towel and toilet paper maxi rolls. The line is arranged in sequence from parent roll converting to finished pack, covering rewinding, log accumulation, band saw cutting, and heat shrink wrapping. Each machine below is shown in its operating position within the line.
The XY-TQ-B is the first converting stage, taking jumbo parent rolls and producing laminated or single-ply maxi logs. It is suited for kitchen towel and toilet paper converting where glue lamination, embossing, and firm rewinding are required before cutting.
Positioned between the rewinder and the saw, the XY-203 receives finished logs and feeds them into the cutting stage at a controlled rate. It helps balance the flow when the rewinder output is faster than the saw intake, reducing manual handling and keeping the line continuous.

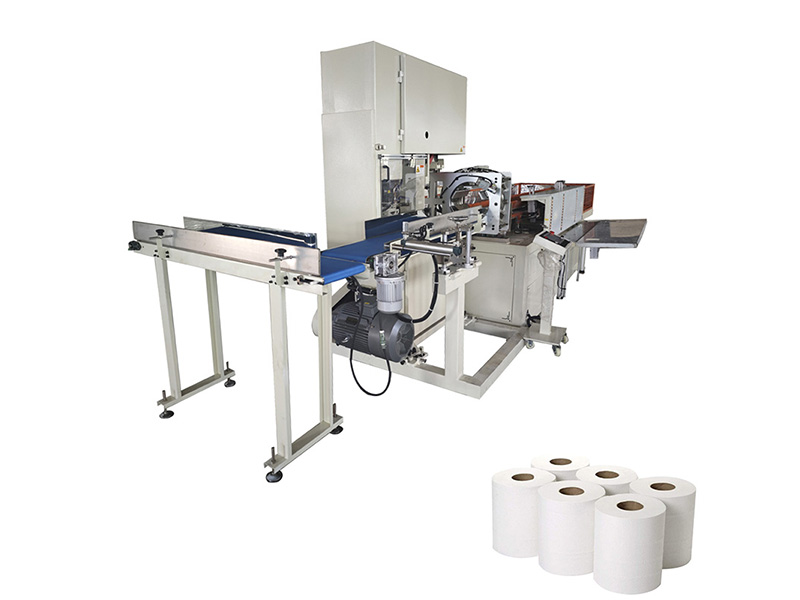

The XY-AI-400 cuts small-diameter logs into finished rolls for retail kitchen towel and toilet paper. It is a band saw type cutter with automatic log feeding and cutting cycle, suitable for production lines where roll diameter stays within the small roll range.

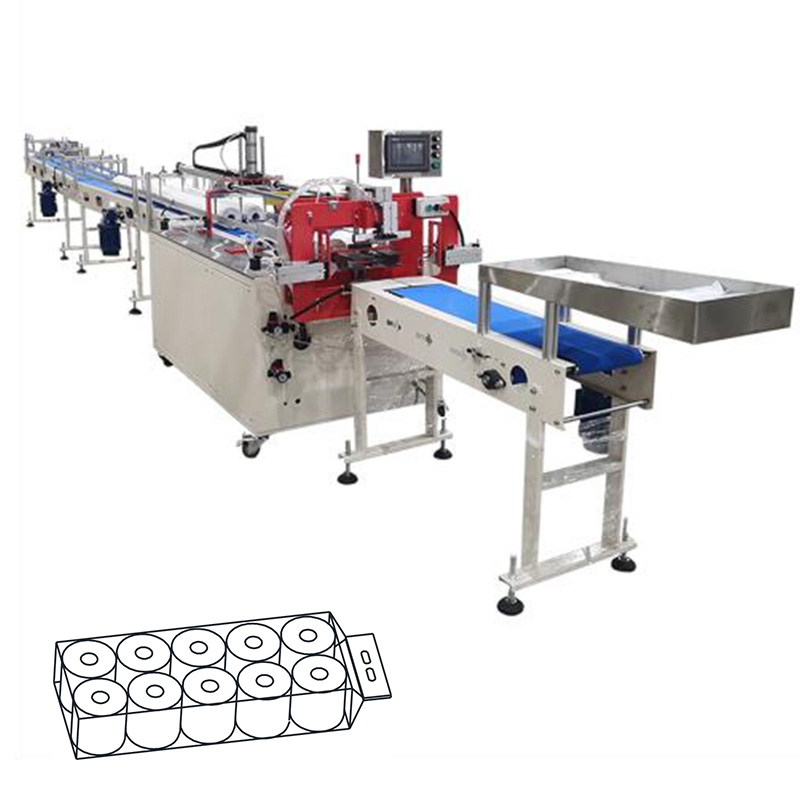

The XY-AI-398A packs finished rolls into 10-roll poly bags. It is a semi-automatic packing station that fits lines with moderate packing volume, where an operator loads rolls and the machine completes the bagging cycle.

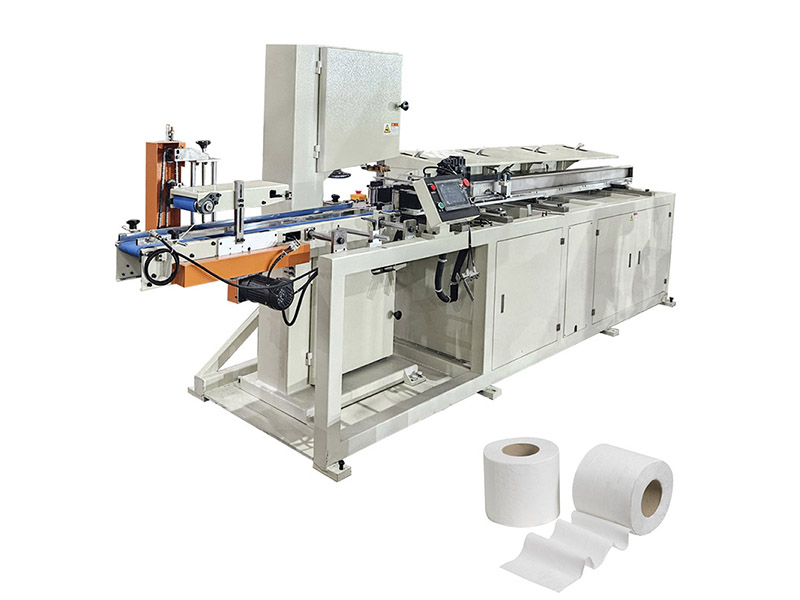

For larger maxi roll diameters, the XY-AI-500 provides automatic band saw cutting with higher log length capacity. It is the cutting stage for jumbo kitchen towel and toilet rolls that require a larger blade and heavier log handling.

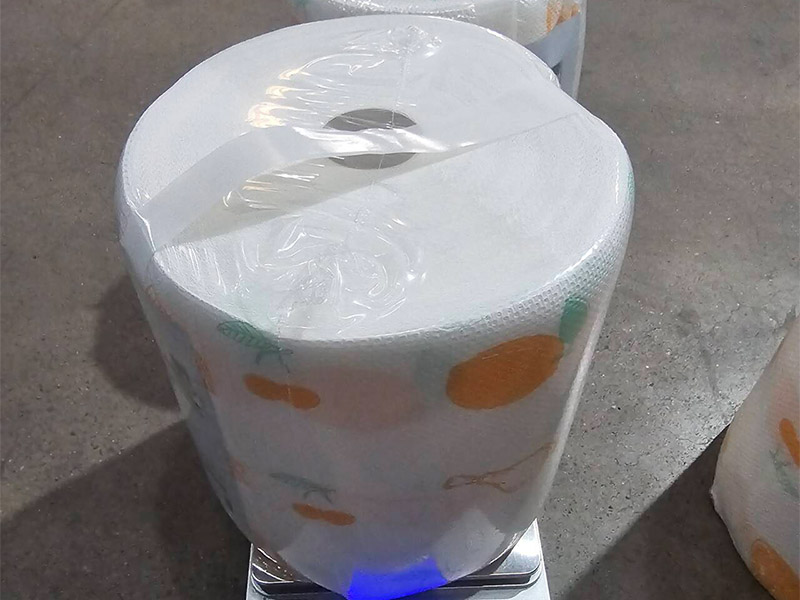

The XY-TN-269 applies heat shrink film around single or bundled maxi rolls, completing the packaging stage. It is the final machine in this line configuration before palletizing.

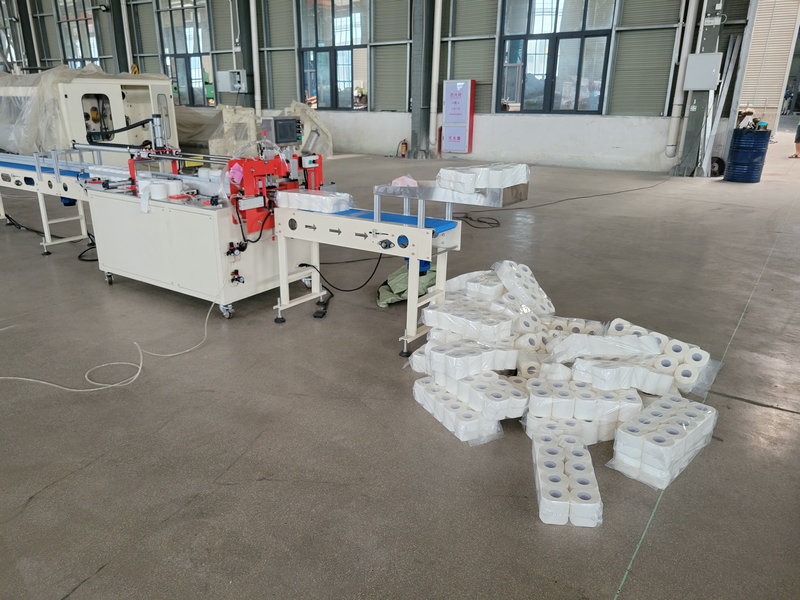

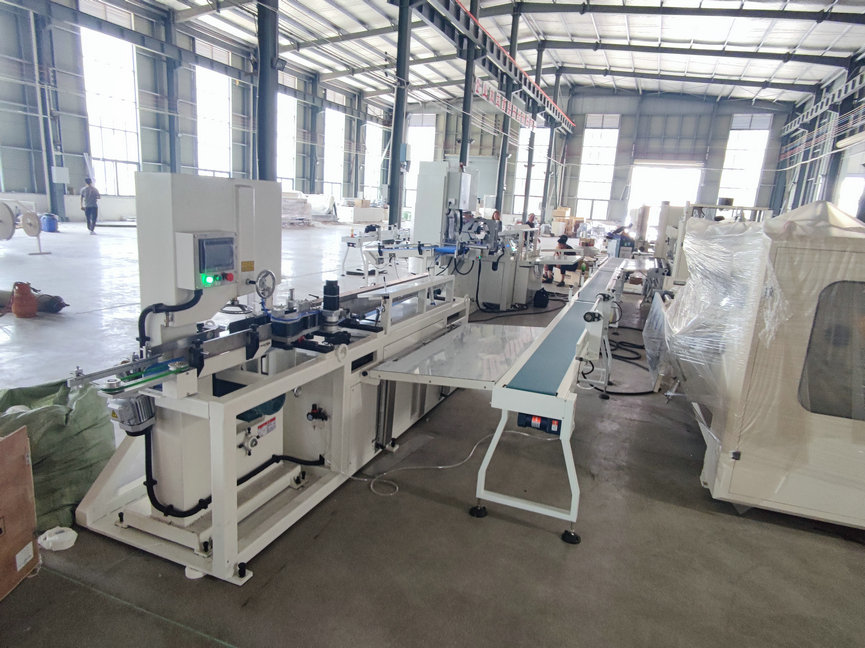

The images below show Xinyun machinery installed in operating tissue converting facilities. They illustrate typical factory layout and machine finishing as delivered.
Choose the line stages according to your finished product and daily output target:
Yes. The XY-TQ-B is designed for both paper grades. The lamination and embossing configuration is set according to the parent roll structure you plan to convert. Confirm your base paper ply and grammage with Xinyun before ordering.
The XY-203 serves as the buffer and feeding stage between rewinding and cutting. If your rewinder output is lower than the saw intake, a simpler log stand may be enough. The accumulator becomes necessary when you want to keep the saw running while the rewinder is unloading.
The XY-AI-400 is for small finished roll diameters in the 80–120 mm range. The XY-AI-500 handles larger maxi roll diameters up to 280 mm. Choose the saw according to the finished roll diameter you sell.
No. The XY-AI-398A is a 10-roll packing machine for small finished rolls. For maxi rolls, use the XY-TN-269 heat shrink wrapping machine.
Send Xinyun your parent roll width, finished roll diameter and length, daily output target, and factory floor plan. The sales team will confirm the machine sequence, floor space requirement, and utility connections for your project.
This configuration guide details a complete converting line for toilet paper and kitchen towel production, from parent jumbo roll to finished, packed rolls. The line is built around six integrated Xinyun machines, each selected for a specific stage of the converting process. This page provides the verified technical specifications for each unit, allowing you to assess the line's suitability for your production requirements.

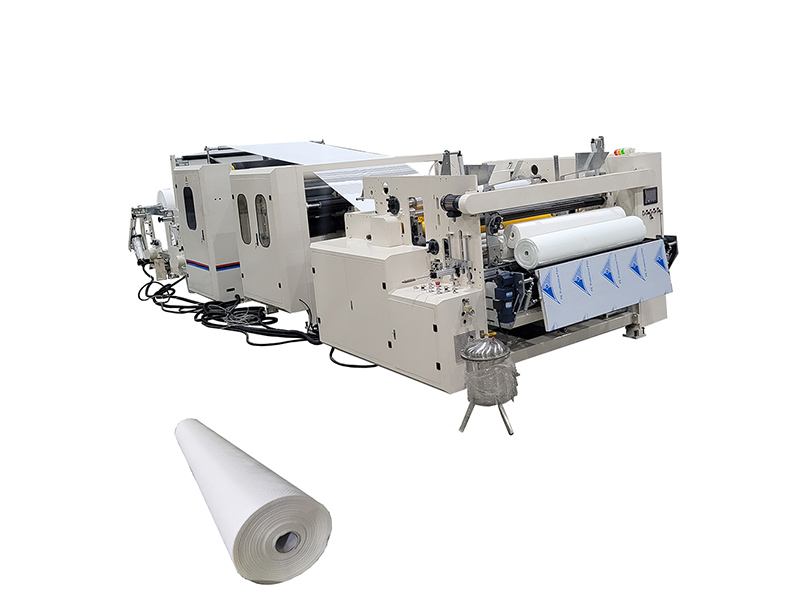

The first stage of the line, this machine rewinds parent jumbo rolls into smaller logs. It features two paper stands with individual motors for precise tension control, ensuring consistent roll density and quality.
| Production Speed | 200 m/min |
|---|---|
| Power | 39 kW (380V, 50Hz, 3Phase) |
| Rewinding Diameter | 90-300 mm |
| Overall Size (L*W*H) | 9000 x 2500 x 2100 mm |
| Machine Weight | About 7 T |
| Paper Stands | 2 Sets (Individual motor tension control) |
| Jumbo Roll Width | 1850 mm |
| Max. Jumbo Roll Diameter | 1200 mm |
| Paper Core Inner Diameter | 76.2 mm |
| Perforation Distance | 90-135 mm (4 Anvil Blades) |
This buffer unit stores finished logs from the rewinder, allowing the downstream cutting machine to operate continuously even during brief upstream stops or log changes. This helps to maximize overall line efficiency.
| Log Width | 1850 mm |
|---|---|
| Log Diameter | Φ95 mm ~ Φ130 mm |
| Log Standings | 50 Logs |
| Accumulate Speed | 20 logs/min |
| Log Qty | 30 Logs |
| Dimensions (L*W*H) | 4000 x 3000 x 5500 mm |
This machine cuts the accumulated logs into smaller finished rolls. It is designed for high-speed production of small rolls, such as standard toilet paper or small kitchen towel rolls.
| Cutting Speed | 80-100 cuts/minute |
|---|---|
| Cutting Blade | Band Saw Blade (Size 3750 x 60 x 0.6) |
| Max. Log Length | 2850 mm |
| Max. Finished Roll Length | 250 mm |
| Finished Roll Diameter | 80-120 mm |
| Cutting Tolerance | ±1.5 mm |
| Power Supply | 7.5 kW, 380V, 60Hz, 3Phase |
| Overall Size (L*W*H) | 2800 x 1500 x 2100 mm |
| Machine Weight | 1100 KG |
This semi-automatic machine packs the finished small rolls into plastic bags. It is configured to handle multi-roll packages in a single layer, providing an efficient packaging solution for standard roll sizes.
| Speed | 5-10 bags/min |
|---|---|
| Finished Product Diameter | 90-120 mm |
| Finished Product Length | 100-120 mm |
| Finished Product Height | 100 mm |
| Package Type | 8, 10, or 12 rolls in one layer |
| Voltage | 3 kW, 380V, 50Hz, 3Phase |
| Overall Dimension (L*W*H) | 8700 x 1000 x 1300 mm |
| Machine Weight | 600 KG |
This automatic machine is designed for cutting larger diameter logs into jumbo or maxi rolls, commonly used for kitchen towels and industrial wipers. It offers a high degree of automation for continuous production.
| Cutting Speed | 20-30 cuts/minute |
|---|---|
| Cutting Blade | Band Saw Blade (Size 5180 x 100 x 1.05) |
| Max. Log Length | 2800 mm |
| Finished Roll Diameter | 150-280 mm |
| Power Supply | 15 kW, 380V, 60Hz, 3Phase |
| Overall Size (L*W*H) | 5300 x 2350 x 2200 mm |
| Machine Weight | 2700 KG |

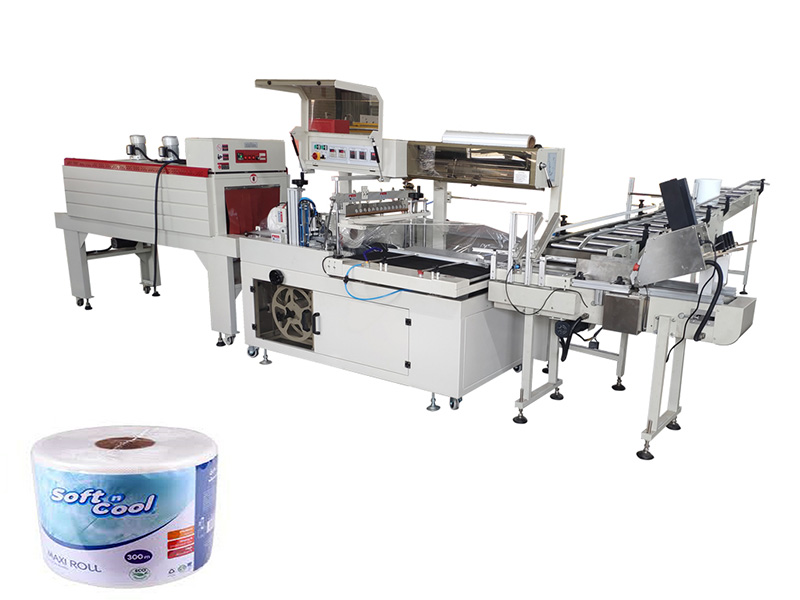

The final stage in the maxi roll line, this machine automatically wraps individual rolls in POF film and applies heat to create a tight, protective seal. It includes a labeling function for branding and product information.
| Speed | 18-25 rolls/min |
|---|---|
| Finished Product Diameter | 150-250 mm |
| Finished Product Height | |
| Packing Size (Width + Height) | |
| Applicable Film | POF Folded Film |
| Voltage | 380V, 50Hz, 3Phase |
| Overall Dimension (L*W*H) | 4900 x 1450 x 1500 mm |
| Machine Weight | 800 KG |
| Additional Function | Labeling Function |
This line is presented as a complete solution, but each machine can be configured individually to match your specific product mix and factory layout. The specifications listed are for the standard configurations. Please note that the power supply requirements vary between machines (50Hz vs. 60Hz), which is an important consideration for your factory's electrical infrastructure. For a detailed line layout and integration proposal, please contact our engineering team with your specific requirements.
To receive a tailored line configuration, detailed layout drawings, and a quotation, please provide your target finished product specifications (roll diameter, length, and packing type) and your required daily output. Our team will respond with a proposal based on these verified machine specifications.
5. XY-AI-500 Automatic maxi roll band saw cutting machine
6. XY-TN-269 Automatic maxi paper towel roll heat shrinking wrapping machine
From jumbo roll paper into the small toilet paper / kitchen towel / maxi paper towel roll, 3 in 1 multifunctional tissue paper production line, It’s best choice for the producing small toilet paper / kitchen towel / maxi paper towel roll.
