Price:
Negotiable
Model:
XY-TN-269
Power:
15KW 380V 50HZ 3Phase
Application:
Maxi roll paper heat shrink packing machine
Weight:
1.5 tons
Output:
label maxi roll paper
Packaging Dimension:
6890*4050*1750mm
Machine Size:
Certification:
CE, ISO

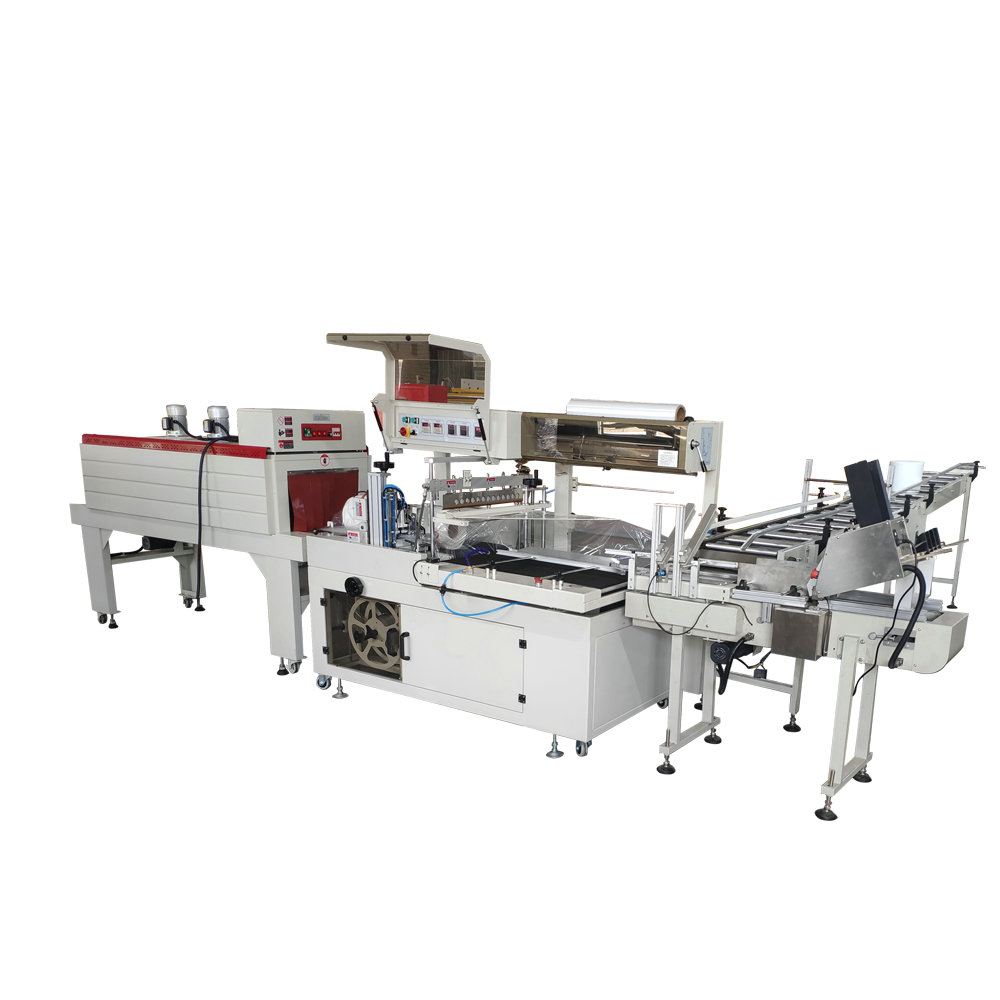

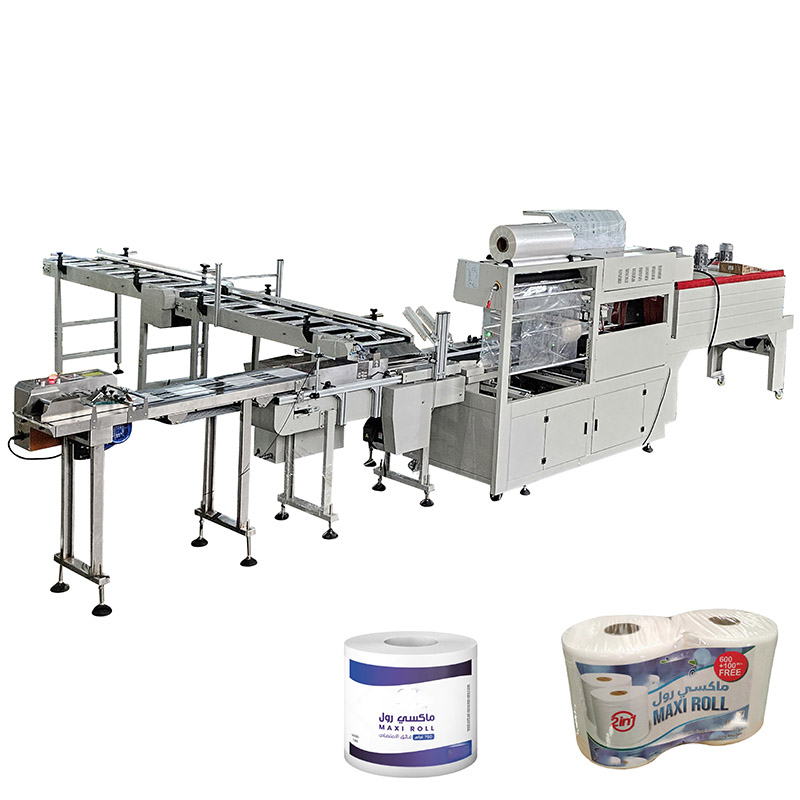

This line pairs a dedicated cutting and sealing machine with a temperature shrink tunnel, giving tissue converters a compact way to wrap maxi rolls, jumbo rolls, and similar paper products in POF film. The two-stage design separates precise sealing from controlled shrinking, which helps produce neat, secure packs ready for labeling, palletizing, or shipment.

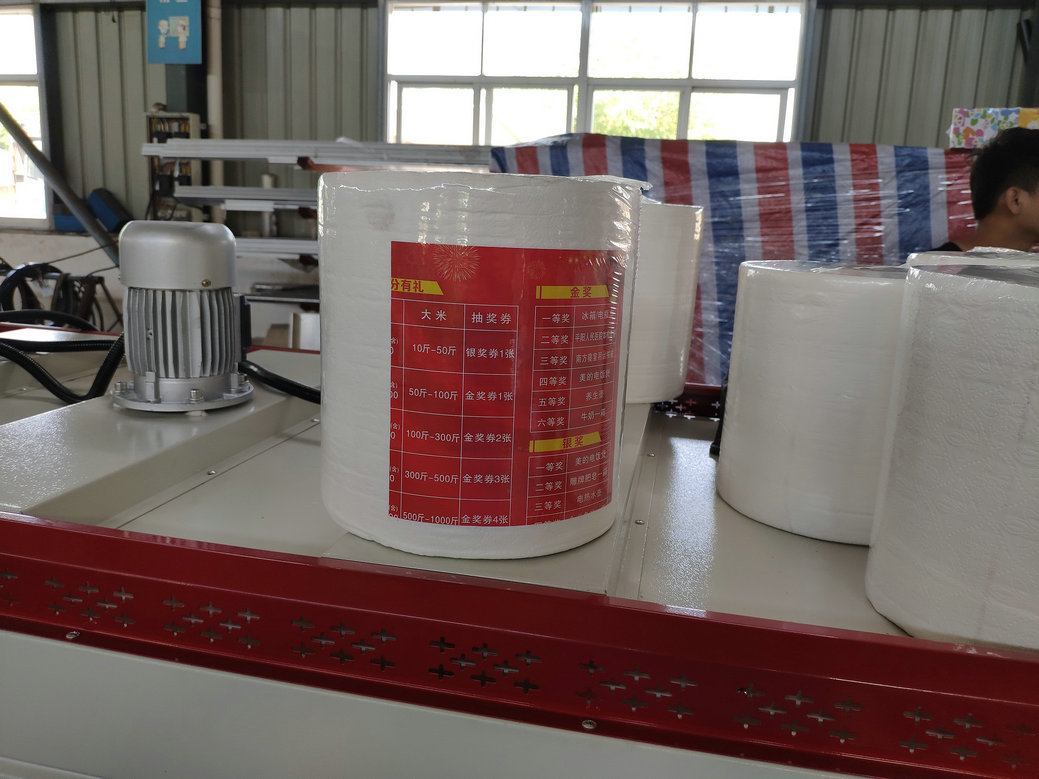

If your operation packs large-format paper rolls—such as maxi rolls or jumbo toilet tissue—this line addresses the two tasks that most affect pack quality: consistent sealing and even film shrinkage. The cutting and sealing machine forms the pack at up to 40 packs per minute, while the shrink tunnel applies heat to tighten the film around the roll. The result is a stable, dust-resistant package that protects the product through storage and transport.
Separate sealing and shrinking stations let operators tune each stage independently. This is especially useful when running different roll heights or film types, because the sealing temperature and shrink tunnel heat can be adjusted without compromising the other function.
The cutting and sealing unit is rated at 20–40 packs per minute, which suits mid-speed converting lines that need steady, repeatable packing rather than extreme throughput. The shrink tunnel runs at 0–10 m/min, matching the pace of the sealing stage for continuous flow.
With a combined machine footprint of roughly 1.5 m by 0.75 m for the sealer and 1.6 m by 0.7 m for the shrink tunnel, the line fits into facilities where floor space is shared with rewinding, log sawing, or other converting equipment.
| Parameter | Cutting & Sealing Machine | Temperature Shrink Machine |
|---|---|---|
| Power Source | 220V 50Hz/60Hz | 380V 50/60Hz |
| Rated Power | 1.35 kW | 9.6 kW |
| Sealing Size | L550 × W450 mm | 450 × 220 × 120 mm |
| Packing Speed | 20–40 packs/min | 0–10 m/min |
| Packaging Size | L450 × W400 × H120 mm | 450 × 220 × 120 mm |
| Machine Size | L1500 × W750 × H1360 mm | L1600 × W700 × H1300 mm |
| Weight | 600 kg | 400 kg |

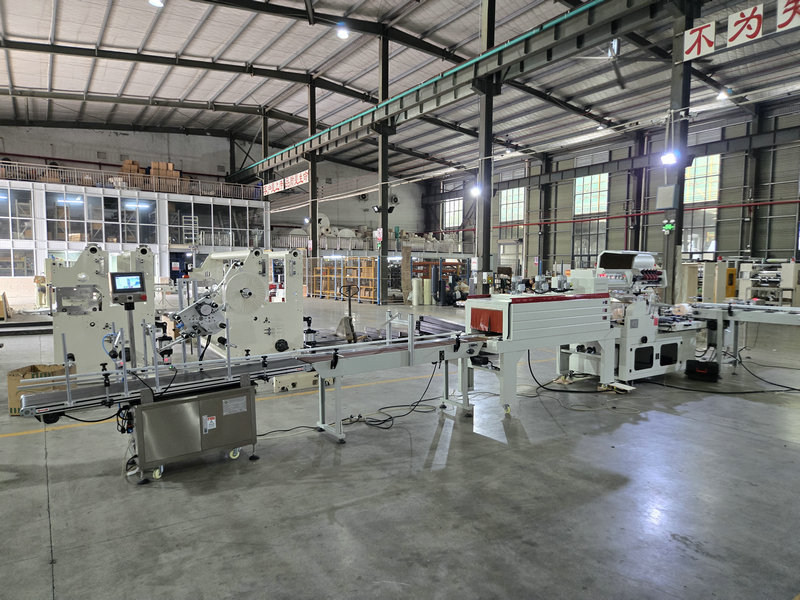

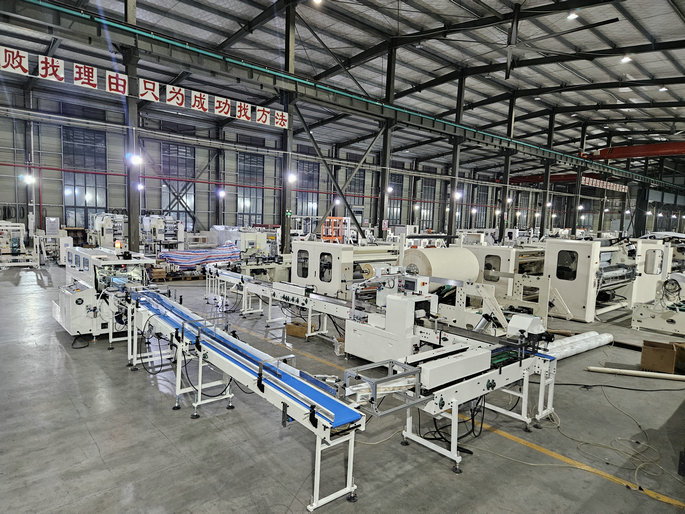

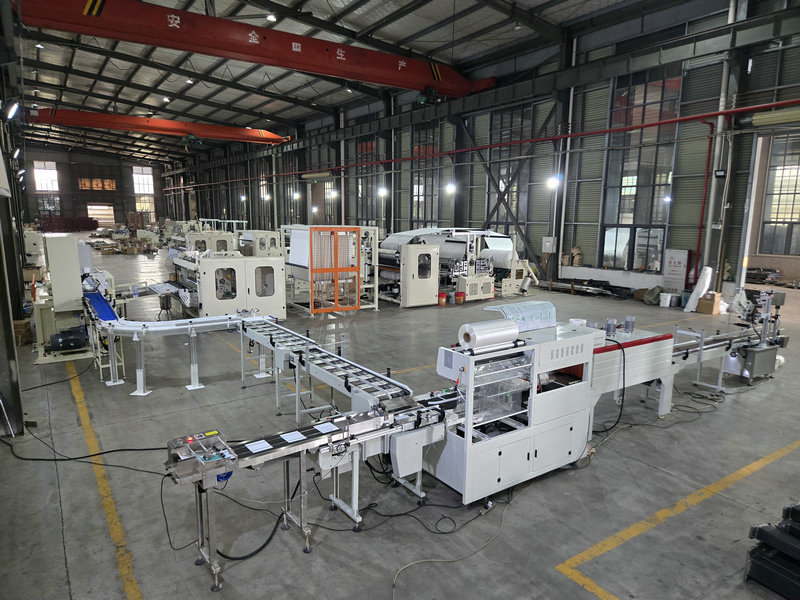

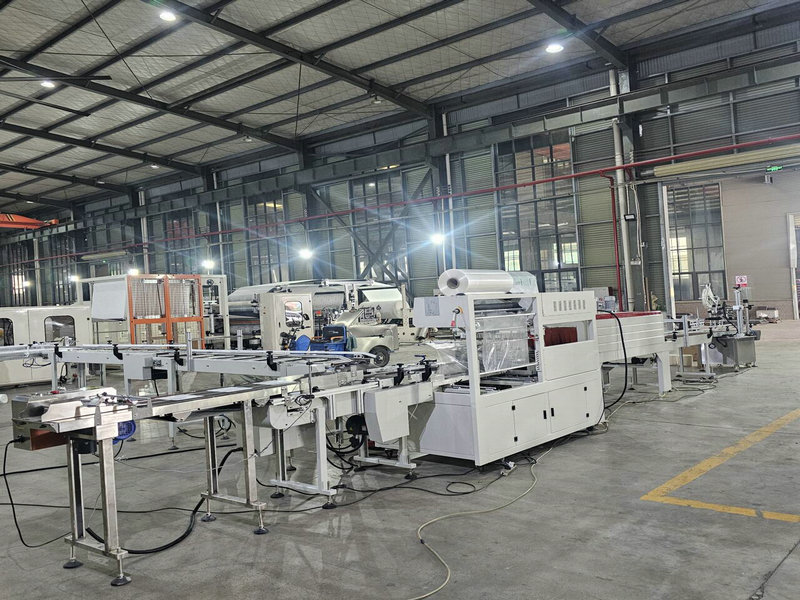

Xinyun builds this shrink wrapping line in its own converting machinery factory, where sheet metal fabrication, assembly, and quality checks are carried out in-house. The images below show the production environment and finished machines ready for delivery.
This line is designed for POF folded film, which responds well to controlled heat shrinking and produces a clear, tight wrap around the roll. Always confirm film grade and thickness with your supplier to match the sealing temperature range of the machine.
The sealing size on the cutting and sealing machine is L550 × W450 mm, and the packaging size is L450 × W400 × H120 mm. Rolls that fit within these dimensions can be processed. For taller or wider rolls, please discuss your specific dimensions with the Xinyun sales team to confirm suitability.
The cutting and sealing machine requires a 220V, 50Hz/60Hz single-phase supply, while the shrink tunnel needs a 380V, 50/60Hz three-phase supply. Confirm your local power availability before installation, as this affects both machine performance and safety.
Tell the Xinyun team about your roll dimensions, target packing speed, and available floor space. They can confirm whether this cutting, sealing, and shrink tunnel combination fits your converting line, and advise on film selection and installation requirements.
| Speed | 18–25 rolls/min |
|---|---|
| Diameter of finished products | 150–250 mm |
| Height of finished products | |
| Packing size | Width + Height |
| Applicable film | POF folded film |
| Voltage | 15 kW, 380 V, 50 Hz, 3-phase |
| Overall dimension | 4900 × 1450 × 1500 mm |
| Weight | 1200 kg |
| Labeling function | Included |
