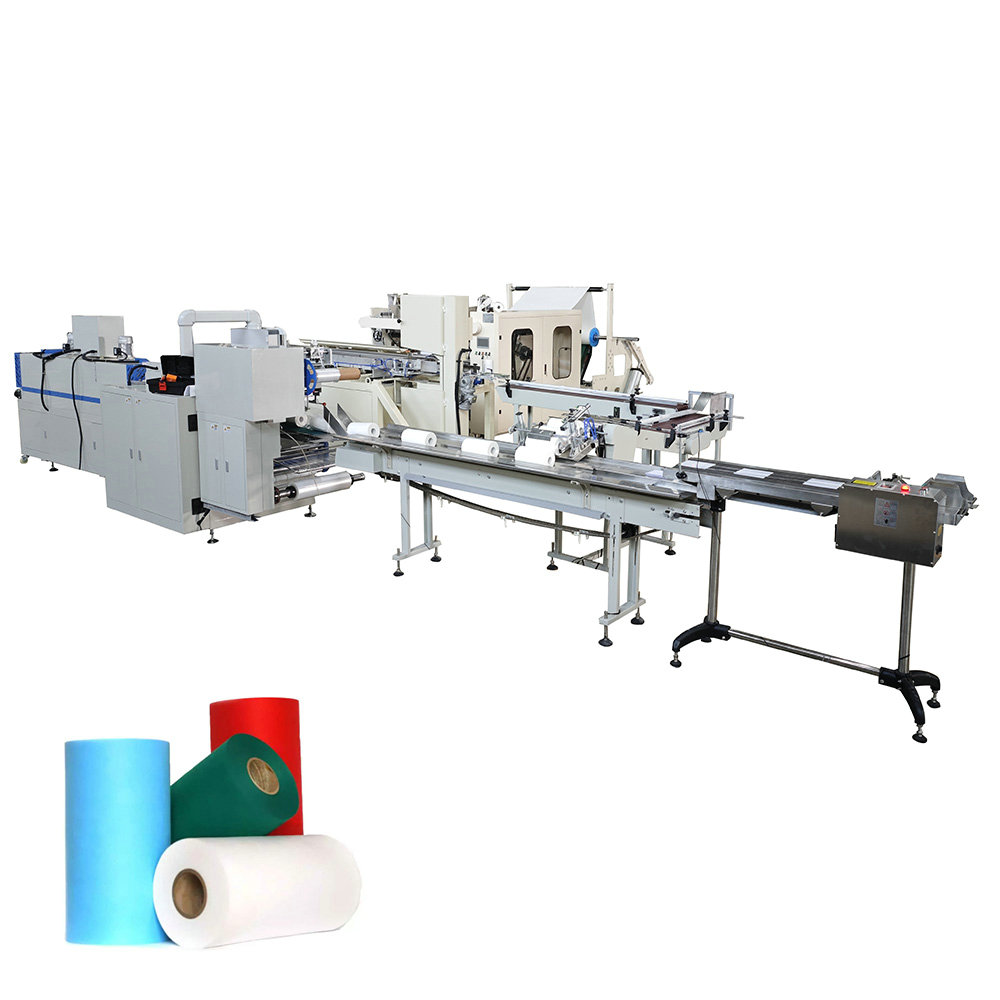

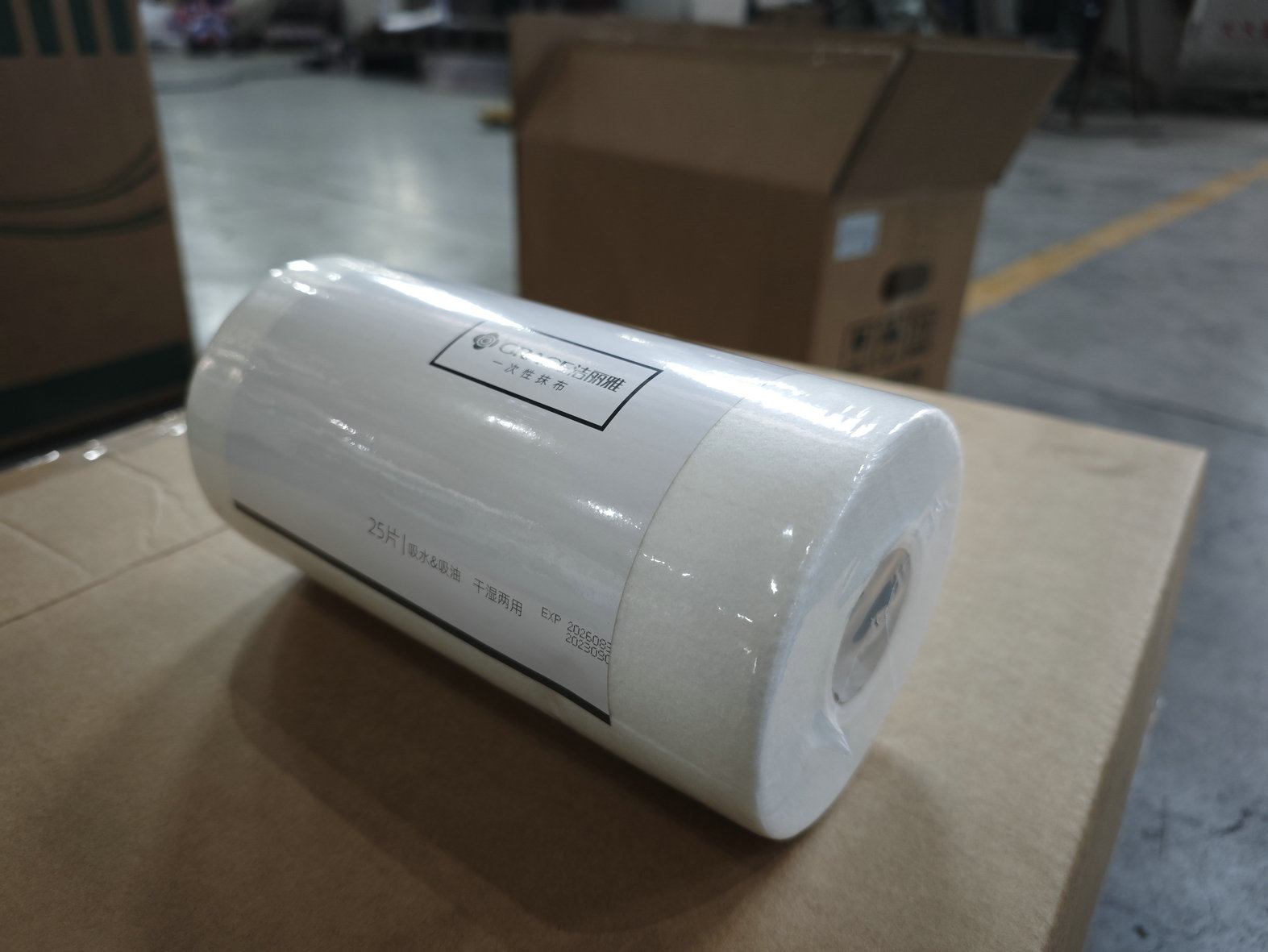

Fully automatic heat shrinking wrapping non-woven fabric roll machine production line

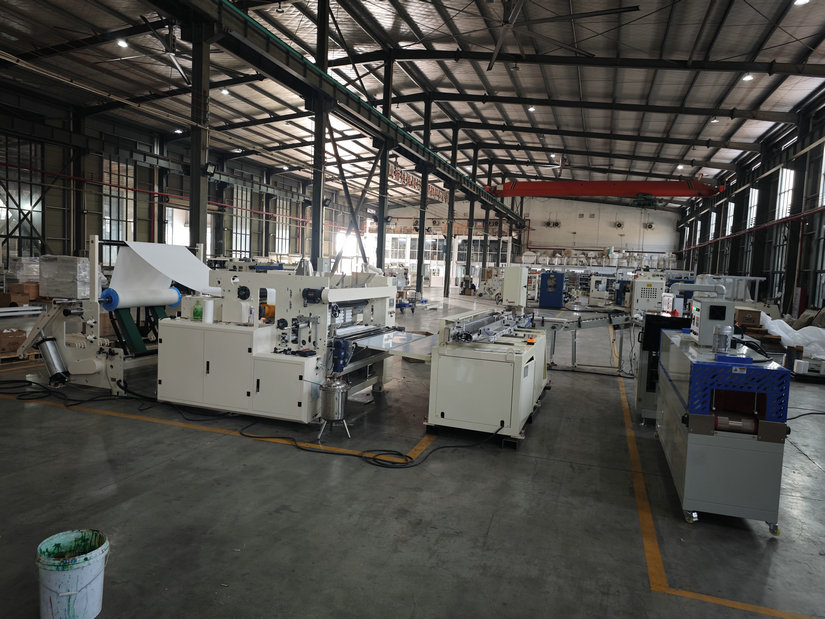

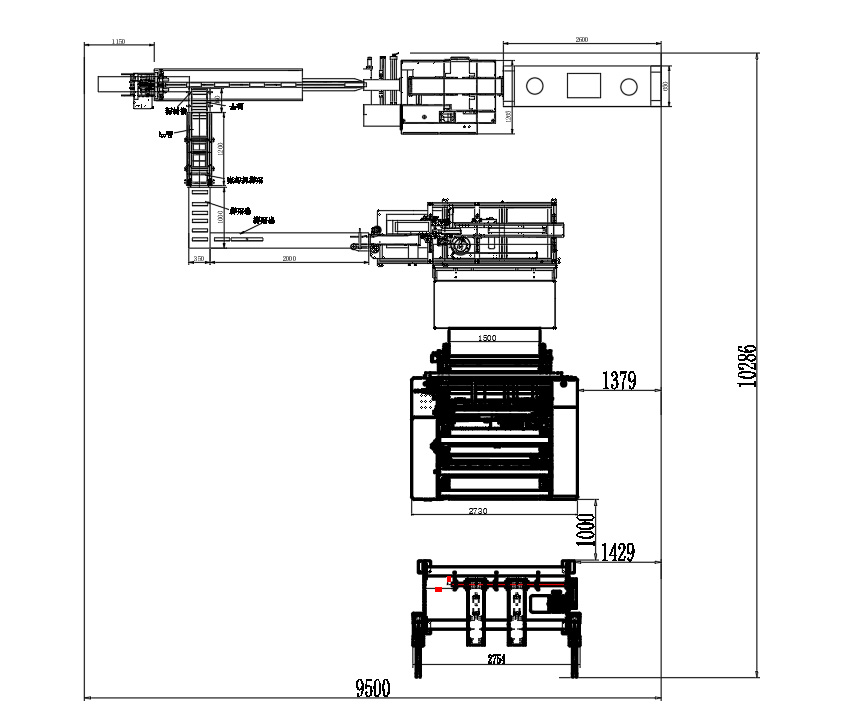

This production line including 3 machines:

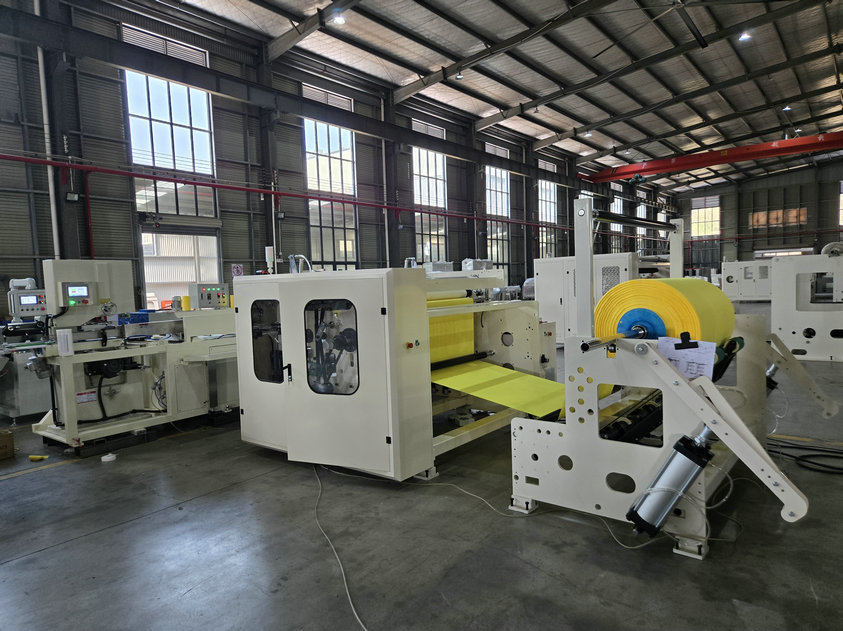

1. XY-TQ-B Automatic non woven roll rewinding machine

Function and Features:

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.

2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

7. Adopt jogging switches for wearing the paper, easy and safe to operate.

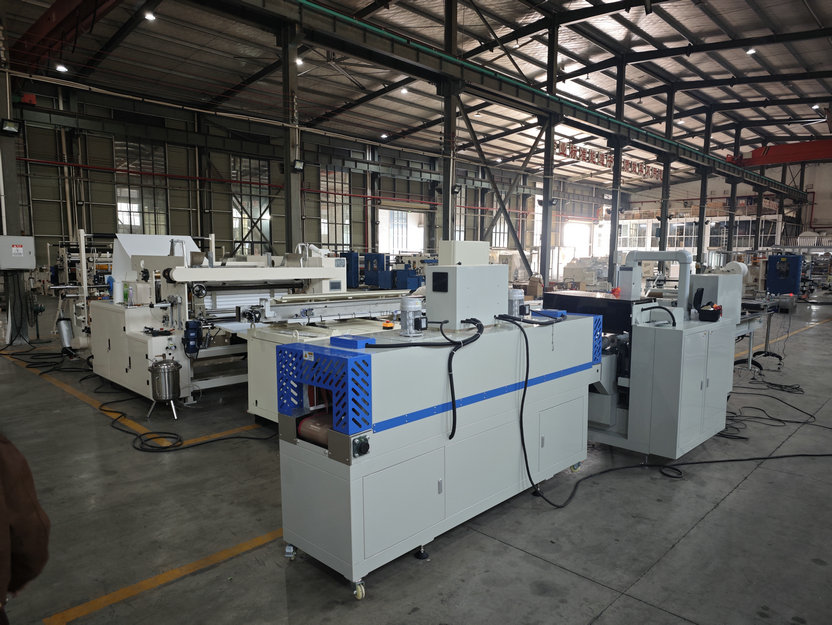

2.XY-AI-400  Automatic non woven roll band saw cutting machine

Feature and function:

1、When the paper cannot be cut down, the equipment will automatically stops and gives an alarm;

2、The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;

3、The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product;

4、When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;

5、The waste paper head and paper end can be automatically sorted;

6、The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;

7、The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency

Performance characteristics:

Driven by three servo motors, the machine is easy to operate, highly stable, and offers high packaging efficiency. With fewer mechanical parts, the failure rate is significantly reduced, making maintenance easier and noise reduction more efficient.

The reciprocating horizontal sealing blade design is aesthetically pleasing and provides excellent sealing performance.

High-sensitivity photoelectric eye color mark tracking and mathematical input of the sealing and cutting position ensure more accurate positioning.

The cantilever frame design makes the machine robust, durable, and long-lasting.

Independent PID temperature control is better suited for various wrapping materials.

A positioning stop function prevents blade sticking and waste of wrapping film.

The simple transmission system ensures more reliable operation and easier maintenance.

Automatic reverse rotation upon cutting the product; easy restart for convenient operation.

Technical data:

1. Production speed: 0-200m /min

2. Power: 15kw (380V 50Hz 3Phase)

3. Diameter of rewinding : 90-280 mm

4. Overall size(mm):9000X2750X2100

5. Weight : About 4T

6. Two sets paper standers((Individual motor to control the tension)

7. 1850mm width of jumbo roll and max. Diameter 1200mm, inner diameter of paper core: 76.2mm

8. Perforation distance: 4 anvil Blades（90-140mm）

2. XY-AI-400 Automatic non woven roll band saw cutting machine

Technical parameter:

1. Cutting speed: 80-100 cuts/minute

2. Cutting blade: band saw blade

3. Toilet log length: max 2800mm

4. Finished toilet roll diameter:80-150mm

5. Power supply: 7.5 kw 380V 50Hz 3Phase

6. Overall size: 5300*2350*2200mm

7. Machine weight: 1500KG

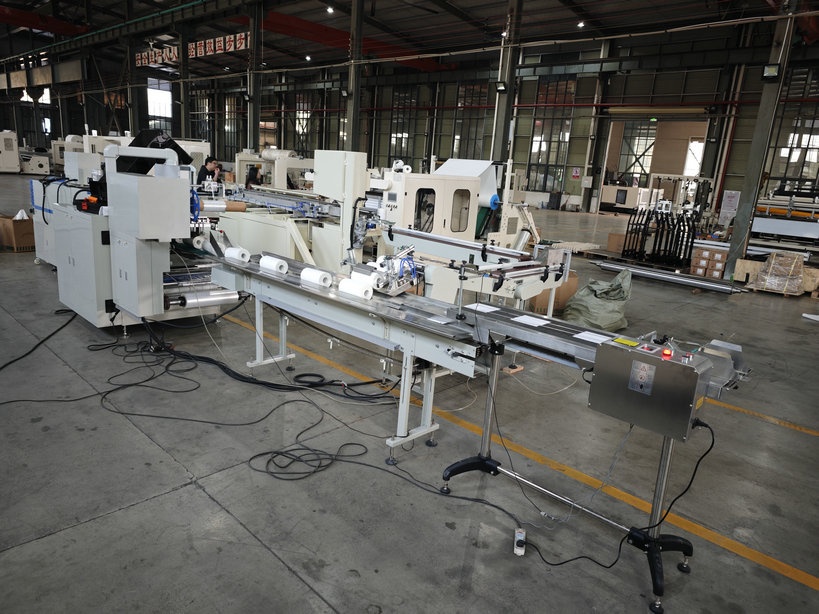

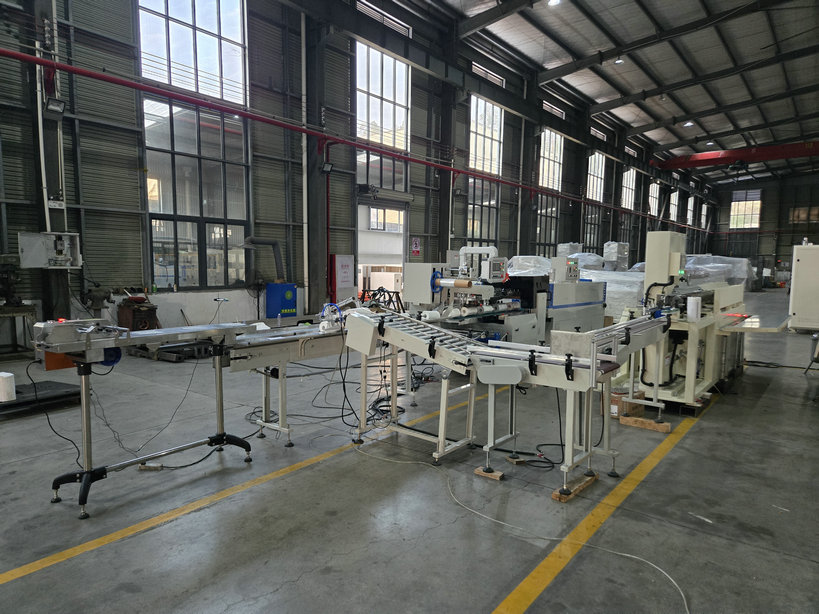

3. XY-TN-269  Automatic maxi roll labeling sealing and shrink wrapping machine

Technology Parameter:

1. Speed:18-25 rolls/min

2. Diameter of finished products: 150-250mm

3. Height of finished products: <300mm

4. Packing size: Width+ Height<650mm

5. Applicable film: POF folded film

6. Voltage: 380V 50HZ 3Phase

7. Overall Dimension: 4900*1450*1500 mm

8. Weight: 800KG

9. With labeling function
