XY-BT-288 V Folding Hand Towel Machine: Full Technical Overview & Features 2026
The XY-BT-288 V Fold Hand Towel Machine is a professional, high-efficiency paper converting equipment designed for producing V-folding hand towels—one of the most widely used disposable paper products in hotels, offices, kitchens, public restrooms, and commercial facilities.
This machine integrates embossing, cutting, interfolding, slitting, and counting in one fully automatic process. It delivers stable speed, neat output, and reliable performance for medium-to-high volume paper towel production.
Key Functions & Characteristics
The XY-BT-288 is built for continuous production with strong stability and easy operation. Its core advantages include:
-
High Production Speed
Running at 80–110 m/min, it supports efficient mass production to meet commercial demand.
-
Steel-to-Steel Embossing Unit
Delivers clear, three-dimensional embossing patterns to improve product texture and absorbency.
-
Automatic Pneumatic Paper Break Separation
Reduces downtime and simplifies paper threading for smoother operation.
-
Precision Synchronous Belt Transmission
Ensures accurate transmission ratio, low noise, and less wear for long-term use.
-
Wide Raw Material Adaptability
Compatible with 33–45 g/m² single-ply base paper, suitable for most commercial hand towel materials.
-
Optional 2-Layer Glue Lamination
Supports double-layer lamination for thicker, softer, and more absorbent end products (customizable).
Core Technical Parameters (XY-BT-288 6L Standard Model)
|
Item
|
Specification
|
|
Unfolded Finished Product Size
|
210(L) × 230±2 mm (custom sizes available)
|
|
Folded Finished Product Size
|
105(L) × 230±2 mm (custom sizes available)
|
|
Raw Material Width
|
480mm, 680mm, 880mm (other widths customizable)
|
|
Raw Material Inner Core Diameter
|
76.2mm (customizable)
|
|
Production Speed
|
0–110 m/min (varies by model)
|
|
Speed Control
|
Frequency conversion speed regulator
|
|
Control System
|
PLC computer controller
|
|
Folding Type
|
Vacuum suction “V” fold
|
|
Transmission
|
Timing belt + flat belt
|
|
Counter
|
Ink marked counter
|
|
Embossing
|
Steel-to-steel embossing
|
|
Slitting
|
Pneumatic dot slitting
|
|
Pneumatic System
|
3HP air compressor (min. 5 kg/cm², provided by customer)
|
|
Total Power
|
10–24 KW
|
|
Overall Dimension
|
Depends on model & configuration
|
|
Weight
|
Depends on size & configuration
|
Ideal Applications
The V-fold hand towels produced by the XY-BT-288 are widely used in:
-
Hotels & resorts
-
Office buildings & commercial centers
-
Restaurants & kitchens
-
Public restrooms & healthcare facilities
-
Supermarkets & retail service areas
The finished products are compact, hygienic, and easy to dispense, perfectly matching the needs of high-traffic commercial environments.
Why Choose the XY-BT-288 V Folding Hand Towel Machine?
-
All-in-one automatic production reduces labor cost and improves efficiency.
-
Stable structure & low noise creates a better working environment.
-
Flexible customization for product size, raw material width, and lamination function.
-
Easy maintenance with durable components and user-friendly PLC control.
-
Suitable for small factories, converters, and medium-sized paper product enterprises.
FAQ
1. Can I customize the finished hand towel size?
Yes. The standard size is 105×230mm (folded), and other dimensions can be customized to your needs.
2. What air compressor do I need to prepare?
You need a 3HP air compressor with a minimum pressure of 5 kg/cm².
3. Is double-layer lamination available?
Yes, 2-layer glue lamination is an optional configuration.
4. What is the maximum production speed?
The machine can reach up to 110 m/min, depending on raw material and model configuration.
Get Your Custom Solution
If you need a full quotation, detailed machine layout, video demonstration, or custom configuration for the XY-BT-288 V Folding Hand Towel Machine, feel free to contact our sales team.
We provide professional overseas after-sales support, including installation guidance, remote debugging, and spare parts supply.

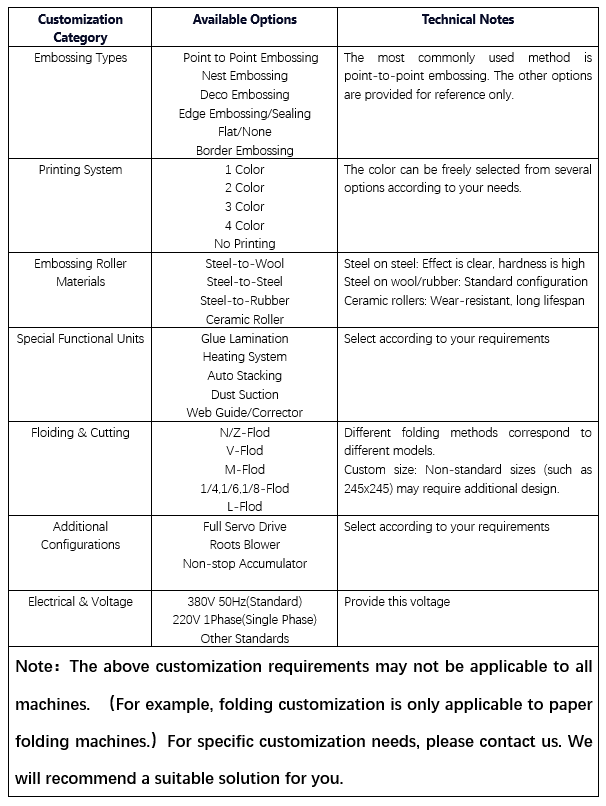

Optional customized solutions
