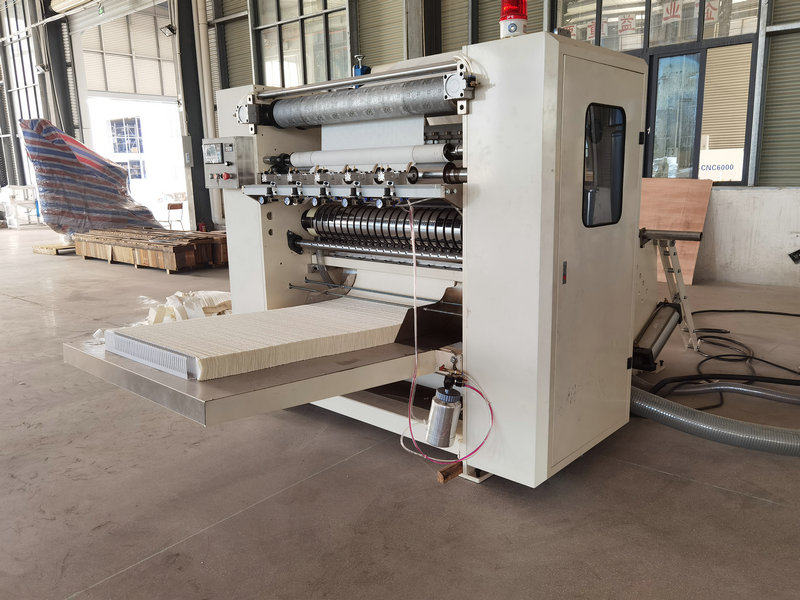

Automatic N Fold Hand Towel Paper Making Machine

Hand Towel Folding Machine Overview

This N-fold hand towel converting line is engineered for tissue converters who need consistent folding, precise counting, and dependable transfer in a compact production footprint. The XY-BT-288N model combines vacuum suction folding with steel-to-steel embossing to produce disposable interfold hand towels from parent rolls.

Verified Key Specifications

• Folding type: Vacuum suction "N" fold
• Production speed: 0–100 m/min (depending on machine model)
• Unfolding size (L×W): 230×230 ±2 mm

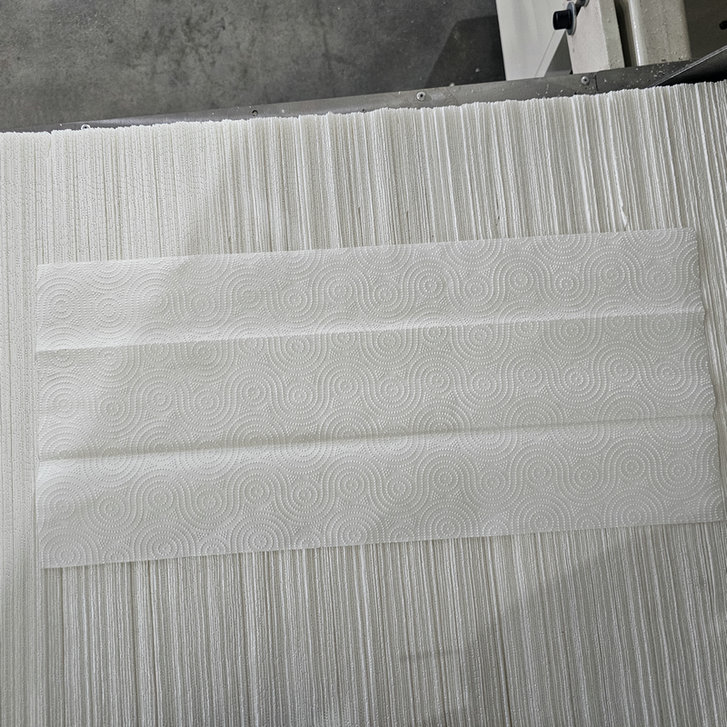

• Folding size (L×W): 76.6×230 ±2 mm
• Base paper range: 33–45 g/m² (single ply)

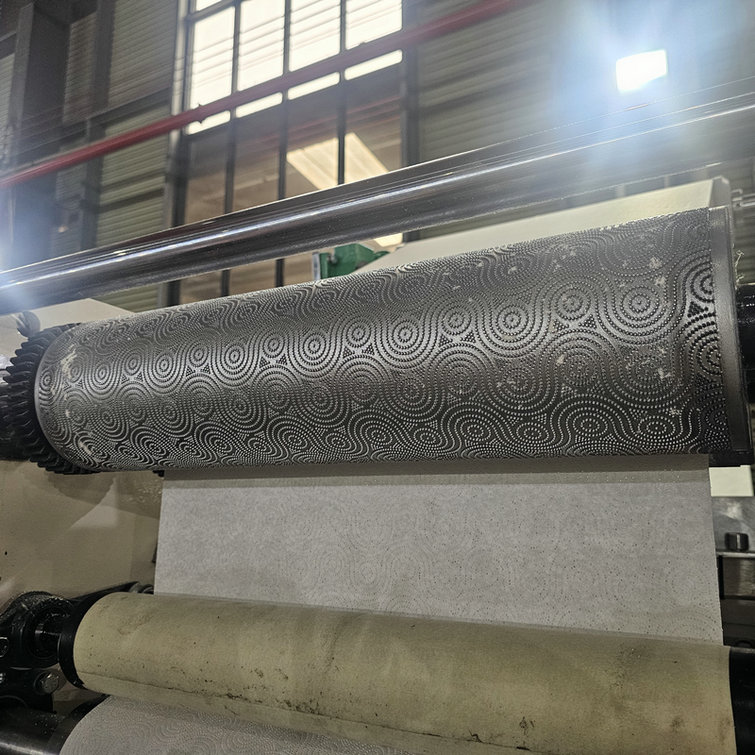

• Embossing unit: Steel to steel
• Slitting unit: Pneumatic dot slitting
• Counter: Ink marked

Operational Benefits

• Accurate transmission: Synchronous belt drive delivers precise ratio and low noise during continuous operation.
• Efficient waste handling: Pneumatic broken paper automatic separation simplifies web-up and reduces downtime when changing parent rolls.
• Flexible raw material: Accepts 33–45 g/m² single-ply base paper, with optional two-layer glue lamination available on request.
• Programmable control: PLC computer controller manages folding sequence and line coordination.

Configuration Choices

This machine is supplied as a N/Z interfold disposable hand towel production configuration. The jumbo roll inner core is 76.2 mm as standard, with other core sizes available on request. For buyers producing two-ply towels, an optional glue lamination unit can be integrated into the line. Final configuration—including line speed and ancillary equipment—should be confirmed with our sales team based on your parent roll width and finished towel specification.

Factory preparation: A 3 HP air compressor with minimum air pressure of 5 kg/cm² is required on site and is provided by the customer.

Application Suitability

This hand towel folding machine suits converters producing disposable interfold towels for washrooms, commercial facilities, and food service environments. The N-fold format is a common choice for high-traffic dispensers where one-at-a-time dispensing and low waste are priorities. If you produce V-fold or Z-fold towels, please review our related hand towel machine configurations.

Frequently Asked Questions

The standard jumbo roll inner core is 76.2 mm. Other core sizes are available—please confirm your requirement when requesting a quotation.

Yes, a two-layer glue lamination unit is available as an optional configuration. Please specify your ply requirement when ordering.

The production speed is 0–100 m/min, depending on the machine model and final configuration. Confirm the exact speed rating for your selected line setup.

To check line configuration, output capacity, and packing details for your target towel size, contact our sales team or request the product catalog. We can also share related hand towel machine options for V-fold formats.

Fujian Xinyun Machinery Development Co., Ltd.

Fujian Xinyun Machinery Development Co., Ltd specializes in paper converting machinery manufacture. Our product range includes:

• Toilet paper machines (1.2–2.8 m parent roll width, customization available)
• Roll kitchen paper towel machines (1.2–2.8 m parent roll width, customization available)
• Facial tissue machines (2–14 output lanes)
• Napkin paper machines (L-fold, 1/4-fold, 1/6-fold, 1/8-fold, and other multi-fold types)
• Hand towel paper machines (C-fold, V-fold, and N/Z fold types)
• Pocket tissue machines (mini and standard sizes)
• All kinds of tissue paper cutting and packing machines
• Other household paper equipment and production lines
