Price:
Negotiable
Model:
XY-BT-288
Power:
40KW 380V 50HZ 3Phase (depends on the jumbo roll width)
Application:
Kraft Paper & PE film Packing N fold Hand Towel Machine
Weight:
7 tons (depends on the jumbo roll width)
Output:
Kraft Paper & PE film Packing N fold Hand Towel
Packaging Dimension:
8900*6300*2300mm
Machine Size:
Certification:
CE, ISO

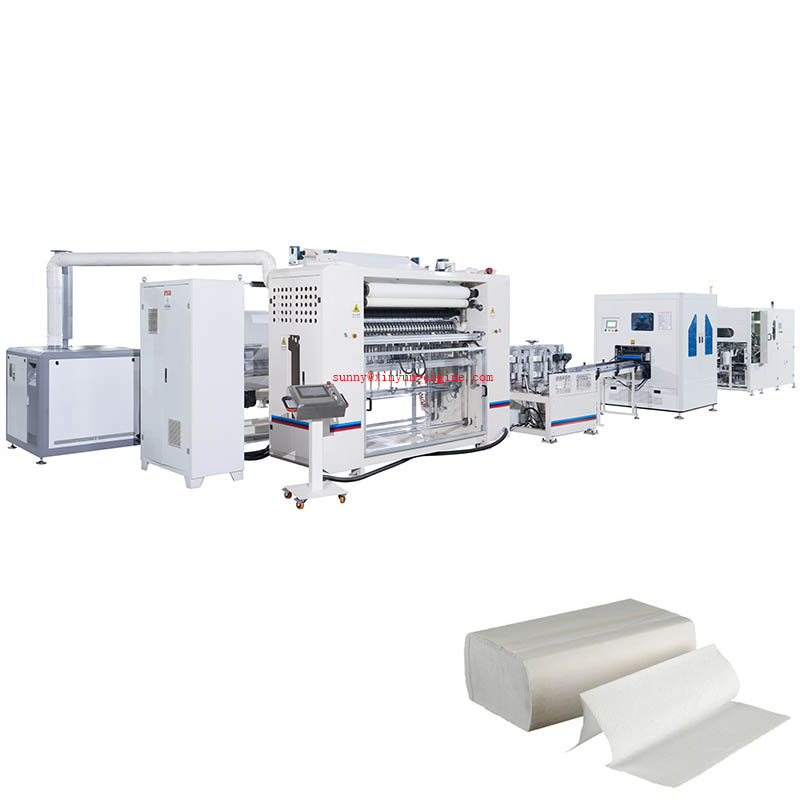

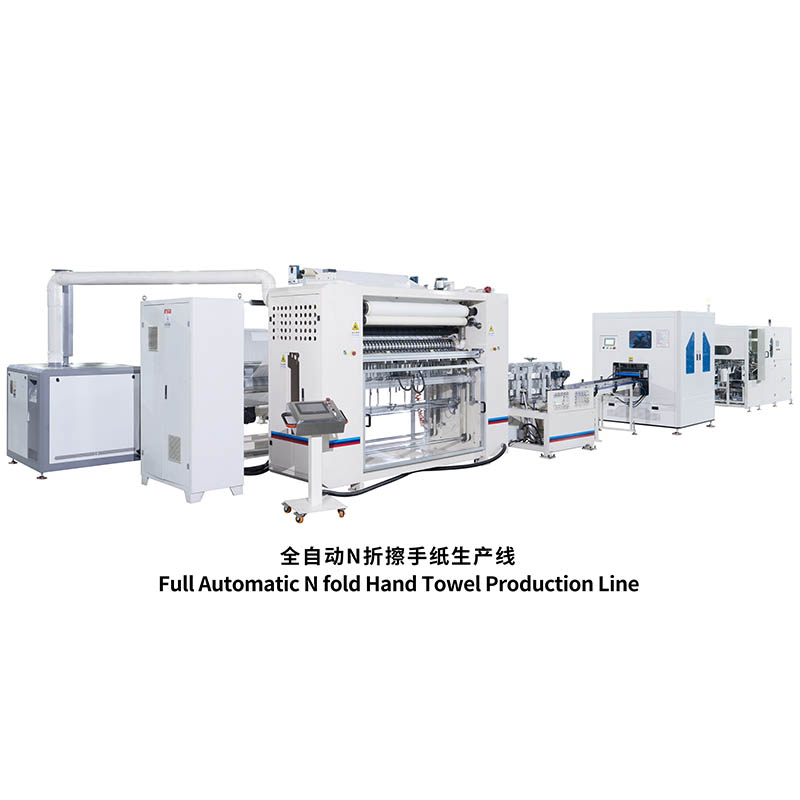

This Automatic Kraft Paper and PE Film Packing N Fold Hand Towel Machine production line integrates hand towel folding, cutting, and automatic packing for finished products wrapped in either kraft paper or PE film. It is designed for tissue converters who need a reliable, continuous process from jumbo roll to packed hand towels, with verified specifications for each stage of the line.
This line is suitable for manufacturers producing interfolded hand towels (N-fold or Z-fold formats) for commercial and industrial use. The system combines a high-speed folding machine with an automatic transfer system and a packing unit that handles both PE film and kraft paper wrapping.
For detailed power, dimensions, and weight values, please refer to the Technical Specifications section below.

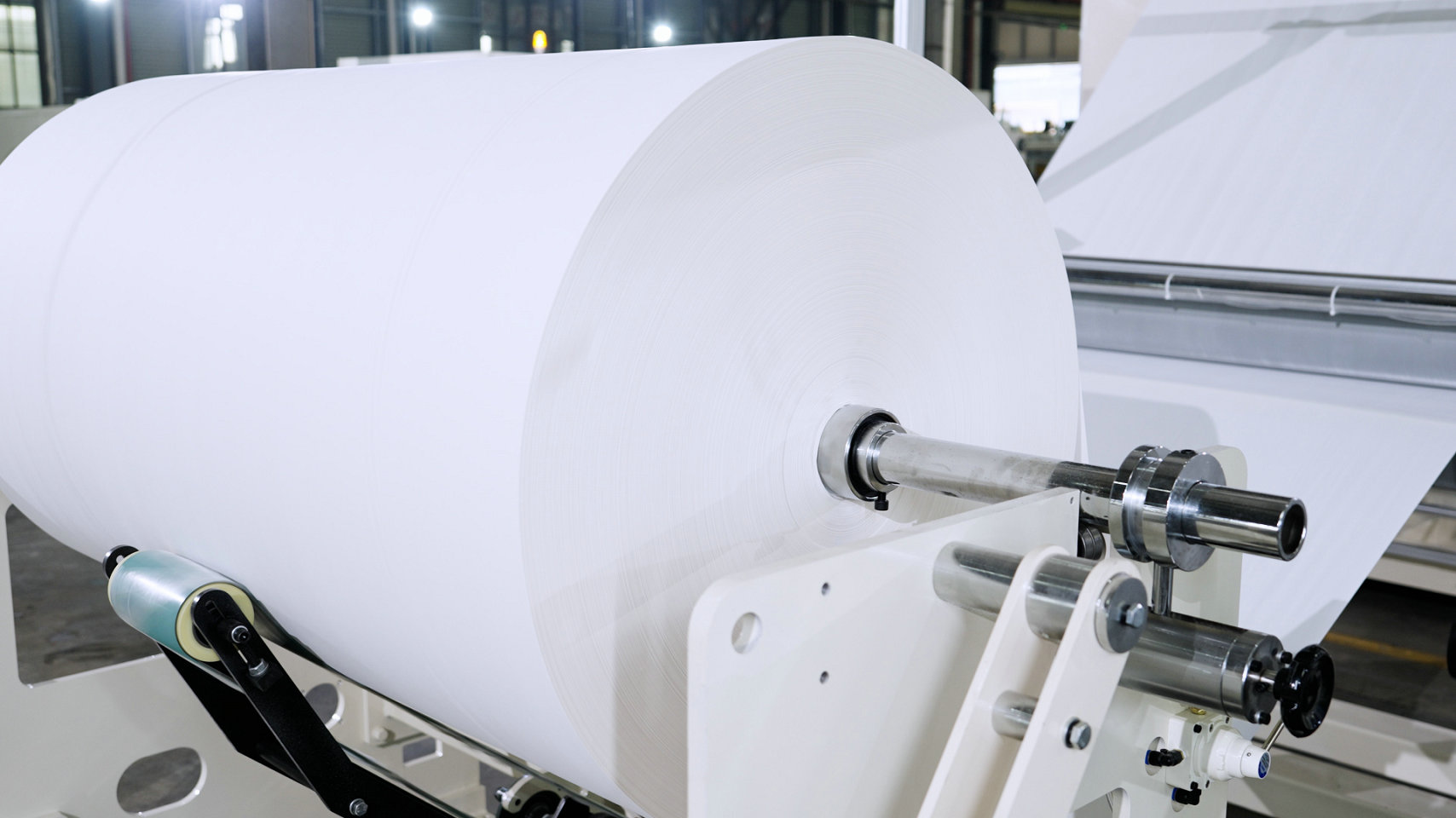

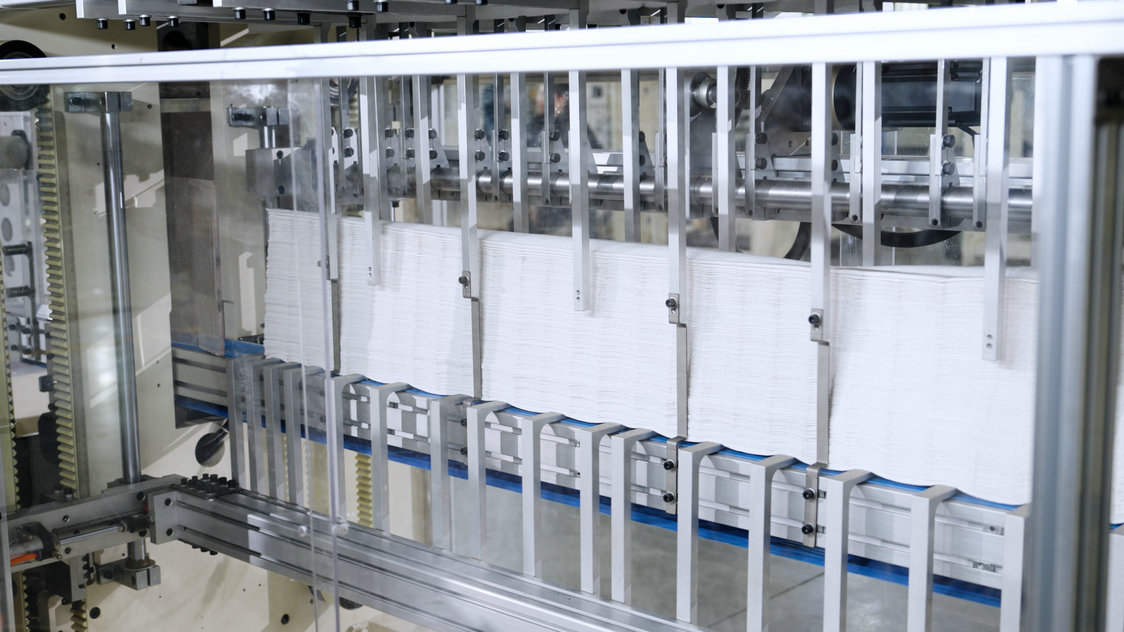

The folding machine operates at 0–140 m/min with a cutting speed of 30–100 cuts/min. It handles jumbo rolls up to 1500 mm in width and 1500 mm in diameter, producing folded hand towels with a steel-to-steel full embossing device for consistent quality.
An automatic transferring system moves folded towels from the folding section to the packing unit, reducing manual handling and improving line efficiency. This integration supports continuous production flow.

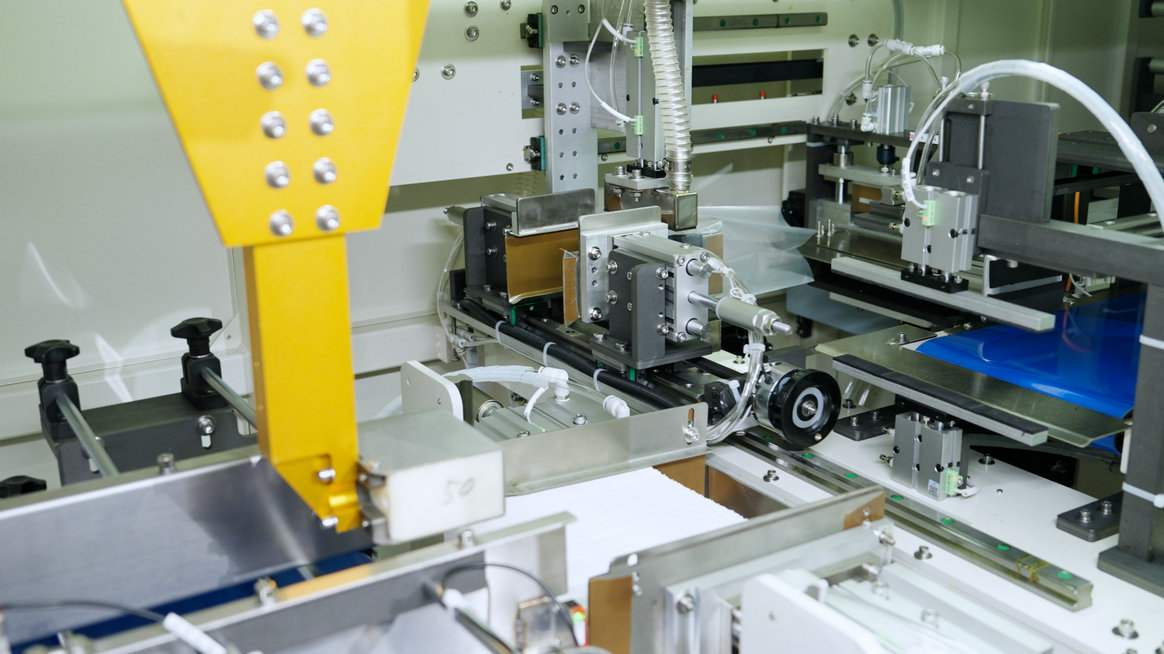

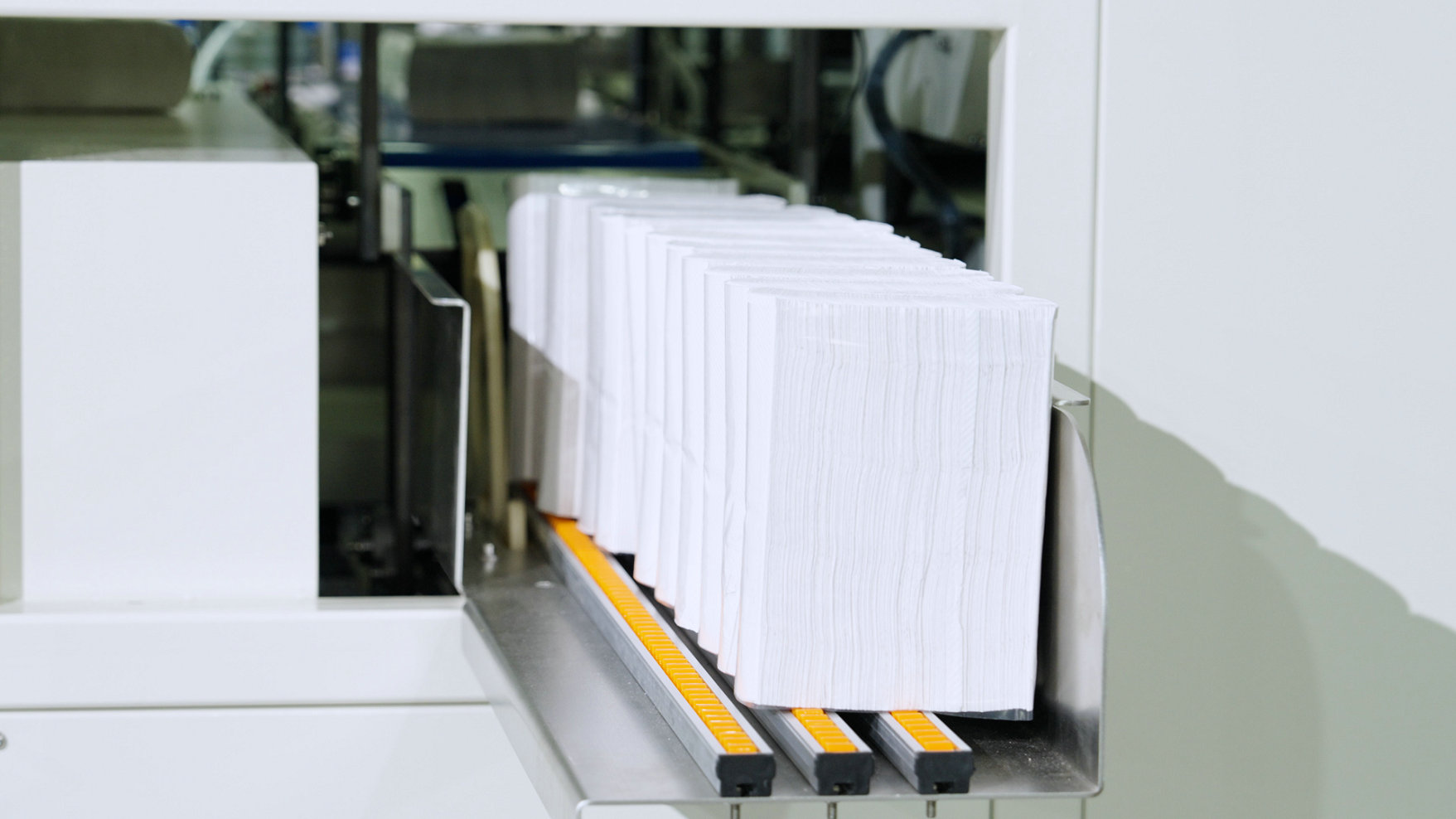

The packing machine wraps finished products in either PE film or kraft paper, with a speed of 0–30 bags/min. It accommodates roll film widths from 110 mm to 200 mm and finished product widths from 100–200 mm (PE film) or 100–150 mm (kraft paper).
Each machine in the line has confirmed technical data, including power consumption, dimensions, and weight. This allows buyers to plan factory layout and utility requirements with confidence.
Confirmed parameters for each machine in the line are listed below. Final configuration should be confirmed with our sales team.
Embossing is provided as one set of steel-to-steel full embossing device. The line supports automatic transfer between folding and packing stages. For other product sizes or additional embossing configurations, please specify your requirements when requesting a quote.
The standard unfolded size is 210 × 210 mm, with a folded size of 210 × 70 mm. Other sizes can be accommodated; please specify your requirements.
The packing machine handles both PE film and kraft paper. Roll film width ranges from 110 mm to 200 mm, and finished product width ranges from 100–200 mm for PE film and 100–150 mm for kraft paper.
The line accepts jumbo rolls with a diameter up to 1500 mm and a maximum width of 1500 mm. The raw material core diameter is 76.2 mm.
Yes, the folding machine includes one set of steel-to-steel full embossing device. Additional embossing configurations can be discussed based on your product requirements.
Contact our sales team to confirm the final configuration for your production needs, including jumbo roll specifications, finished product size, packaging material, and factory layout requirements. We will provide a detailed quotation and technical documentation.
For more information on related equipment, see our Hand Towel Machine catalog or explore our Tissue Machine Solutions.
High-speed automatic transfer folding for N-fold hand towels, engineered for continuous converting lines.
| Parameter | Value |
|---|---|
| Production speed | 0-140 m/min |
| Jumbo roll paper size | Diameter: ≤1500 mm; Max width: 1500 mm |
| Raw material core diameter | 76.2 mm |
| Unfold size of the product | 210 × 210 mm (Other sizes please specify) |
| Folded size of the product | 210 × 70 mm |
| Embossing | One set of steel-to-steel full embossing device |
| Transfer system | Automatic transferring system |
| Power | 47 KW (380V 50Hz 3Phase) |
| Overall size (L*W*H) | 5700 × 7850 × 1900 mm |
| Weight | 6 T |
Custom product sizes can be accommodated; please specify your requirements when ordering.

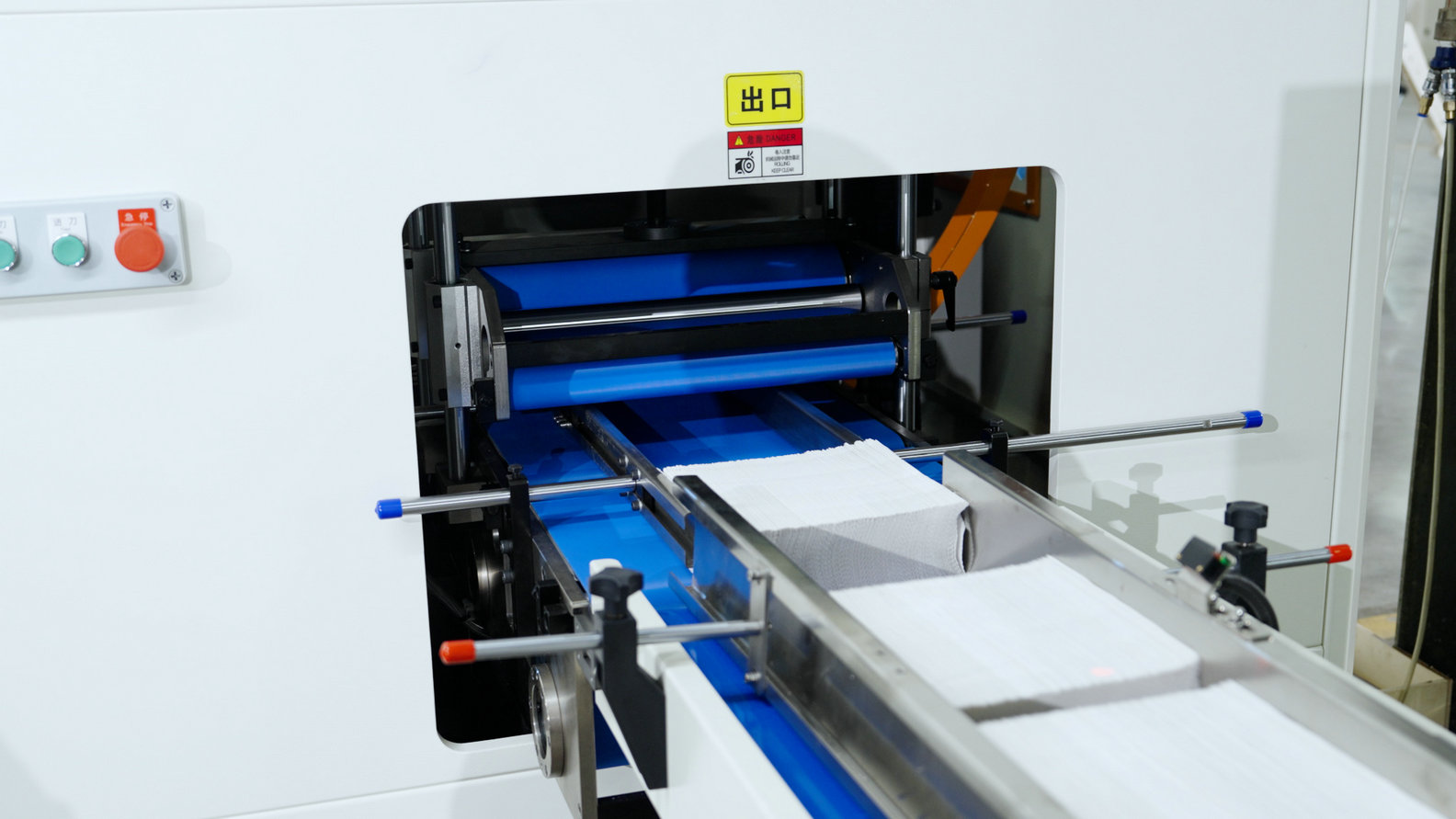

Precision log saw cutting for hand towel rolls, designed for high-speed production lines.
| Parameter | Value |
|---|---|
| Cutting speed | 30-100 cuts/min |
| Jumbo roll length | 1500 mm |
| Paper cutting length | 120-300 mm |
| Paper cutting height | 80-105 mm |
| Paper cutting width | 180-400 mm |
| Power | 7.5 KW (380V 50Hz 3Phase) |
| Overall size (L*W*H) | 1960 × 1840 × 1950 mm |
| Weight | 1000 KG |
Flexible packing solution for hand towels using kraft paper or PE film, with adjustable width settings.
| Parameter | Value |
|---|---|
| Speed | 0-30 bags/min |
| Roll film width | 110 mm ≤ film width ≤ 200 mm |
| Packaging materials | PE film or kraft paper |
| Roll film size | External dimensions: ≤ 600 mm; Internal dimensions: φ 75 mm |
| Power supply | 11 KW (380V 50HZ 3phase) |
| Overall size (L*W*H) | 5300 × 1060 × 1700 mm |
| Weight | 2000 KG |
| Finished product width | PE film: 100-200 mm; Kraft paper: 100-150 mm |
Need a complete hand towel converting line? Explore our Hand Towel Machine range or contact our sales team for configuration and packaging details.
