Hot Keyword:
Price:
Negotiable
Model:
XY-BT-288
Power:
20KW 380V 50HZ 3Phase (depends on the jumbo roll width)
Application:
Lamination V fold hand towel machine
Weight:
3.5 tons (depends on the jumbo roll width)
Output:

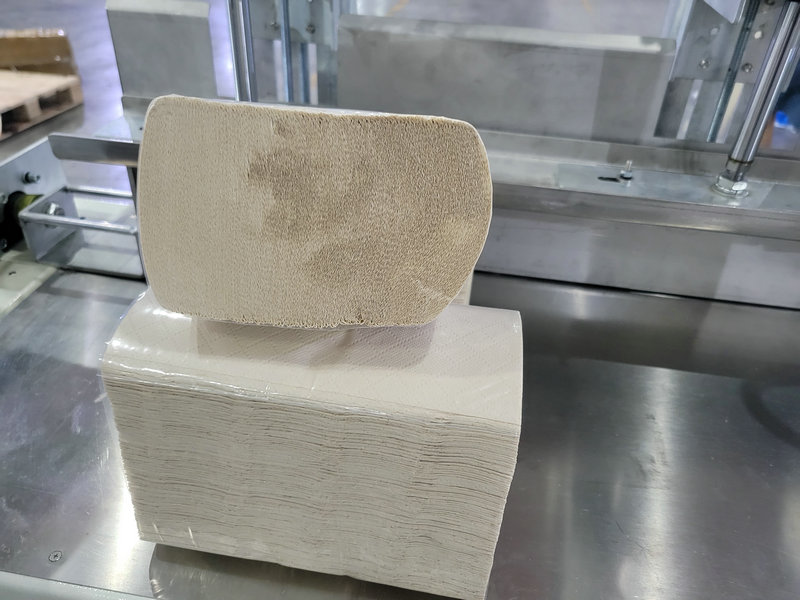

Lamination V fold hand towel
Packaging Dimension:
7000*1500*2100mm(depends on the jumbo roll width)
Machine Size:
Certification:
CE, ISO

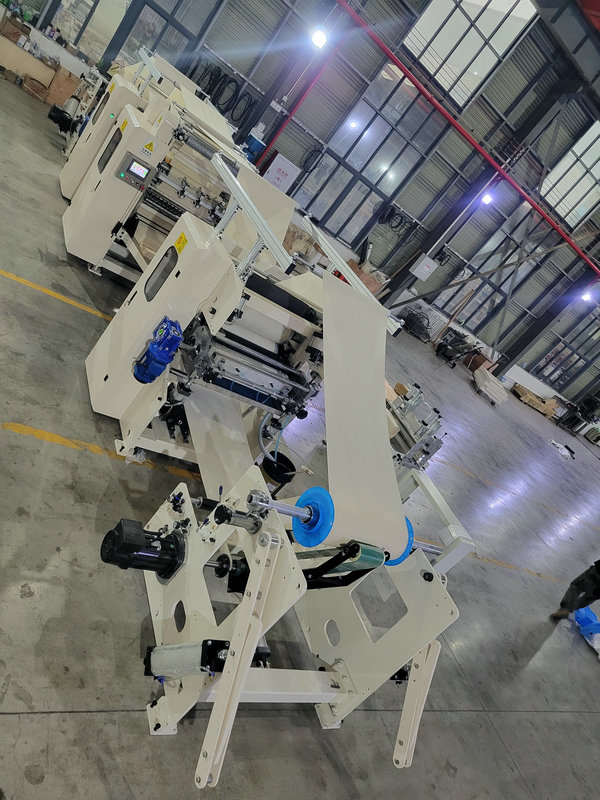

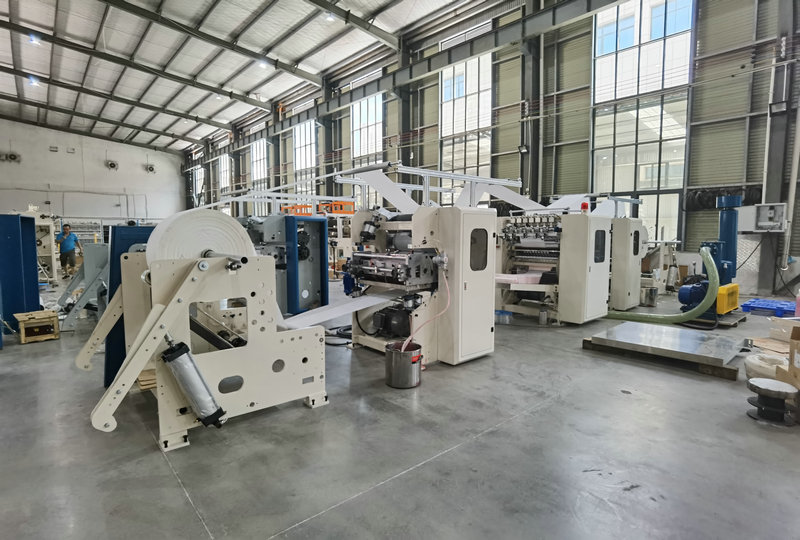

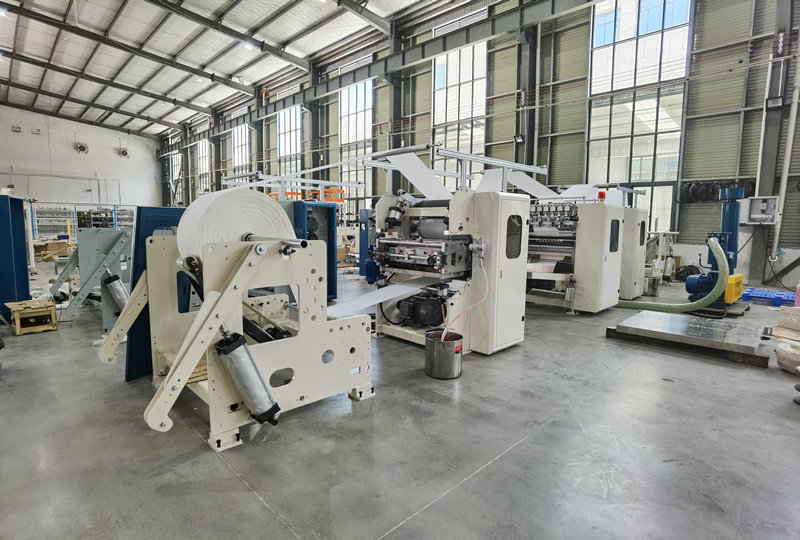

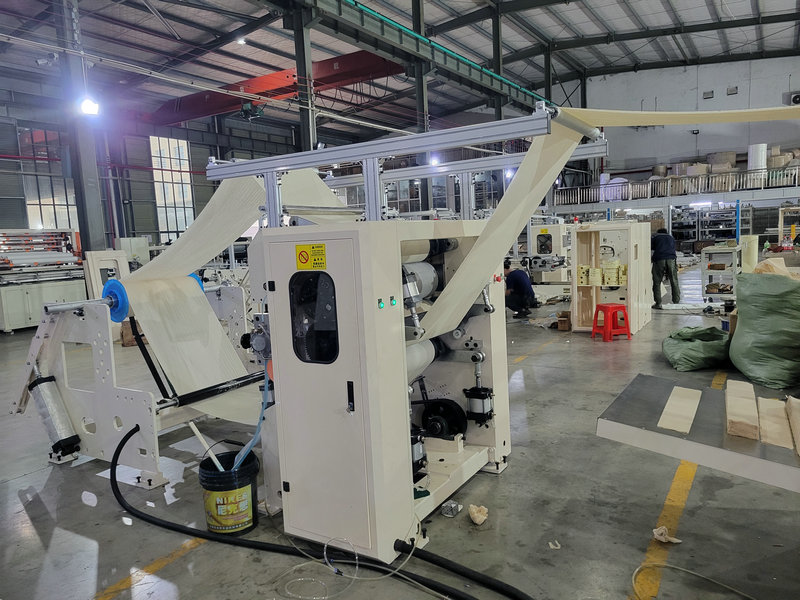

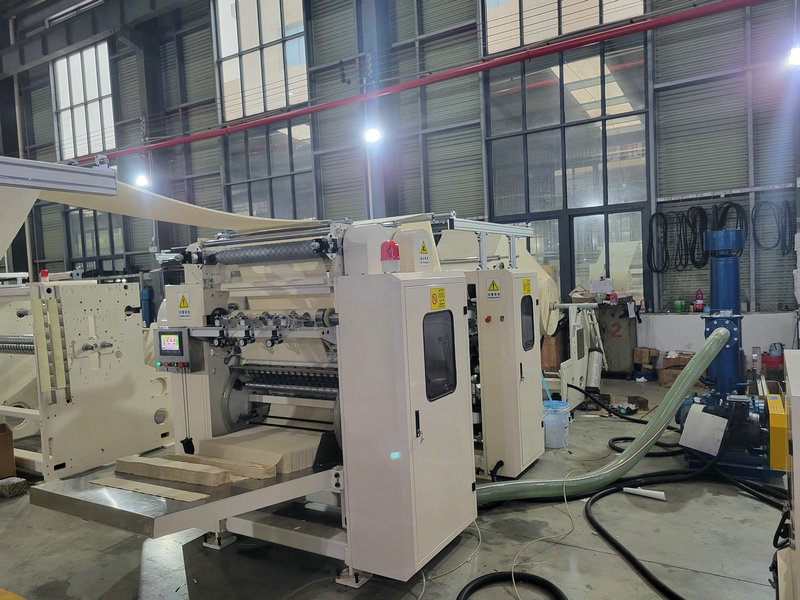

Newest glue lamination V fold hand towel paper folding machine
Functions and Features
1. Automatic counting sub-bit row of output, speed adjusted by frequency changer
2. Screw shear knives, Vacuum adsorption fold, web tension control by manual
3. Variable speed unwinding, can be adapted to base level of tension.
4. Electronically Controlled Pneumatic, easy to operate.
5. Pneumatic parent roll loading system; The unwinding belt is adjusted pneumatically, when the parent paper is used up the machine will slow down to stop; All the pneumatic device’s air press are adjustable.
6. Product width range, to facilitate marketing
7. paper break sensor, air compressor provided by buyer

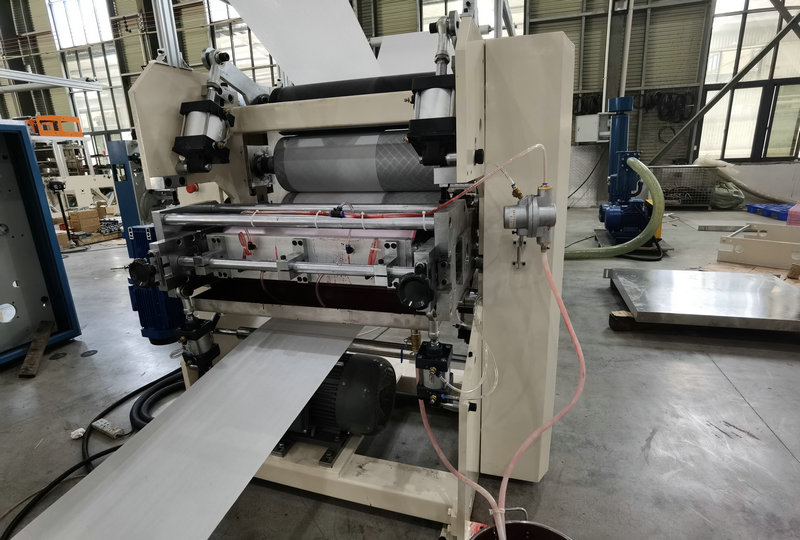

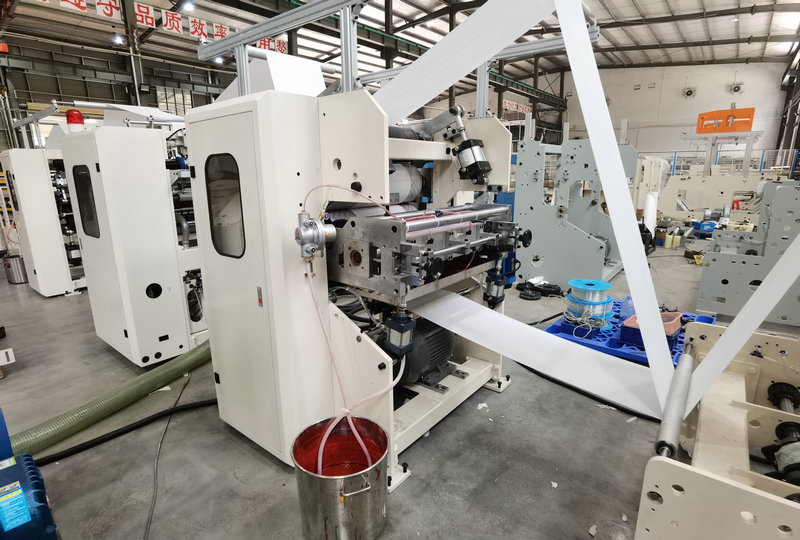

8. high grade glue lamination unit，two layers connected with lamination, glue unit for lamination, automatic gluing composite.
9. Four parent roll shafts; in front and back each two parent roll shafts, convenient glue compound. Equipped with devices which can adjust the position of the parent rolls.
10. Steel to rubber embossing ( four sets); The steel rollers were plated with hard chrome, the embossing is very clear;
11. Broken, winding can affect the automatic stop function;
Function and characteristics
1. Production speed : 60~100m/min
2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
4. Base paper adapt range, 33-45g/m2 (single ply)
5. To be order two layers glue lamination .
|
Max. parent roll width |
400-1500mm |
|
Paper gram weight |
20~24g/m2 |
|
Diameter of jumbo roll paper |
Standard φ1200mm unless otherwise specified |
|
Qty of unwind stand |
4 stands |
|
Diameter of jumbo roll inner core |
Standardφ3”(76.2mm) unless otherwise specified |
|
Data setting |
HMI |
|
Programming controller |
PLC |
|
Operate speed |
60-100m/min |
|
Open size |
200*(130-210)mm |
|
Folded size |
100*(130-210)mm |
|
Power |
5.5KW 380V 50HZ 3P |
|
Mechanical driving |
Driving by stepless gear box |
|
Vacuum fan |
15 KW（380v 50hz) |
|
Counting |
Electronic counting |
|
Embossing unit
|
Four sets steel to rubber （steel to steel, steel to wool, can selected need order) |
|
Dimensions(L*W*H) |
9*2*1.9m |
|
Weight |
8.0T |
-This machine is the best choice for making kitchen towel for middle and high-end market.
