Price:
Negotiable
Model:
XY-BT-288
Power:
25.2 KW ( Depends on the model)
Application:
Lamination N fold hand towel machine
Weight:
3 tons ( Depends on the model)
Output:
Lamination N fold hand towel
Packaging Dimension:
8839mm×1632mm×2100mm( Depends on the model)
Machine Size:
Certification:
CE, ISO

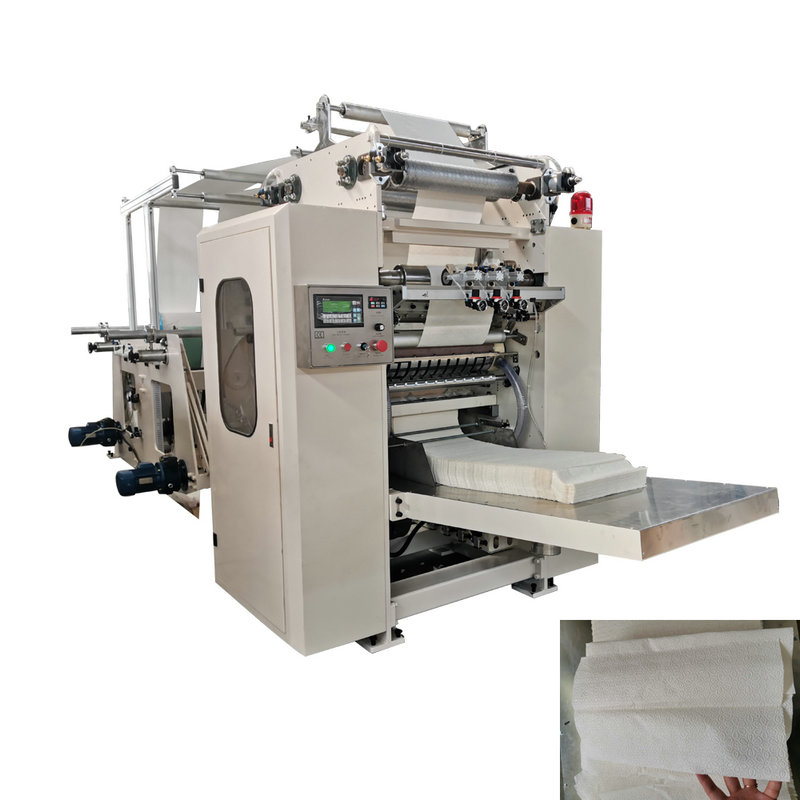

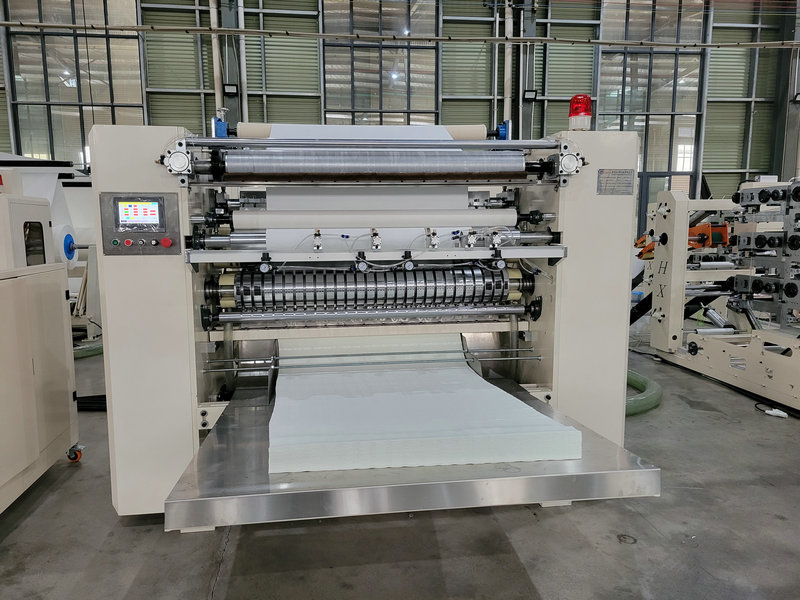

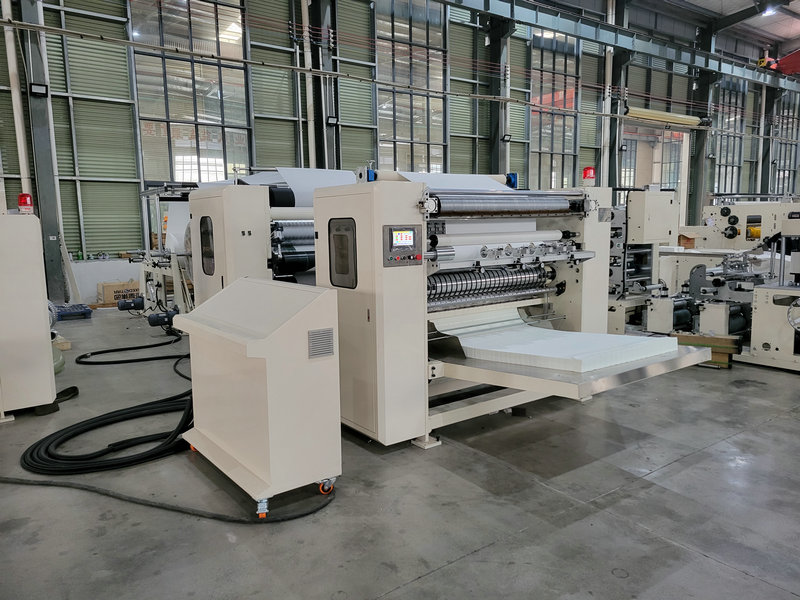

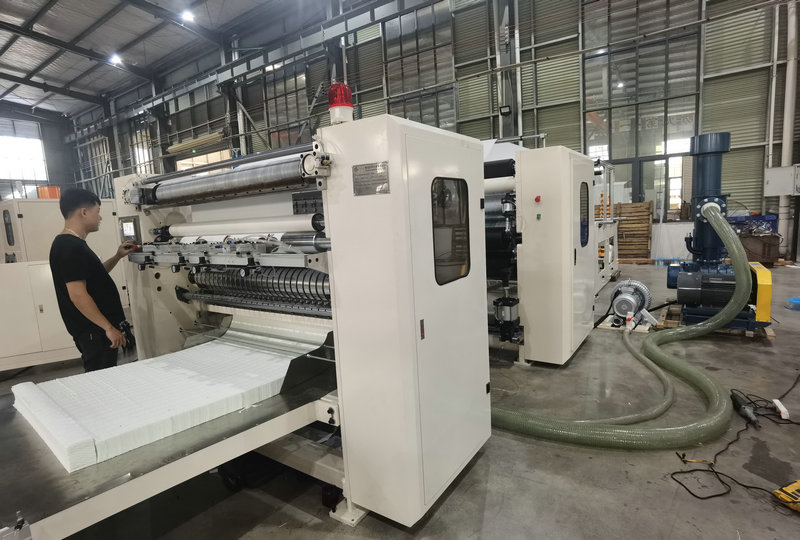

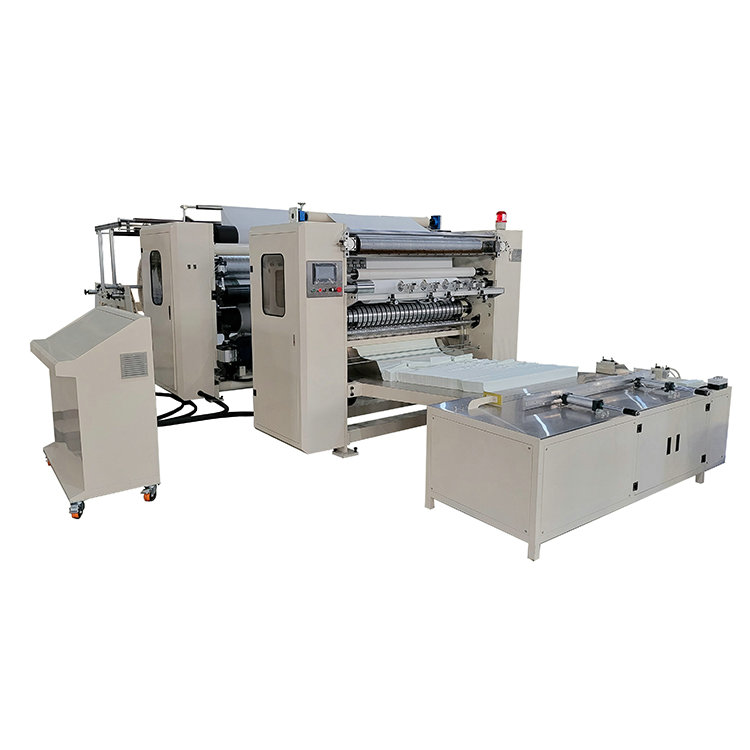

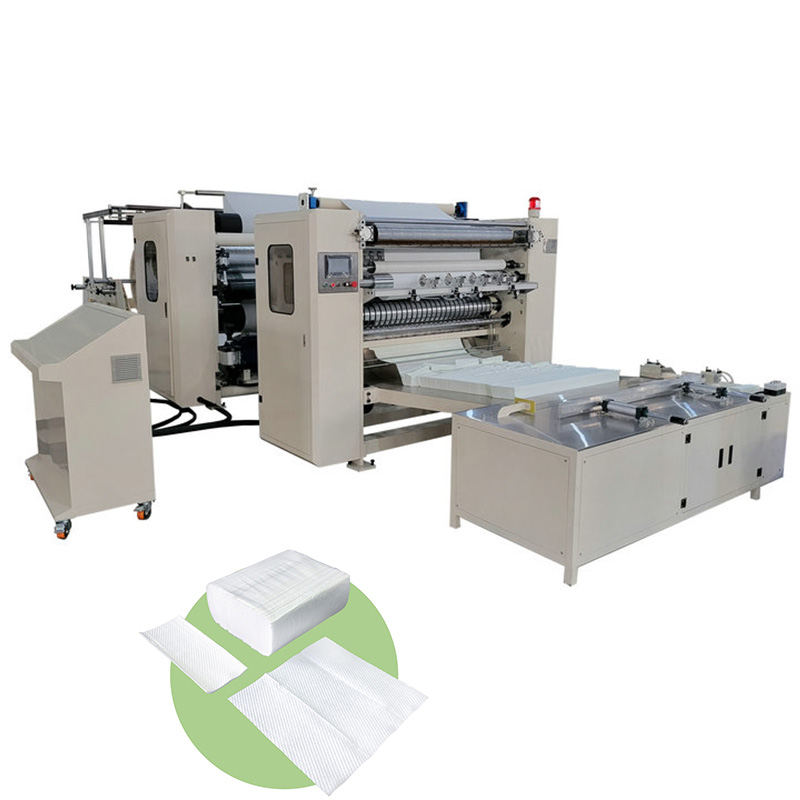

This N-fold glue lamination hand towel folding machine is engineered for producing high-quality hand towels for the middle and high-end market. It converts parent rolls through embossing, glue lamination, and interfolding into convenient N-fold hand towels. The machine features a wall-type structure with advanced glue lamination technology, ensuring clear embossing patterns and even glue distribution for a superior finished product.
This machine is designed for tissue converters who need a reliable, efficient solution for producing premium N-fold hand towels. Its integrated process—from unwinding to final counting—simplifies production and supports consistent quality. The interfolding method creates towels that are easy to dispense and use, making them ideal for commercial kitchens, restrooms, and food service applications.
Vacuum adsorption folding ensures accurate N-fold shapes, while automatic electronic counting with frequency-controlled speed adjustment provides precise batch output for downstream packing.
The high-grade glue lamination unit connects two layers with automatic gluing and composite. Steel-to-rubber embossing rollers, plated with hard chrome, deliver clear, consistent patterns that enhance the towel's absorbency and bulk.
Features like pneumatic parent roll loading, automatic machine slowdown on paper run-out, and a paper break sensor minimize downtime and reduce operator intervention. Electronically controlled pneumatics simplify operation.
The machine supports a product width range to facilitate marketing to different customer segments. Variable speed unwinding adapts to base tension levels, ensuring stable processing of various parent roll qualities.
For detailed and confirmed technical parameters, please refer to the Technical Specifications section on this page. Key specifications include a max parent roll width of 840mm, an operating speed of 0-100m/min, and a power requirement of 5.5KW (380V 50HZ 3P). The machine is PLC-controlled and features electronic counting.
Please note that an air compressor is to be provided by the buyer. The machine includes a paper break sensor for automated safety. All pneumatic device air pressures are adjustable to suit different paper grades and production requirements.

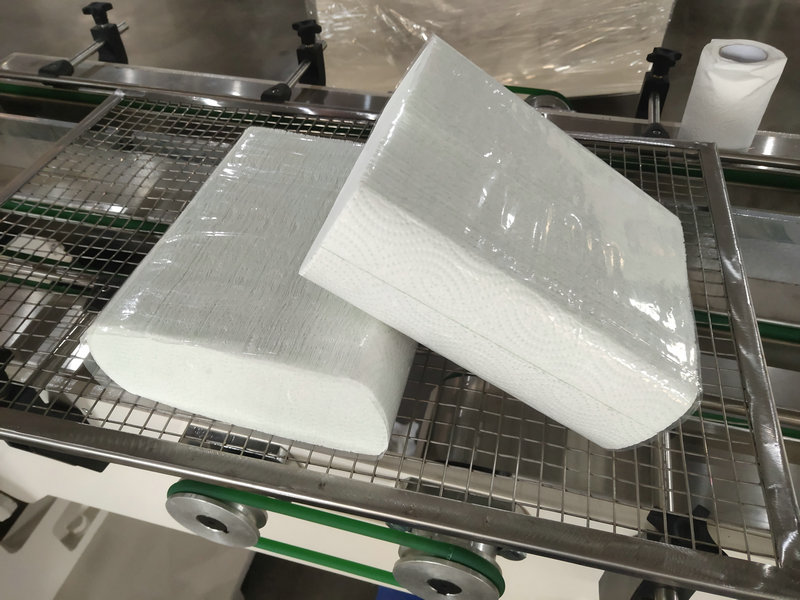

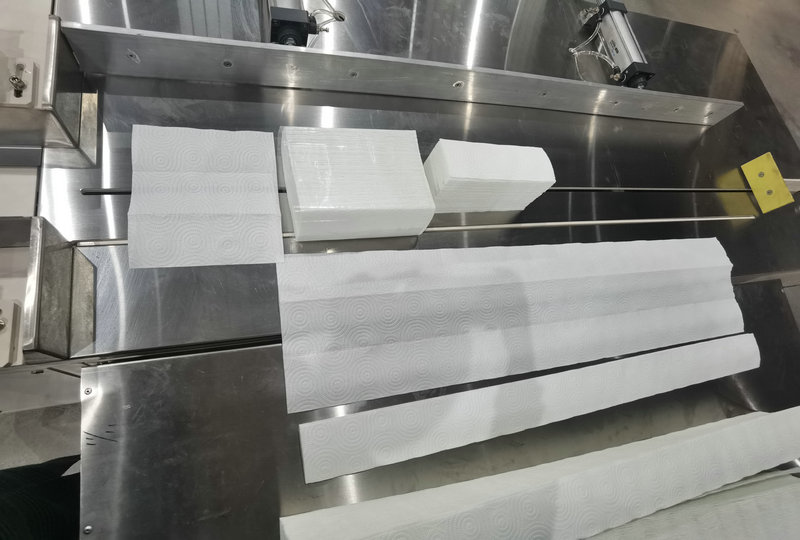

This machine produces N-fold interfolded hand towels, commonly used in commercial and institutional settings. The interfolding design allows for one-at-a-time dispensing, which is hygienic and reduces waste.
The glue lamination unit bonds two layers of tissue paper together. This process enhances the towel's strength, absorbency, and perceived quality, making it suitable for higher-end applications.

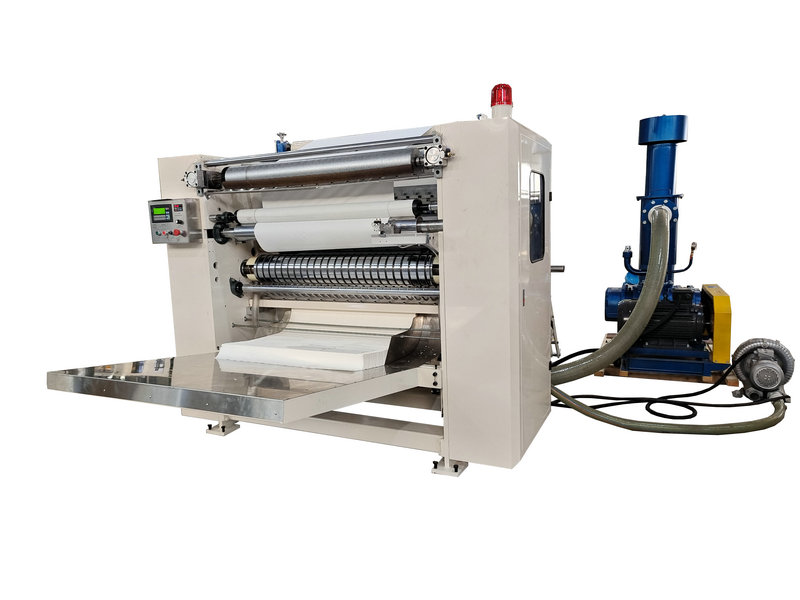

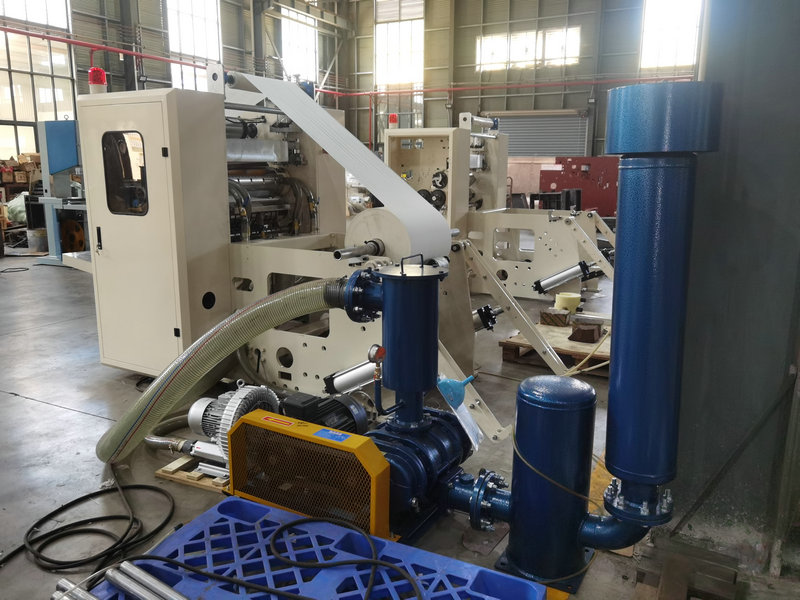

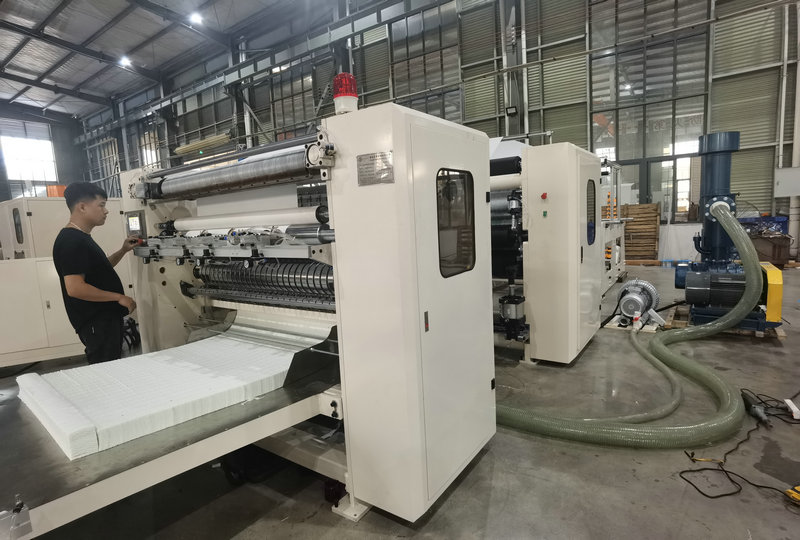

The machine requires a 380V 50HZ 3P power supply and a separate 15 KW vacuum fan. The buyer is responsible for providing an air compressor for the pneumatic systems.
Contact our sales team to discuss your specific production needs, including target output, factory layout, and integration with existing packing lines. We can provide a detailed proposal and configuration based on your requirements.
|
Max. parent roll width |
840mm |
|
Paper gram weight |
20~35g/m2 |
|
Max. parent roll diameter |
Standard φ1200mm unless otherwise specified |
|
Qty of unwind stand |
2 sets jumbo roll paper stands |
|
Diameter of jumbo roll inner core |
Standard φ3” (76.2mm) |
|
Programming controller |
PLC |
|
Operate speed |
0-100m/min |
|
Open size |
210*(130-210)mm |
|
Folded size |
70*(130-210)mm |
|
Power |
10 KW 380V 50HZ 3P |
|
Mechanical driving |
Driving by stepless gear box |
|
Vacuum fan |
15 KW (380V 50Hz) |
|
Counting |
Electronic counting |
|
Embossing unit |
Glue lamination embossing |
|
Weight |
4.0T |
1. Automatic counting sub-bit row of output, speed adjusted by frequency changer
2. Screw shear knives, Vacuum adsorption fold, web tension control by manual
3. Variable speed unwinding, can be adapted to base level of tension.
4. Electronically Controlled Pneumatic, easy to operate.

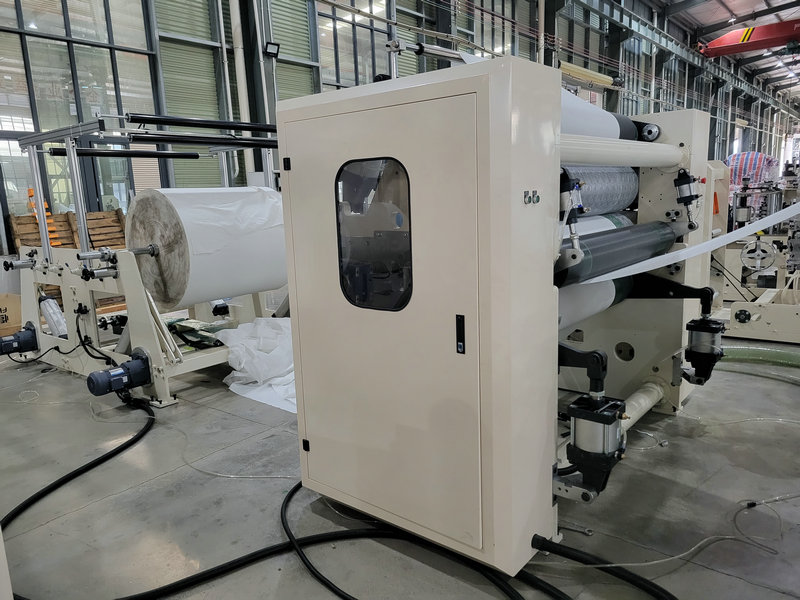

5. Pneumatic parent roll loading system; The unwinding belt is adjusted pneumatically, when the parent paper is used up the machine will slow down to stop; All the pneumatic device’s air press are adjustable.
6. Product width range, to facilitate marketing
7. Paper break sensor, air compressor provided by buyer
8. High grade glue lamination unit，two layers connected with lamination, glue unit for lamination, automatic gluing composite.
9. Steel to rubber embossing ( two sets); The steel rollers were plated with hard chrome, the embossing is very clear;
11. Broken, winding can affect the automatic stop function;
