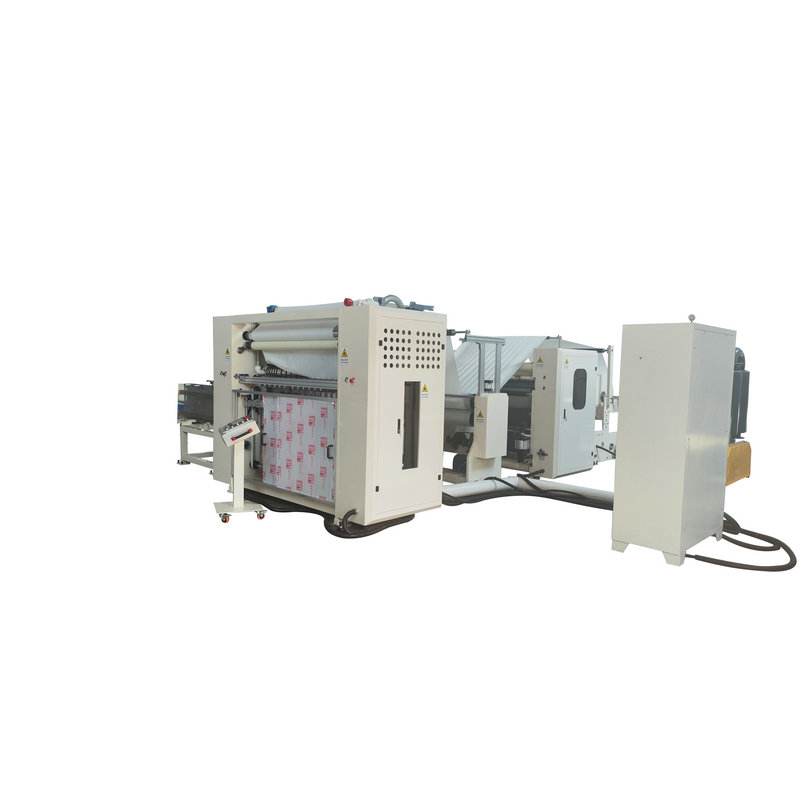

XY-BT-288 Automatic transfer N folding hand towel machine

Main Performance and Structural Features:

1. Counting Method: High-resolution servo calculation, 100% accurate counting.

2. Paper Weight Range (gsm): Single-ply 38-44g/m2.

3. Folding Mechanism: Vacuum folding.

4. Folding Method: Staggered folding.

5. Structure: 40mm thick 45# wallboard.

6. Folding Roller Processing: Tempered and machined with high-precision deep holes to ensure the rigidity and strength of each roller. All rollers are CNC machined and G3.2 dynamically balanced to ensure high-speed folding accuracy.

7. Paper Cutting Roller: One paper cutting roller with three evenly distributed cutting blades ensures a consistent paper break length of 225 (+3, -3) mm. Vacuum holes are regularly spaced next to each blade on the roller surface to hold the cut paper to the roller surface.

8. Folding Roller Two folding rollers, each equipped with four paper inserts and four V-grooves evenly spaced on the rollers, ensure a folded paper size of 75mm (+3, -3). Vacuum holes are regularly spaced next to the inserts and V-grooves on the roller surface to hold the cut paper to the roller surface.

9. Folding Roller Gap: 0.3mm (for composite paper, the gap varies depending on the thickness).

10. Paper Feeding Method: Manual.

11. S-Shaped Feeding Device: Utilizes an S-shaped pulling roller, with tapered pulley belts to adjust the tension in the paper feed and break areas.

12. Vacuum Ducting: On-site vacuum ducting installation is the responsibility of the buyer.

XY-GU-281 High speed hand towel cutting machine

Main Performance and Structural Features:

1. The hand towel log saw cutting machine is specially designed for automatic and continuous hand towel cutting.

2. The machine's design and construction utilize the latest electronic technology and dual servo drive technology, significantly enhancing cutting stability and enabling quick and flexible waste removal.

3. The anti-static timing belt eliminates the problem of hand towel paper sticking to the belt, improving conveying accuracy and cut quality compared to traditional belts.

4. The paper feed system of this large rotary single-channel paper cutter is a unique feature of this machine. Driven by a dual servo motor system, the paper feed is intermittently moved, with segmented control of the front and rear feed sections for precise control of the paper cut length.

5. The hand towel log saw cutting mechanism uses a rotating and swinging circular blade holder, which rotates automatically for precise paper slitting.

6. An automatic blade sharpening system automatically sharpens the circular blade, with the grinding wheel automatically feeding, and parameters can be adjusted via the touchscreen.

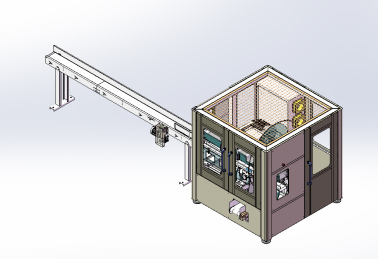

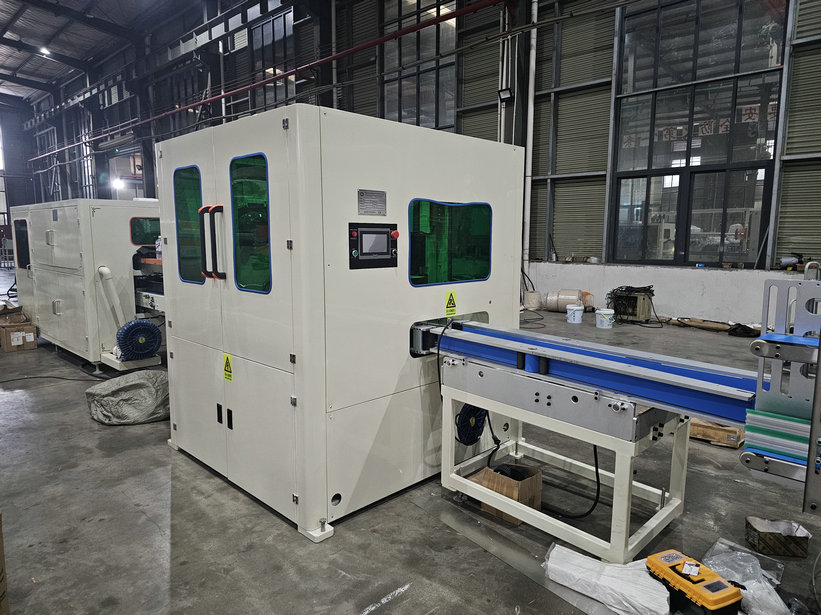

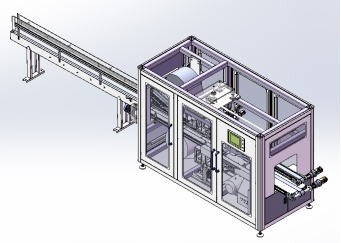

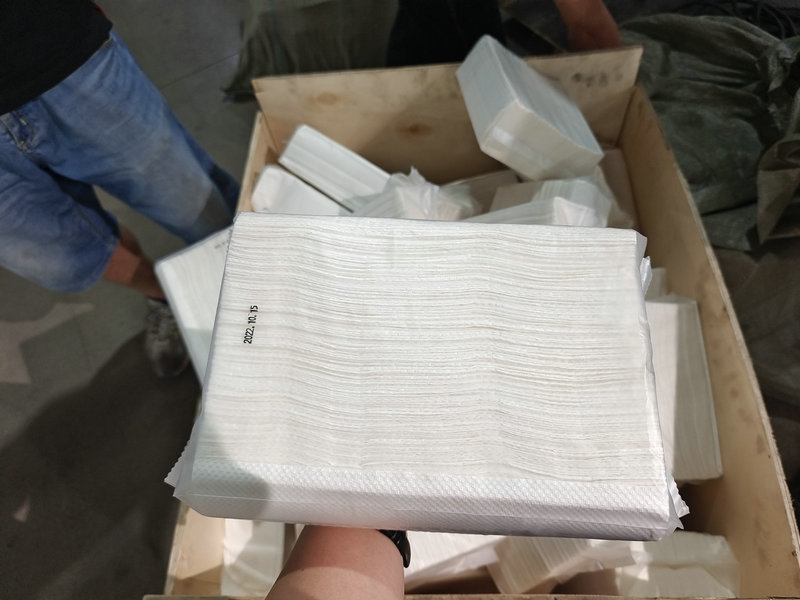

XY-BT-298 Automatic bag hand towel paper packing machine

Main Performance and Mechanical Features
1. The entire machine utilizes a PLC and servo motor as the control and drive units, enabling fully automated operations including hand towel paper conveying, material separation, film feeding, bag making, bag opening, bagging, sealing, and date coding.
2. Mold Forming: The sealing process utilizes a negative pressure mold design to ensure aesthetically pleasing packaging.
3. Human-Machine Interface: Touchscreen settings and operation are simple and convenient.
4. Fault Tracking and Alarm: The cause and location of faults can be quickly identified and automatically displayed on the touchscreen, facilitating maintenance.
5. Monitoring System: Detects the presence of bags and products to prevent operation without bags or product. Automatically ejects bags if they exhibit abnormal shape, automatically shuts down the machine if bag opening is abnormal, and automatically ejects bags if bag sticking results in bag opening failure.
6. Adjustable packaging speed.
7. Temperature Control System: Utilizes instant heating with a heating wire and AC control mode, offering strong adaptability to bag corona conditions and effectively preventing false seals.

Technology parameter:

1. Production speed: 130-160m/min

2. Jumbo roll paper size: diameter:≤1500mm, max width:1500mm

3. Raw material core diameter:76.2mm

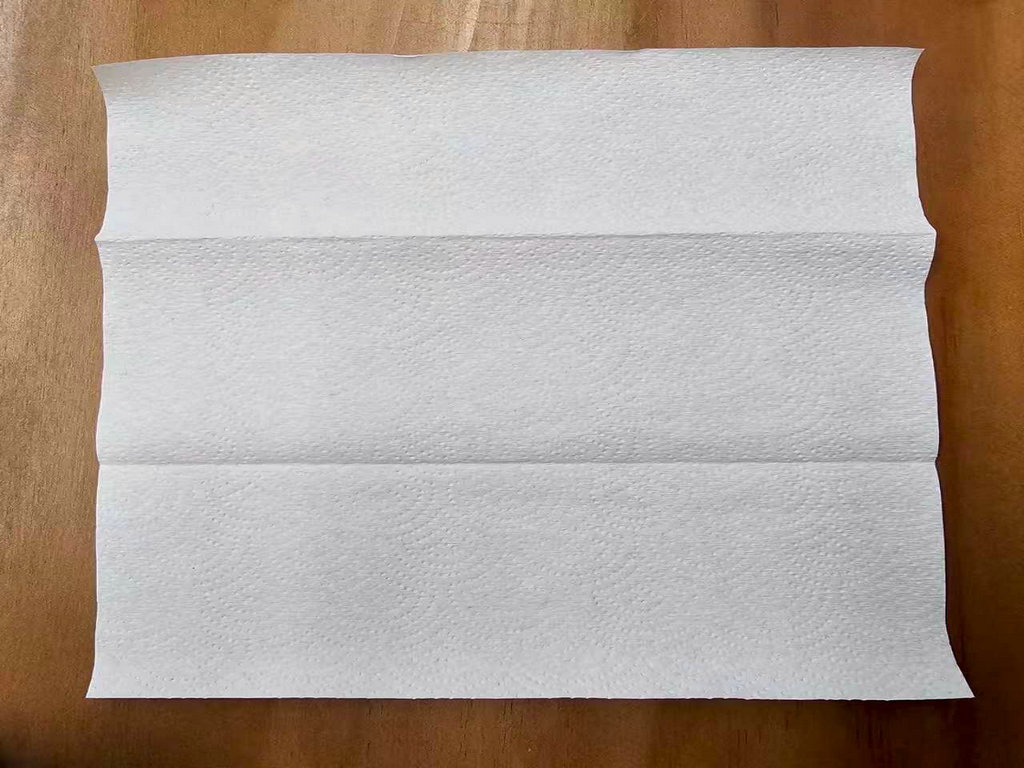

4. Unfold size of the product:210*210mm（Other sizes please specify）

5. Folded size of the product:210*70mm

6.One set of steel to steel full embossing device

7. Automatic transferring system

8. Power: 47 KW (380V 50Hz 3Phase)

9. Overall size (L*W*H): 5700*7850*1900mm

10. Weight: 6T

XY-GU-281 High speed hand towel cutting machine

Technology parameter:

1. Cutting speed: 30-150cuts/min

2. Jumbo roll length: 1500mm

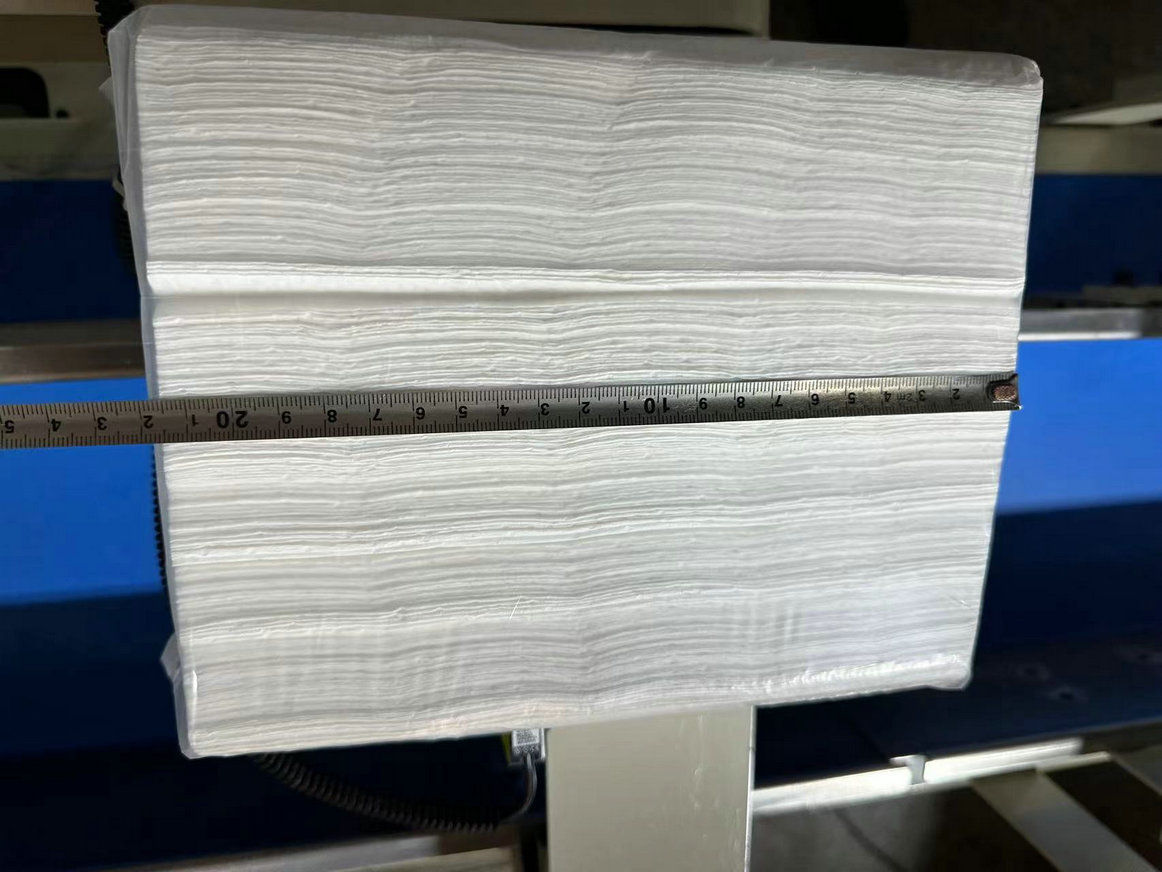

3. Size of finished product(L*W*H): 210*80*70mm

4. Power: 5KW (380V 50Hz 3Phase)

5. Overall size(L*W*H): 4700*1500*2100mm

6. Weight: 1500KG

XY-BT-298 Automatic bag hand towel paper packing machine

Technical Parameters:

1.Speed: 20-40 bags/min

2.Size of hand towel(L*W*H):210*80*70mm

3.Power supply: 11KW (380V 50HZ 3phase)

4.Overall size(L*W*H): 5300*1060*1700mm

5.Weight:2000KG

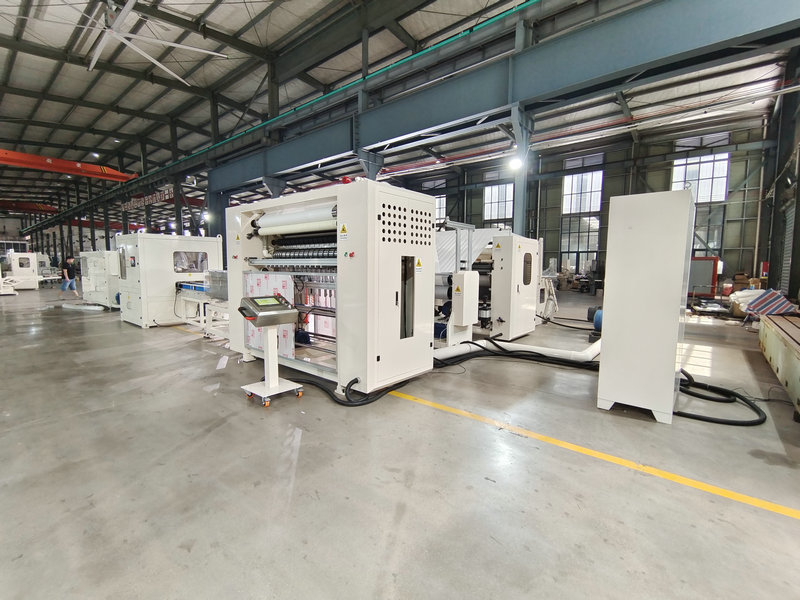

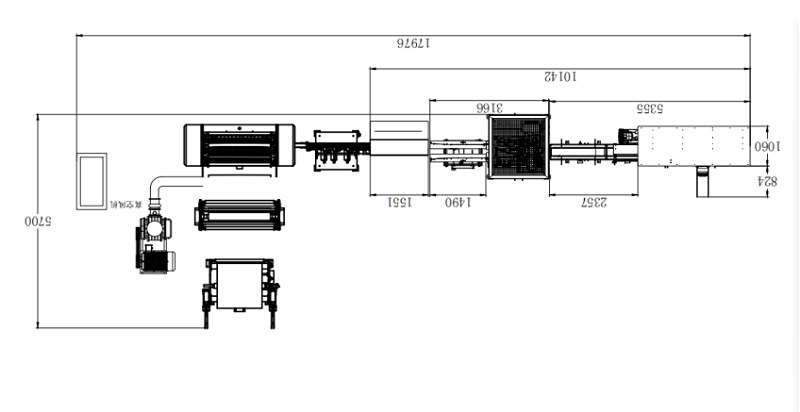

Fully automatic transfer N folding hand towel machine production line consists of :
XY-BT-288 Automatic transfer N folding hand towel machine
XY-GU-281 High speed hand towel cutting machine
XY-BT-298 Automatic bag hand towel paper packing machine

This fully automatic transfer N folding hand towel machine production line operate smoothly and stably throughout the entire process from jumbo roll to finished bag N fold hand towel paper. This highly automated production line significantly reduces labor costs and decreases labor intensity, making it the optimal choice for N fold hand towel paper manufacturing.
