V Fold Hand Towel Paper Folding Machine

V-Fold Hand Towel Folding Machine – Purchase Decision Guide

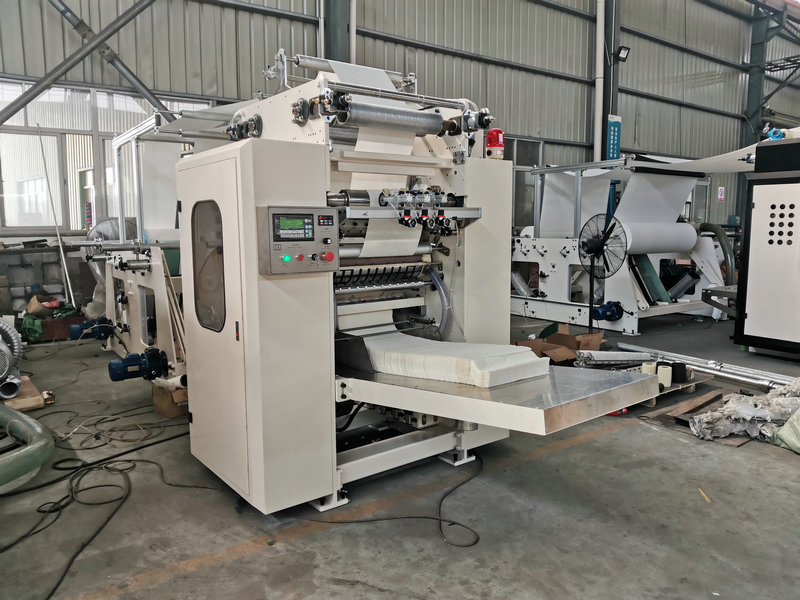

This V-fold hand towel machine converts jumbo tissue rolls into interfolded V-fold hand towels through a continuous process of embossing, cutting, and folding. The finished towels are widely used in hotels, offices, kitchens, and other commercial facilities where hygienic, convenient hand drying is required. The machine integrates folding, slitting, and counting functions in one pass, delivering orderly output at high speed.

Who This Machine Is For

• Tissue converters producing V-fold hand towels for hospitality, food service, and institutional supply.
• Buyers who need a complete converting line from jumbo roll to finished interfolded towels.
• Facilities requiring consistent sheet count and neat stacking for retail or wholesale packing.

Key Verified Specifications

• Machine Model: XY-BT-288
• Design Product Capacity: 800–1000 sheets/line/minute
• Jumbo Roll Size: 400–1600 mm (W) × 1200 mm (Ø)
• Paper Basic Weight: 22–45 g/m² (single ply), 100% pure paper
• Jumbo Roll Core: 3 inches
• Interfold Style: V-fold
• Unfold Dimension: 210 mm (L) × 210 mm (W)
• Interfold Dimension: 105 mm (L) × 210 mm (W)
• Controlling System: Frequency drive
• Power: 11–35 kW (380V 50Hz 3 Phase)

Benefits Tied to Machine Functions

• Customizable embossing patterns – Add brand identity or texture to finished towels with customized embossing roll designs.
• Edge embossing assistance – Improves sheet separation and enhances towel appearance at the edges.
• Digital counting sensors – Provides accurate sheet counts for consistent packing and reduced giveaway.
• Paper tension control system – Maintains stable web tension for smooth feeding and consistent fold quality.
• 2-unit jumbo roll stand – Supports continuous production with quick roll changeover.

Applications

V-fold hand towels produced on this machine are suitable for washrooms, kitchens, food service counters, and janitorial supply. The compact folded size and interfolded format allow one-at-a-time dispensing, reducing waste and improving hygiene.

Configuration Choices

Final configuration depends on your target sheet size, ply requirement, and packing needs. Other sheet dimensions and jumbo roll core sizes are available on request. Confirm your specific requirements with the Xinyun sales team to match the machine setup to your production goals.

Frequently Asked Questions

What raw material does this machine accept?

The machine accepts 100% pure paper jumbo rolls with a basic weight of 22–45 g/m² (single ply), roll width 400–1600 mm, and 3-inch core as standard. Other core sizes are available.

What is the output capacity?

Design product capacity is 800–1000 sheets per line per minute. Actual output depends on paper quality, configuration, and operating conditions.

Is an air compressor included?

No. The air compressor is prepared by the buyer. Confirm the required air pressure with the Xinyun team during quotation.

Can the embossing pattern be customized?

Yes. Embossing roll patterns can be customized to your design. Edge embossing rolls are also available as an assistance feature.

Request a Quotation

Contact the Xinyun sales team with your target sheet size, ply, jumbo roll specifications, and packing requirements to receive a detailed quotation and configuration proposal.

Process Showcase: From Jumbo Roll to Finished V-Fold Towels

Raw Material and Parent Roll

The line starts with 100% pure paper jumbo rolls, 400–1600 mm wide, up to 1200 mm in diameter, with a 3-inch core. Paper basic weight ranges from 22–45 g/m² for single ply. The 2-unit jumbo roll stand supports continuous feeding.

Converting Flow

1. Unwinding and tension control – Paper is unwound from the jumbo roll with a tension control system to maintain stable web feed.
2. Embossing – The web passes through steel-to-steel embossing rolls. Pattern design is customizable; edge embossing rolls assist sheet separation and appearance.

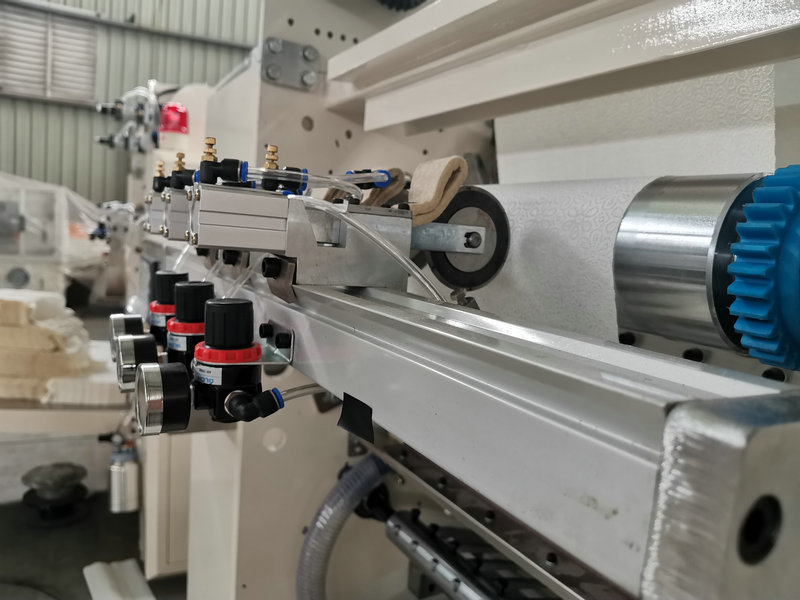

3. Cutting and slitting – Pneumatic dot slitting cuts the web to the required width before folding.
4. Interfolding into V-fold – Vacuum suction folding forms the V-fold interfolded stack at the target sheet dimension.
5. Counting – Digital counting sensors read out sheet counts for accurate batch control.

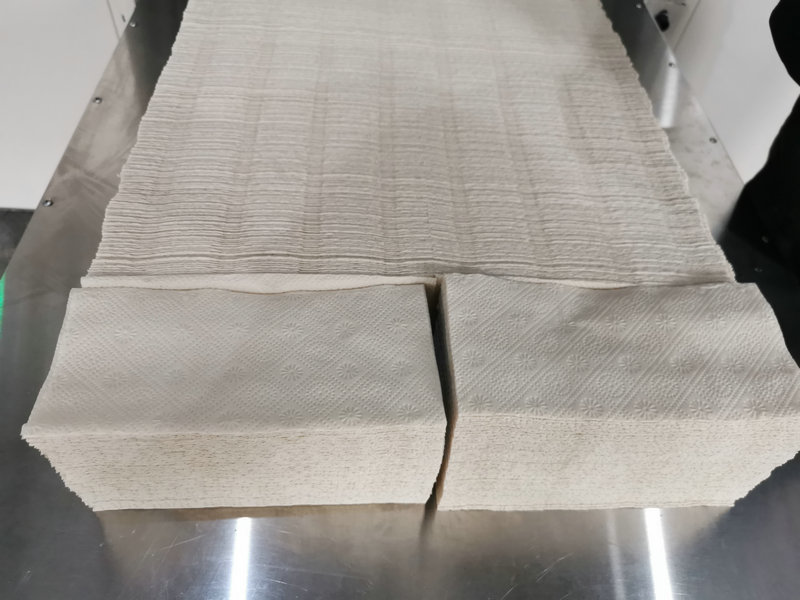

6. Output – Finished stacks are delivered to the output panel for packing.

Quality Checkpoints

• Stable tension control prevents wrinkles and misalignment during folding.
• Digital counting ensures consistent sheet counts per stack.
• Embossing quality is monitored at the roll station for uniform pattern depth.

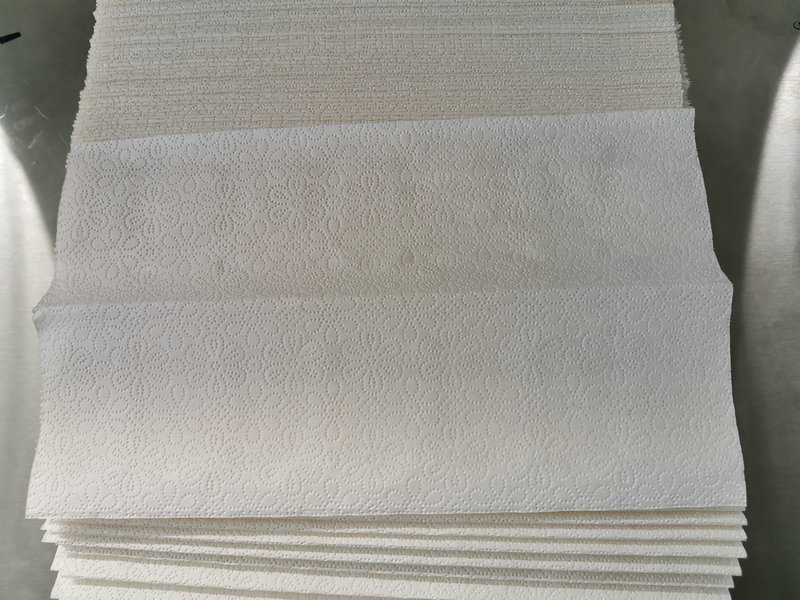

Finished Product

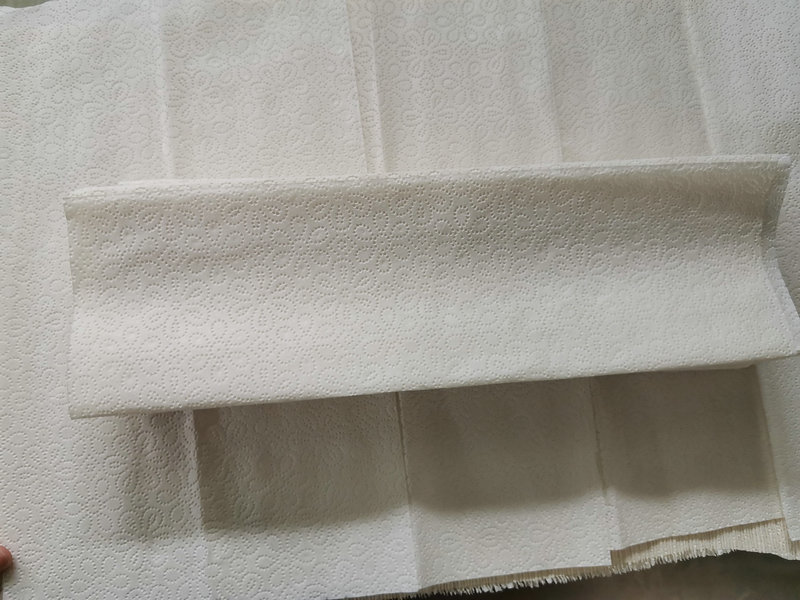

The finished V-fold hand towels measure 105 mm (L) × 210 mm (W) when folded, with an unfold dimension of 210 mm (L) × 210 mm (W). Other sizes are available on request.

Request Process Details

Ask the Xinyun team for a detailed process layout, recommended ancillary equipment, and installation requirements for your factory.

Complete Line Engineering: Planning Your V-Fold Hand Towel Production

Buyer Requirements to Define

To configure the right line, confirm the following with the Xinyun team:

• Target finished sheet size and fold format (V-fold standard; other formats on request).
• Paper ply and basis weight range.
• Required output per shift and packing format (e.g., count per pack, poly wrapping).
• Available factory floor space and power supply (380V 50Hz 3 Phase standard).

Line Configuration

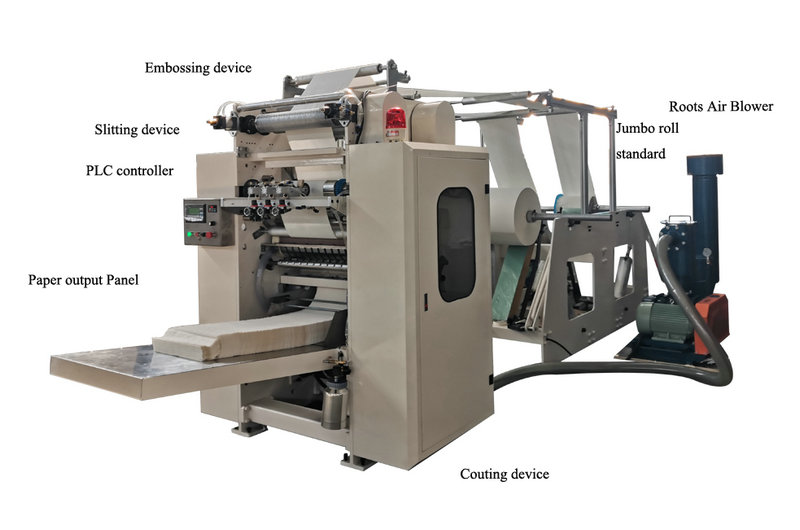

The XY-BT-288 is a single-machine converting line that integrates unwinding, embossing, slitting, folding, and counting. Depending on your packing needs, it can be paired with automatic wrapping or cartoning equipment. Confirm the full line layout with Xinyun engineering.

Machine Hand-offs and Integration

The machine outputs counted stacks of V-fold towels at the output panel. Downstream packing equipment can be integrated for poly wrapping or carton packing. Discuss your packing line requirements to ensure smooth hand-off.

Factory Planning Notes

An air compressor is prepared by the buyer. Confirm the required air pressure and capacity with the Xinyun team. Power supply is 380V 50Hz 3 Phase; total power ranges from 11–35 kW depending on configuration. Overall dimensions and weight depend on the machine model and configuration – request the layout drawing for your factory planning.

Delivery, Installation, and Service

Xinyun provides machine delivery, installation guidance, and after-sales support. Confirm delivery terms, installation supervision, and training availability with your sales representative.

Risks and FAQ

What affects actual output?

Actual output depends on paper quality, roll condition, operator skill, and configuration. The design capacity of 800–1000 sheets/line/minute is a reference; confirm expected output for your specific setup.

What utilities are required?

380V 50Hz 3 Phase power and a buyer-supplied air compressor. Confirm exact air pressure requirements during quotation.

Can the machine handle different sheet sizes?

Standard unfold dimension is 210 mm (L) × 210 mm (W). Other sizes are available – confirm your target size with the Xinyun team.

Request a Line Proposal

Send your production requirements to Xinyun to receive a line configuration proposal, layout drawing, and quotation.
