Price:
Negotiable
Model:
XY-BT-288
Power:
30 KW ( Depends on the jumbo roll width)
Application:
Lamination N fold hand towel production line
Weight:
3.5 tons (depends on the jumbo roll width)
Output:
Lamination N fold hand towel paper
Packaging Dimension:
Machine Size:
Certification:
CE, ISO

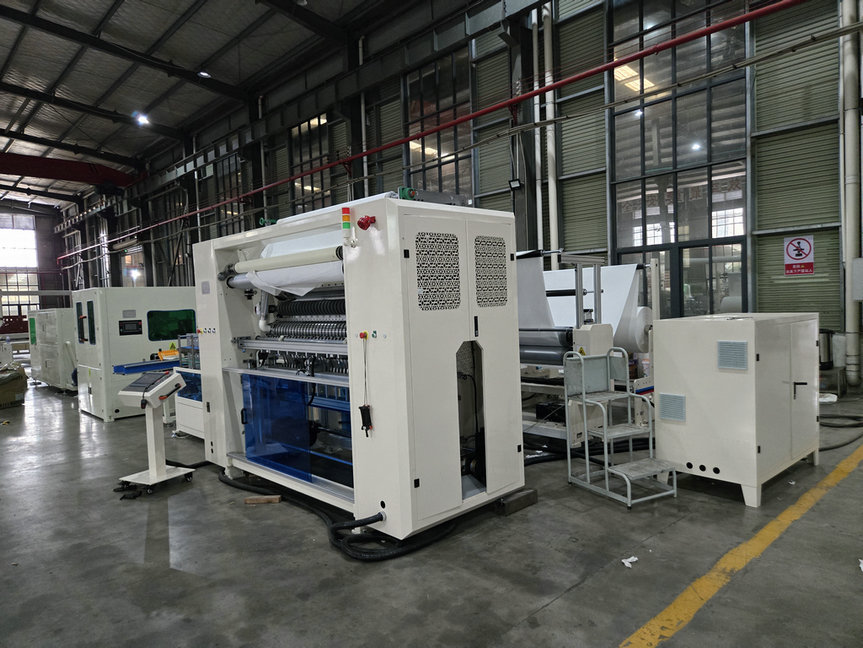

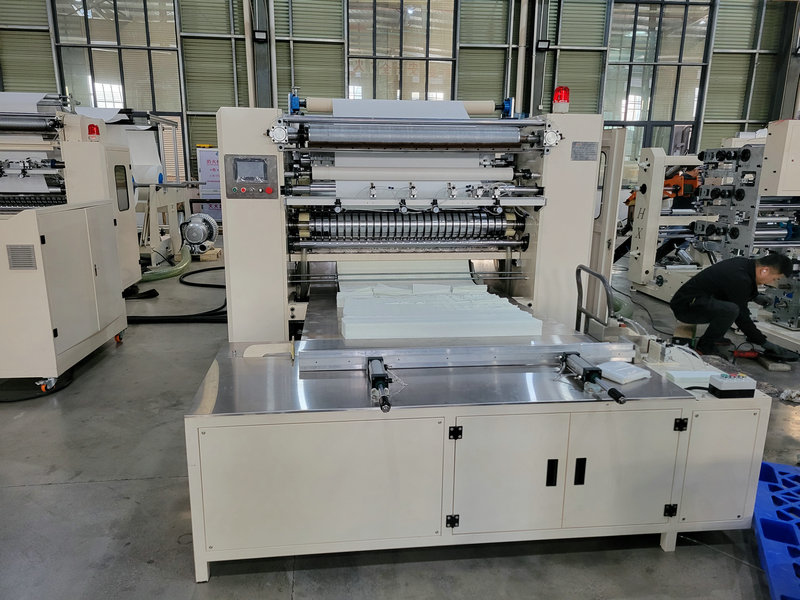

This page presents three complementary machines that form a complete N-fold hand towel converting line: the XY-BT-288N high-speed hand towel folding machine with glue lamination, the XY-AI-15 semi-automatic hand towel bagging machine, and the XY-AI-300 semi-automatic hand towel cutting machine. Each unit is designed to integrate into a production workflow, from parent roll to packed hand towels.
Configuration flexibility: Product width customization is available to enhance market adaptability. For confirmed machine specifications including operating speed, power requirements, and dimensions, please refer to the Technical Specifications section or contact our sales team for a configuration sheet tailored to your production needs.

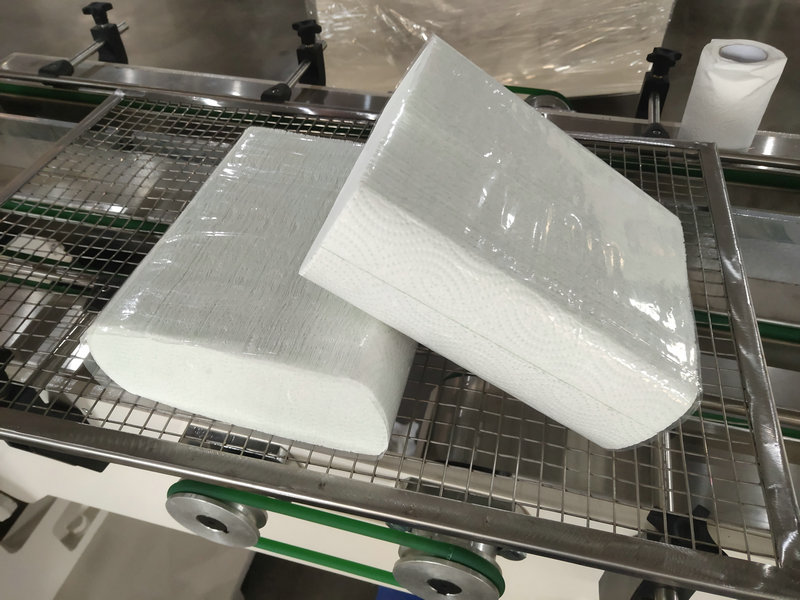

Designed to complement the folding line, the XY-AI-15 provides a semi-automatic bagging solution for N-fold hand towels. It balances manual flexibility with long-term reliability, making it suitable for small to medium-scale production environments.

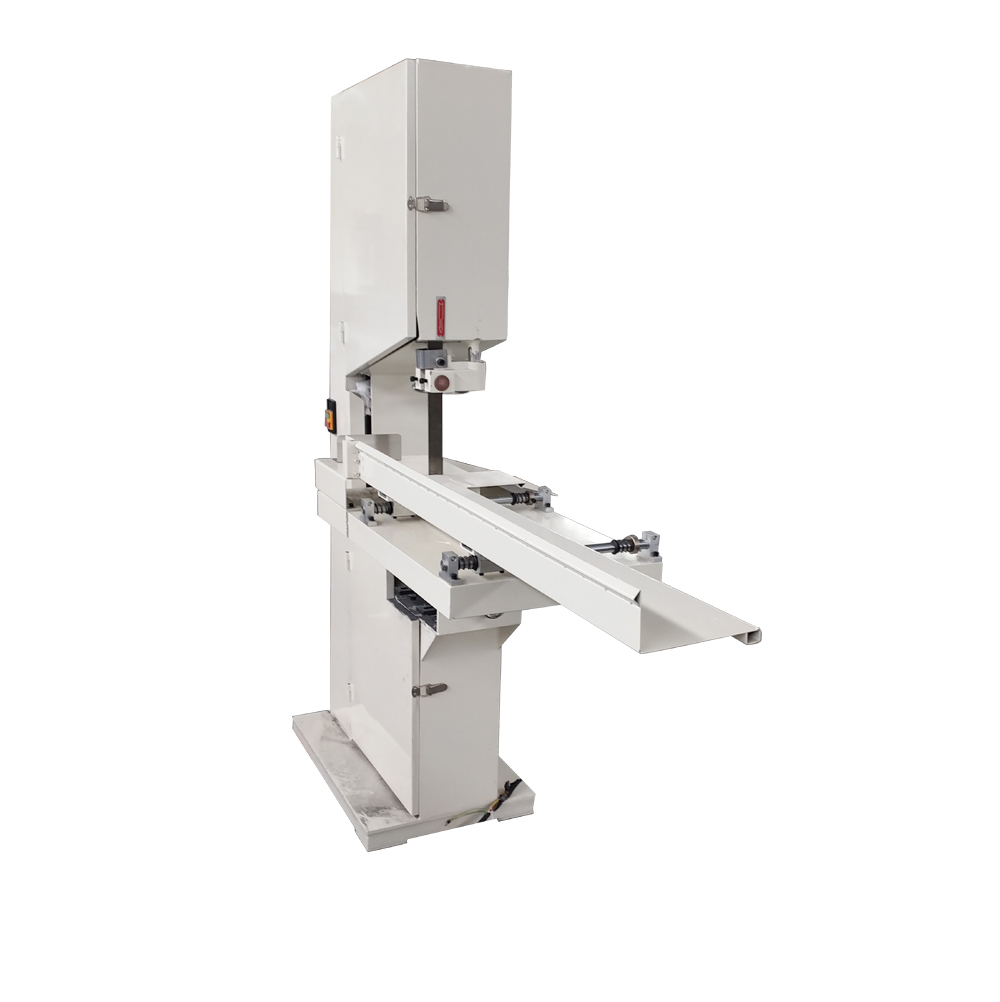

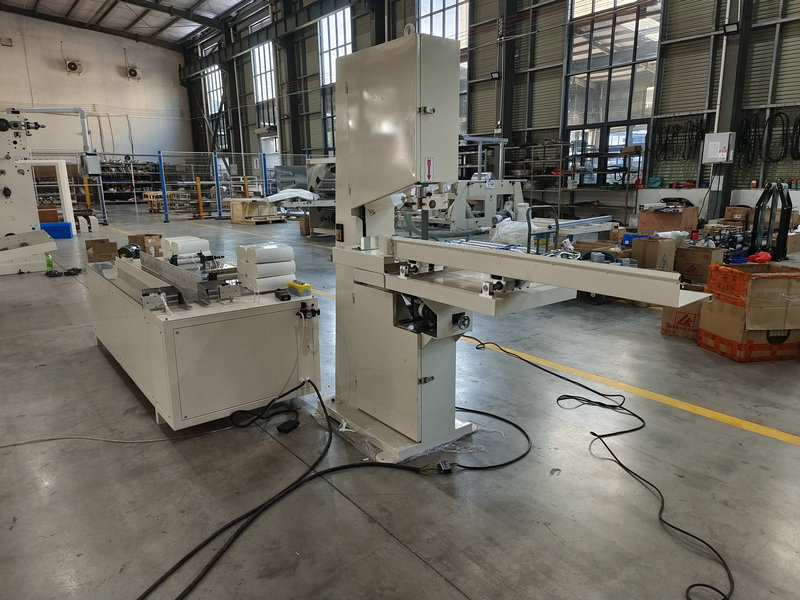

This specialized cutting equipment processes N-fold hand towel paper, precisely cutting long rolls into various standard-sized hand towels to ensure consistent quality and efficiency.

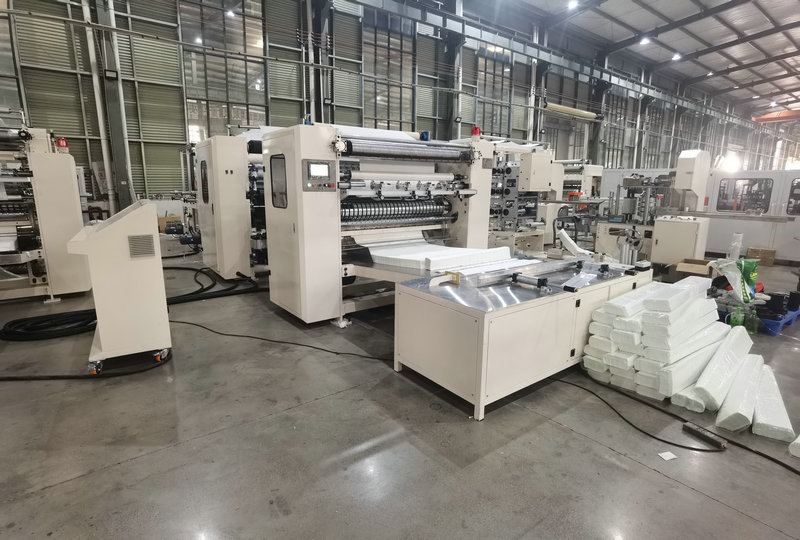

These three machines can be arranged as a sequential converting line: the XY-BT-288N produces folded and laminated N-fold towels, the XY-AI-300 cuts them to size, and the XY-AI-15 handles bagging. For detailed line configuration, floor plan recommendations, and utility requirements, please consult our engineering team with your target output and factory dimensions.
The machine is designed for jumbo rolls with a standard diameter of φ1200mm and a core diameter of φ3" (76.2mm). The raw material gram weight range is 14-20 gsm per ply for 2-ply configurations. The maximum jumbo roll width is 460mm, and the machine comes with 2 jumbo roll stands.

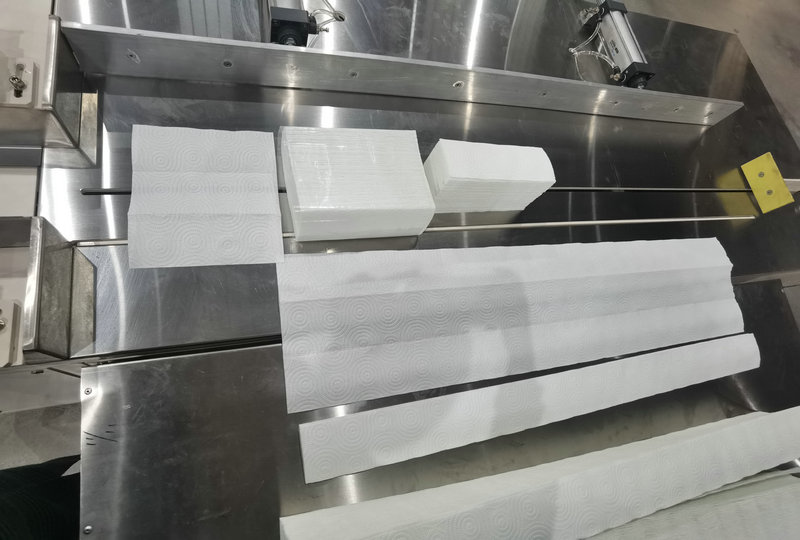

The open size is 210×210mm, and the folded size is 210×70mm. The folding type is vacuum suction "N" fold. Counting is performed via ink marking.
The XY-BT-288N folds and laminates the paper into N-fold towels, the XY-AI-300 cuts the folded stacks to the required dimensions, and the XY-AI-15 bags the finished product. Each machine can also operate independently depending on your production requirements.
The XY-BT-288N requires 25.2KW power at 380V 50HZ 3P. The XY-AI-15 bagging machine requires 0.5KW at 220V 60Hz and an air supply of 0.4 Mpa at 0.3 m³/min. The XY-AI-300 cutting machine requires 1.5KW at 380V 60Hz three-phase. Note that the air compressor for the folding machine is supplied by the buyer.
The XY-BT-288N operates at 60-100 m/min. The XY-AI-15 bagging machine has a production speed of 5 bags per minute. The XY-AI-300 cutting machine operates at 20-30 cuts per minute with a maximum cutting height of 150mm.
To receive a detailed line layout, configuration recommendations, and pricing for your specific production requirements, please contact our sales team. Provide your target output, available factory space, and finished product specifications, and we will prepare a tailored proposal.
For more information on our hand towel machine range, please browse the Hand Towel Machine catalog or review our V Fold Glue Lamination Hand Towel Paper Machine case study in Romania.
| Parameter | Specification |
|---|---|
| Max. jumbo roll width | 460mm |
| Raw material gram weight | 14-20 gsm/2 ply |
| Diameter of jumbo roll paper | Standard φ1200mm |
| Jumbo roll stand | 2 stands |
| Diameter of jumbo roll inner core | φ3" (76.2mm) |
| Data setting | HMI |
| Programming controller | PLC |
| Operate speed | 60-100m/min |
| Open size | 210*210 mm |
| Folded size | 210mm*70mm |
| Power | 25.2KW 380V 50HZ 3P |
| Folding type | Vacuum suction "N" fold |
| Counting | Ink marked |
| Glue lamination | One set color glue lamination device |
| Dimensions (L*W*H) | 7.5*1.5*1.9m |
| Weight | 4.0T |
| Parameter | Specification |
|---|---|
| Production Speed | 5 bags/minute |
| Size of the packing bag (L*H*W) | 1200×70×150mm |
| Power supply | 0.5 Kw (220V 60Hz) |
| Air supply | 0.4 Mpa 0.3 m³/min |
| Overall Size (L×W×H m) | 1.8×1.1×1.2 |
| Weight of Equipment | 0.4T |
| Parameter | Specification |
|---|---|
| Power | 1.5KW (380V 60Hz three phase) |
| Production speed | 20-30 cuts/min |
| Maximum height of cutting | 150mm |
| Overall size (LxWxH) | 1600x600x1800 mm |
| Weight | 400KG |

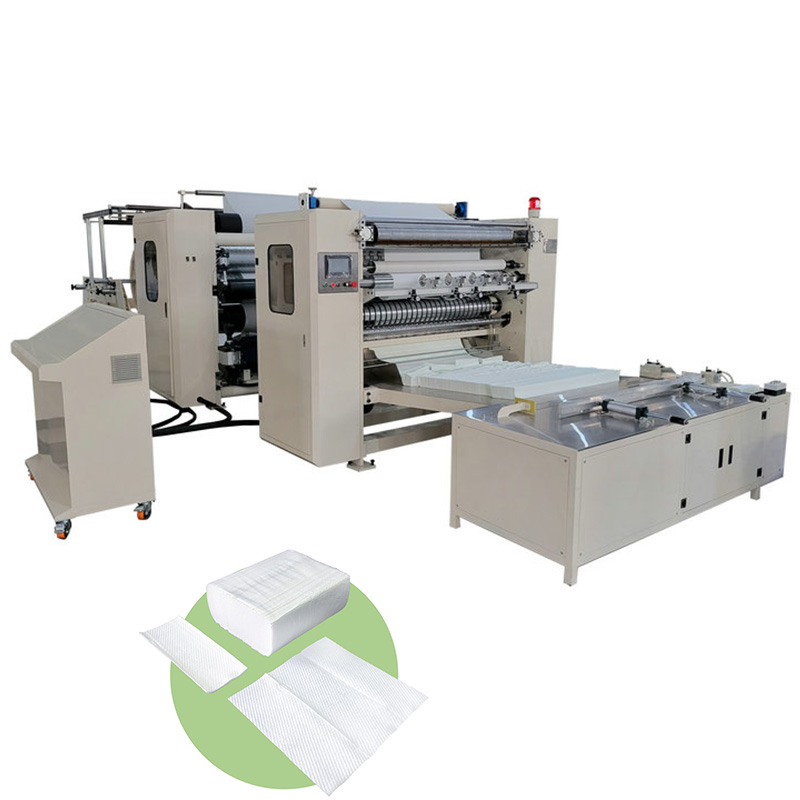

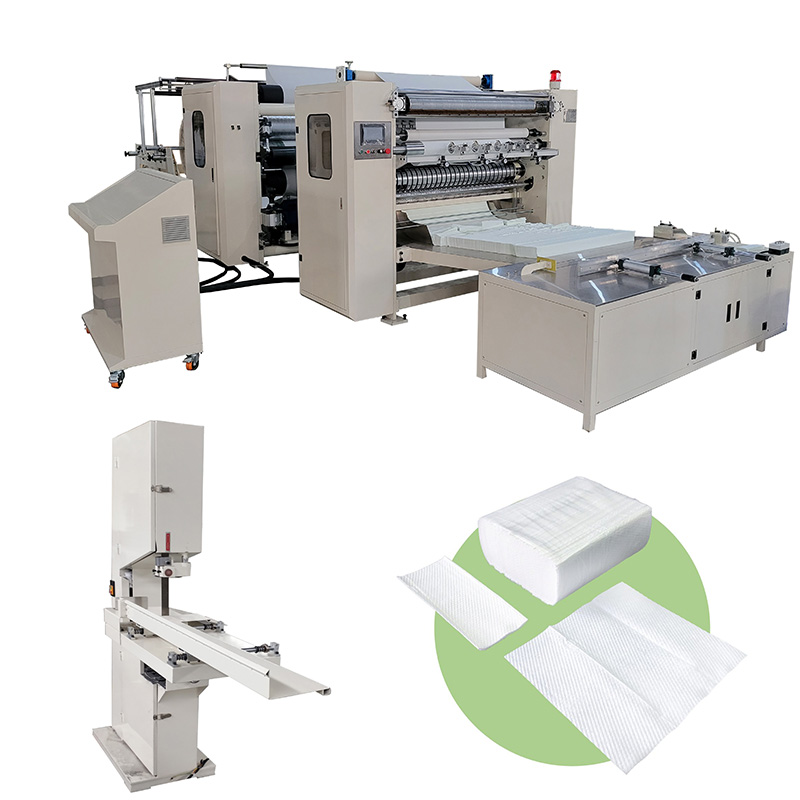

Simple operation glue lamination N fold hand towel paper making machine production line including 3 machines:
1. XY-BT-288N High Speed Glue Lamination N Fold Hand Towel Folding Machine
2. XY-AI-15 Semi-Automatic N Fold Hand Towel Bagging Machine
3. XY-AI-300 Semi-Automatic N Fold Hand Towel Cutting Machine
